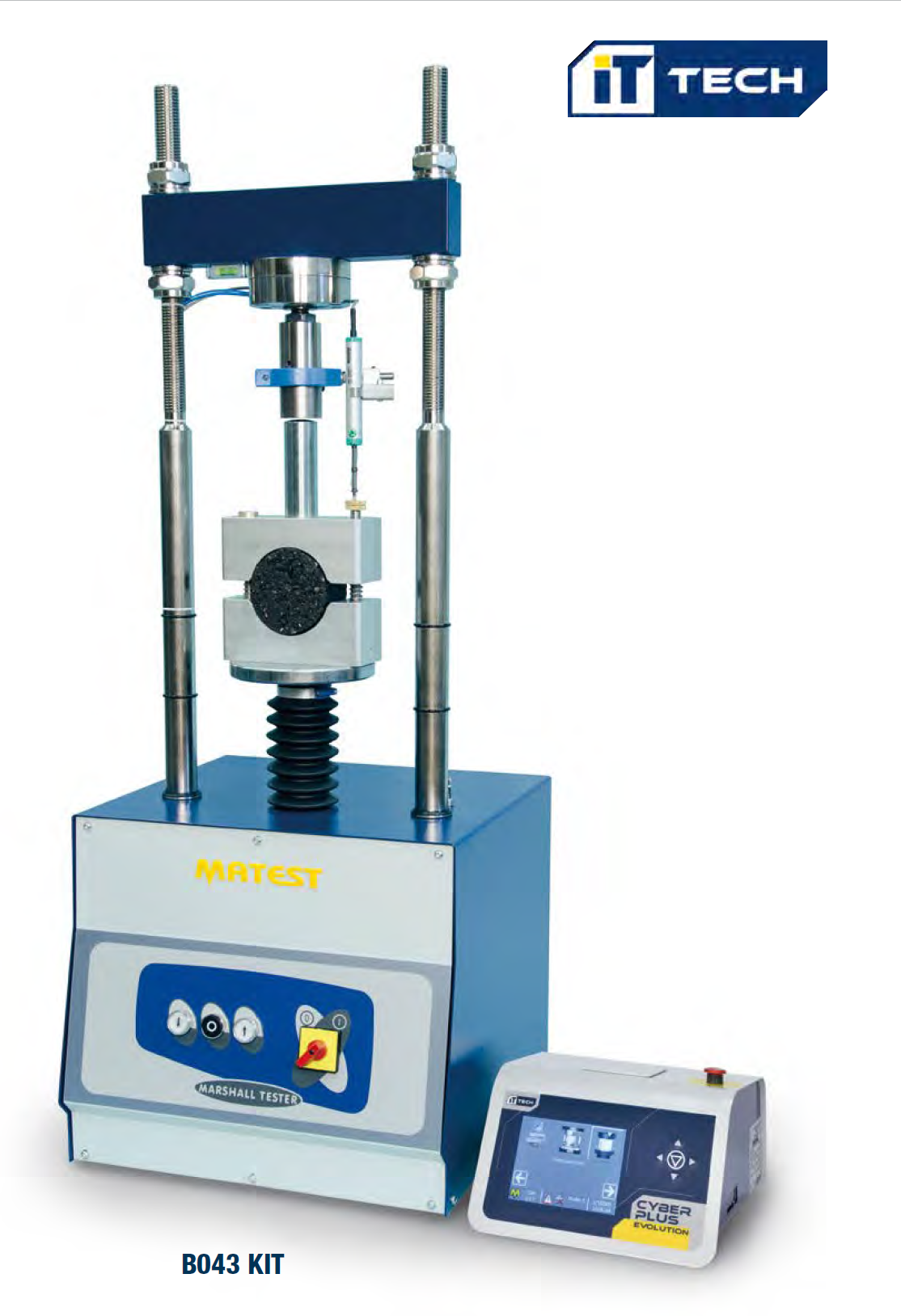

B043 KIT DIGITAL MARSHALL TESTER 50 KN CAPACITY

Category:

STANDARDS: EN 12697-34, 12697-23, 12697-12
ASTM D6927, D5581, D1559 | AASHTO T245
BS 598:107 | NF P98-251-2
The testing frame is the same as for mod. B042 KIT, but the load
is measured by an electric cell 50 kN capacity with high precision
strain transducers; the flow is measured by an electronic displacement
transducer 50 mm stroke and ± 0.1% linearity.
The Cyber-Plus Evolution 8 channels digital display unit with microprocessor
(technical details: see B044N-SET p. 132, Hardware
technical details: see p. 19) measures and displays at the same
time the stability in kN and the flow in mm with peak hold features,
with the possibility to transfer them to a PC and a printer through aRS232 port.
Supplied complete with Stability mould.
Power supply: 230V 1ph 50Hz 900W
Dimensions: 650x400x1100 mm
Weight: 120 kg approx.

ACCESSORIES

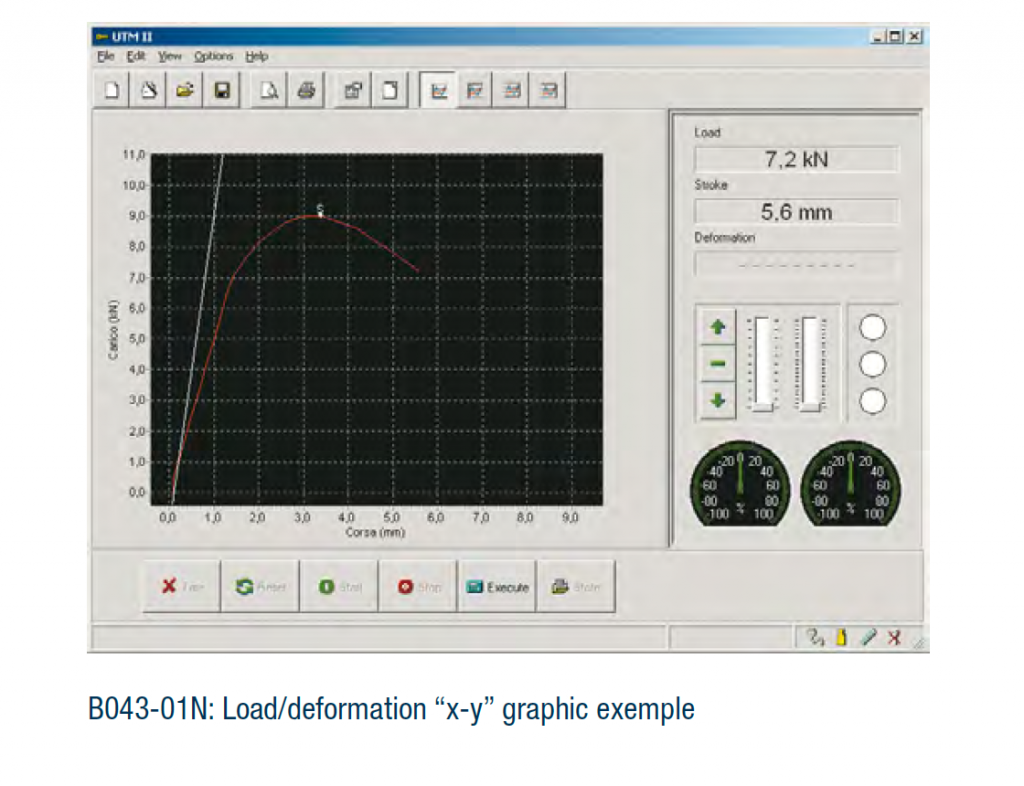

B043-01N
SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for MARSHALL test
Standards: EN 12697-34 | ASTM D6927, D5581, D1559
BS 598:107 | NF P98-251-2
Data processing program for “X-Y STABILITY/FLOW”
General description and technical details: see UTM2 p. 18

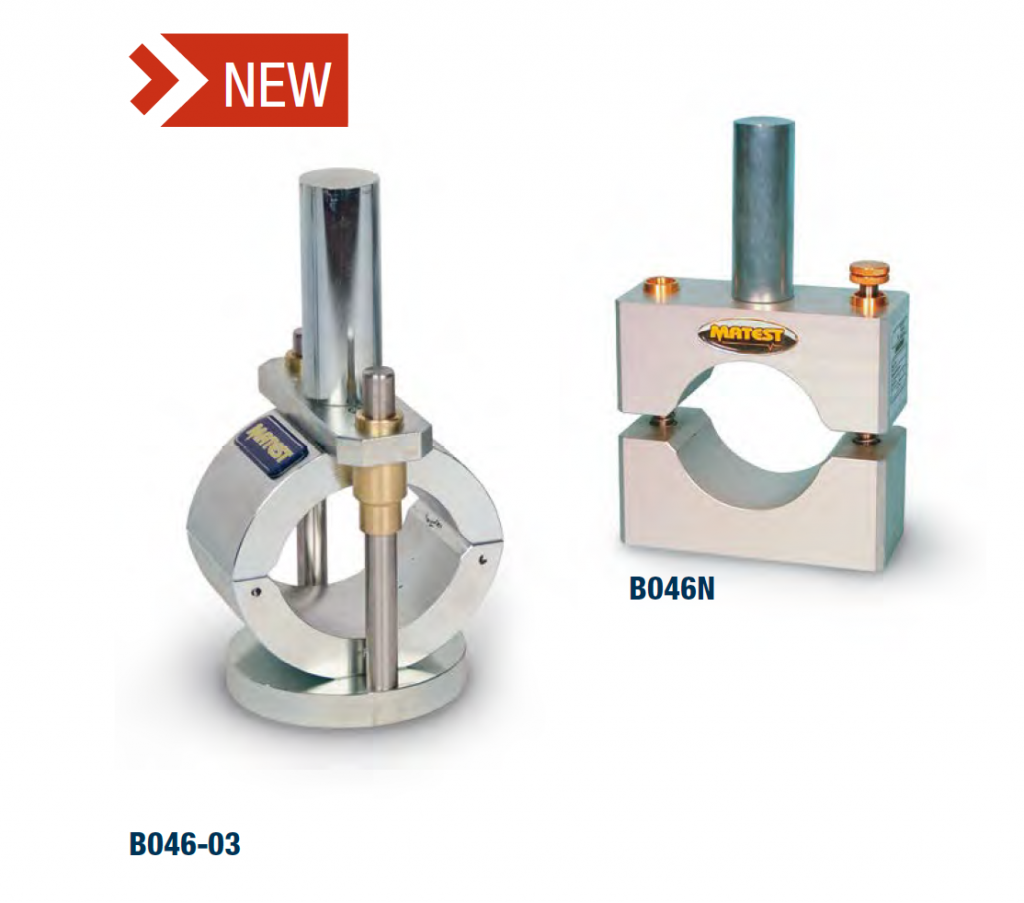

B046-03
STABILITY MOULD, steel made, for Ø 4″ (101.6 mm)
Specimens to ASTM D6927.
Alternative solution to B046N mould.
Weight 9 kg approx.

SPARE
B046N
STABILITY MOULD Ø 4″ (101.6 mm)
The aluminium made mould, is completely open in the front so the
introduction of the specimen is made easy as there is no disassembly
needed.
Weight: 6 kg approx.



Note: The Digital Marshall Tester B043KIT, completed by the
specific accessories (listed below) is suitable to perform
also the following tests:

DETERMINATION OF INDIRECT TENSILE STRENGTH
STANDARDS: EN 12697-23, EN 12697-12 | ASTM D6931
AASHTO T283

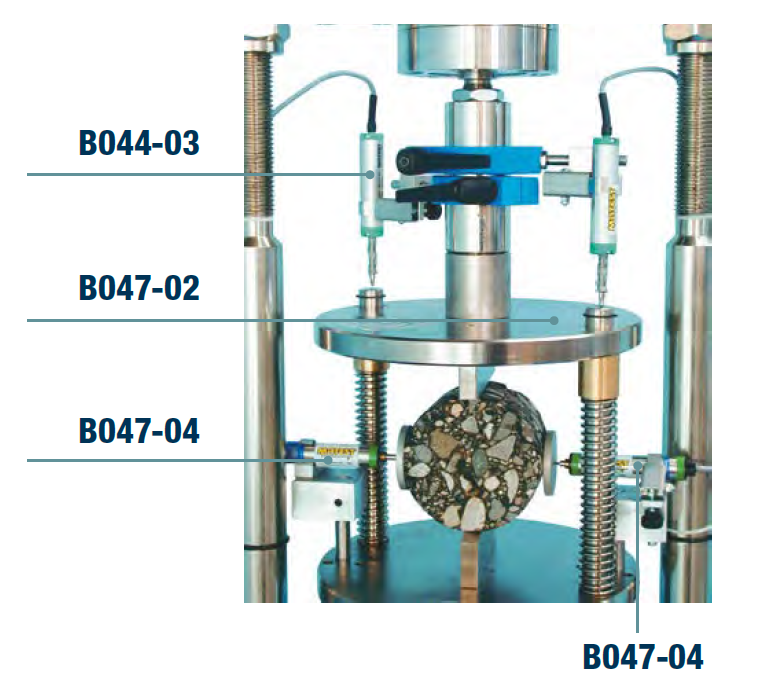

B047-02
TENSILE SPLITTING DEVICE FOR SAMPLE Ø 4” AND 6”
Used to measure the indirect tensile strength and the radial strain of
a Marshall specimen Ø 4″ and 6″, where a vertical load is applied.
Supplied complete with loading strips to test specimens having
Ø 4″ and 6″. Steel manufactured, plated against corrosion.
Dimensions: Ø 248×270 mm
Weight: 14 kg approx.
Alternative solution:
B047-02S TENSILE SPLITTING DEVICE for samples Ø 4″ and
6″ complete. Simple model not accepting the device
B047-04 for strain measurements.

ACCESORIES
B047-04 SET OF TWO LINEAR RESISTIVITY TRANSDUCERS,
stroke 10 mm, accuracy and linearity ± 0.3% to meet
CNR N.134. Complete with supports and accessories
for strain measurements.
B044-03 DISPLACEMENT TRANSDUCER, additional, 50 mm
stroke, for a double measurement of the vertical displacement
of the specimen during the tensile splitting
test. Complete with cable and connector. When used
with B043-02N software the average value of the two
transducers is given.
B043-02N SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for INDIRECT TENSILE STRENGTH
Standards: EN 12697-23, EN 12697-12 | ASTM D6931
AASHTO T283
General description and technical details:
see UTM2 p. 18
