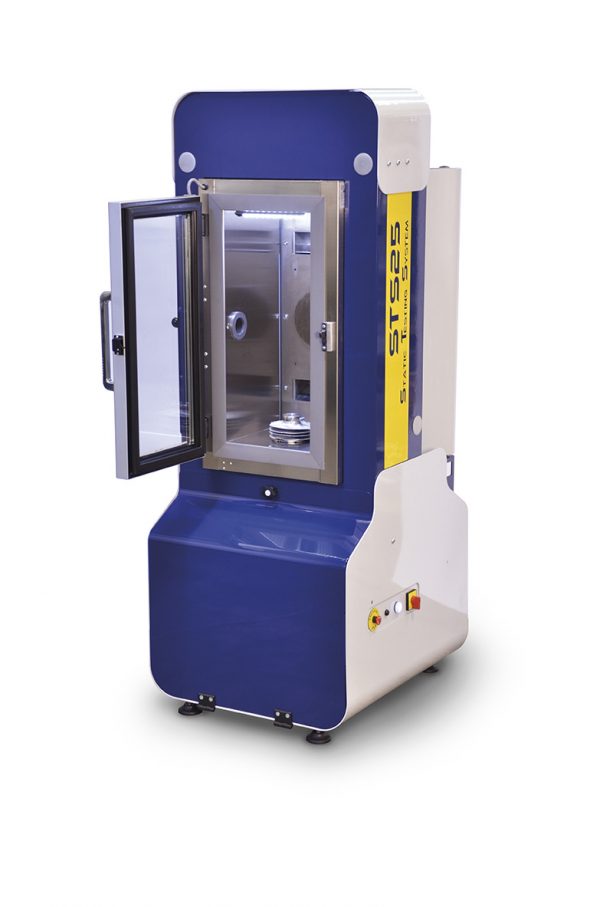

B225 STS-25 Static testing system

Category:

The most versatile testing machine in the market

The Pavetest 25kN Static Testing System (STS-25) is an electro-mechanical servo-controlled testing machine utilizing digital control of a high performance electro-mechanical actuator to provide accurate loading rates up to 50mm/minute, designed to perform a range of static tests, including: Overlay, SCB, DCT, TSRST and DT.T.
The STS-25 is underpinned by Pavetest’s leading edge CDAS digital controller, TestLab software and a full complement of accessories hardware and software in perfect unison.

The machine includes:

  • Rigid two column load frame
  • 25 kN electro-mechanical actuator (30 mm stroke)
  • 8 channel Control and Data Acquisition System (CDAS) &
  • TestLab software
  • Load cell (± 30 kN)
  • 30 mm actuator LVDT
