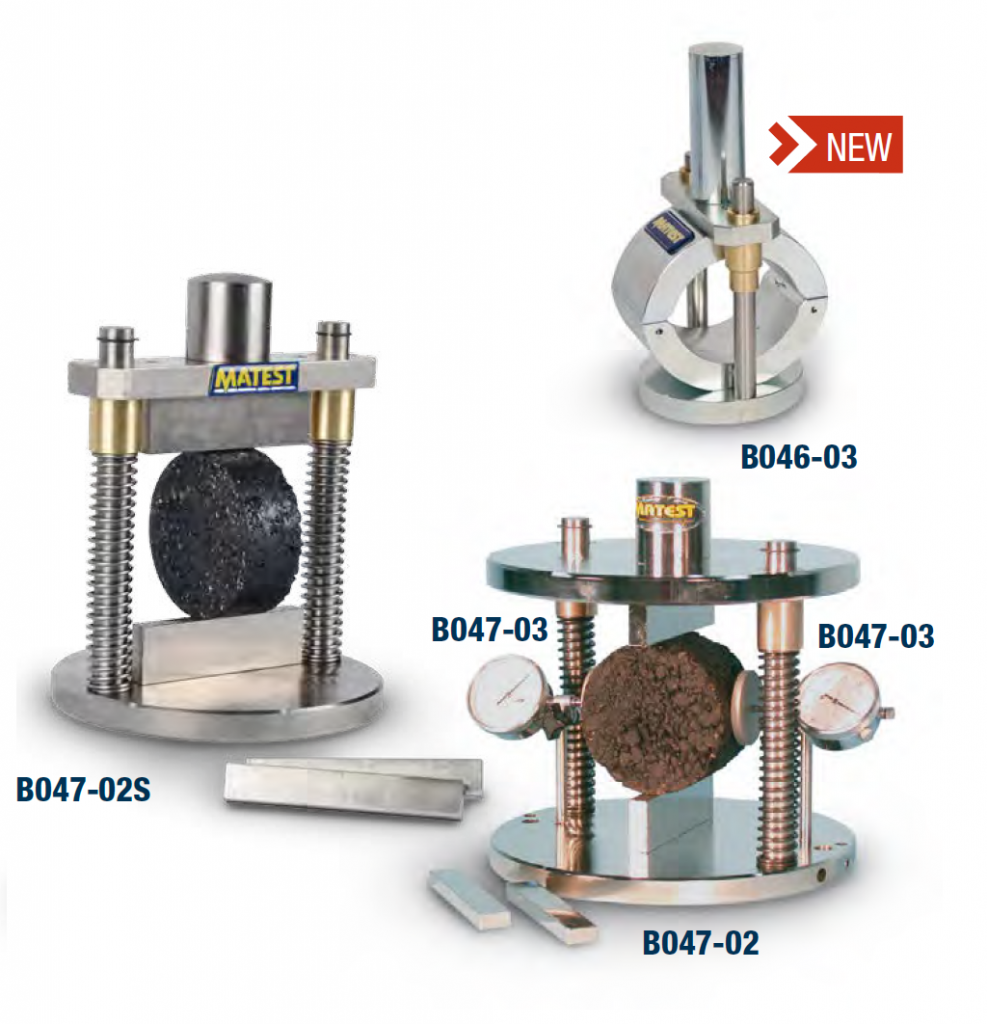

B047-02 TENSILE SPLITTING DEVICE

Category:

STANDARDS: EN 12697-23 | ASTM D6931 | AASHTO T283
Used to measure the splitting tensile strength and the radial strain
of a Marshall specimen Ø 4″ and 6″, where a vertical load is
applied. Supplied complete with loading strips to test specimens
having Ø 4″ and 6″. Steel manufactured, plated against corrosion.
Dimensions: Ø 248×270 mm – Weight: 14 kg approx.
Alternative solution:
B047-02S
TENSILE SPLITTING DEVICE for samples Ø 4″ and 6″ complete.
Simple model not accepting the device B047-03 for strain
measurements.

ACCESSORY
B047-03 SET OF TWO DIAL GAUGES 10 mm
stroke and 0.01 mm sens. complete
with adjustable supports for strain
measurements, to CNR N.134

SPARES
B046N
STABILITY MOULD, Ø 4″ (101.6 mm)
The mould, aluminium made, is completely open in the front and
the introduction of the specimen becomes very easy thus avoiding
disassembling operations. Weight: 6 kg approx.
B046-03
STABILITY MOULD, steel made, Ø 4″ (101.6 mm) to ASTM D6927.
Altenative solution to B046N mould.
Weight: 9 kg approx.
B047
FLOW METER
Mounted on top of the stability mould,
holding the dial gauge and
incorporating a stem-brake
keeping maximum deflection.
Weight: 500 g
B047-01
DIAL GAUGE
Stroke 10 mm,
div. 0.01 mm to be used
in conjunction with the
Flow Meter B047.
