STANDARDS: ASTM D6927, D5581, D1559 | AASHTO T245
BS 598:107 | NF P98-251-2
Manufactured with a rugged frame to bear strain and loads, easy to
use, it is designed to operate with the minimum of maintenance.
Platen rate is 50.8 mm/minute also maintained under load through
to an overpowered electric motor. The applied load is measured
by a precision proving ring 30 kN capacity incorporating a stem
brake holding the maximum reading and it is supplied with relevant
calibration certificate. The machine includes an electric device for
automatic stop when reaching the max capacity load of the proving
ring, in order to prevent any overload damage, limit switches stop
the platen at max and min excursions.
The unit is supplied complete with load ring 30 kN capacity,
stability mould, flow meter with dial gauge.
Power supply: 230V 1ph 50Hz 750W
Dimensions: 410x400x1110 mm
Weight: 110 kg approx.

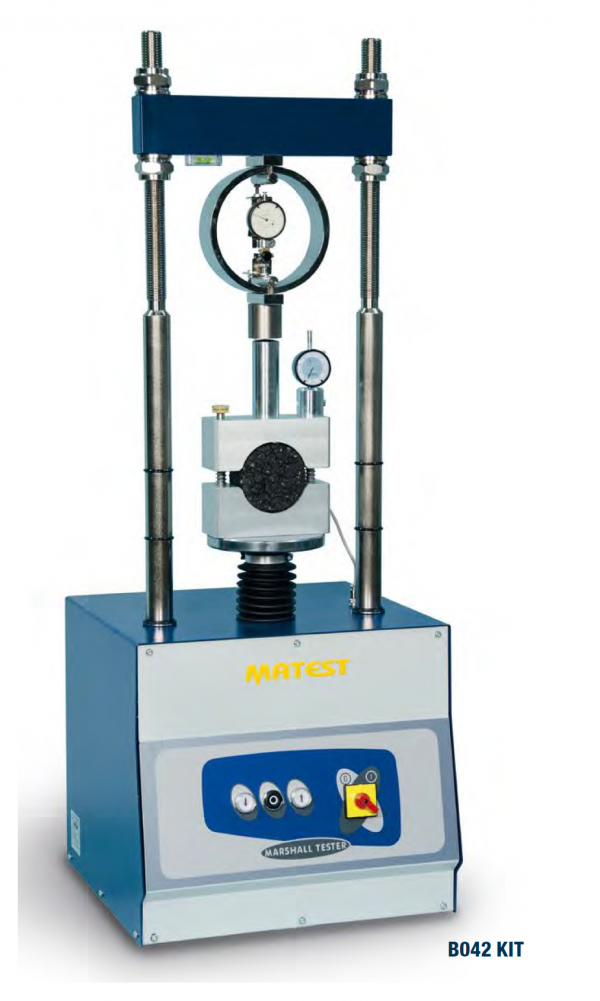

B042 KIT MARSHALL MECHANICAL 50 KN LOAD FRAME
