Matest has developed an Automated Core Drill (ACD) for fast, accurate cutting of cores from
cylinders, prisms and slabs prepared using Matest’s range of asphalt compaction machines;
GYROTRONIC-Gyratory Compactor, ASC-Asphalt Shear-box Compactor and field specimens for
subsequent testing using Matest/Pavetest’s range of leading edge testing systems.
MAIN FEATURES
Three selectable drill speeds.
Clear protective/splash screen conforming to CE
standards.
Ideal for coring prismatic specimens compacted in
Asphalt Shear-box Compactor (ASC).
Suitable to core cylindrical specimens compacted in
Gyratory compactor(s).
Includes water container/tray.
Adjustable specimen clamp eliminates specimen
movement during coring.
Three position fixture provides easy and accurate
specimen positioning.

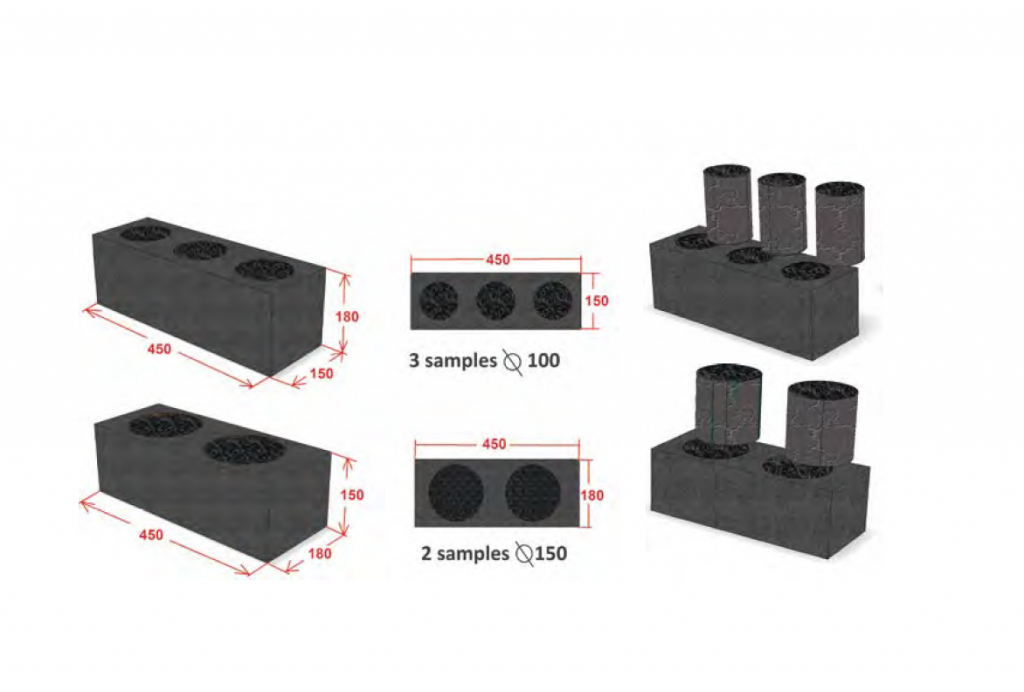

Three core supports at fixed spacing yields two or
three cores from one prism.
Optional cylindrical specimen jig.
SPECIFICATIONS
Drill Bit Diamond/tungsten alloy, laser welded.
Core diameter 100 mm or 150 mm.
For other core diameters, see the accessories.
Core height up to 40 cm.
Specimen sizes:
Cylindrical Sample: 160 mm x 70 mm – 400 mm (ØxH)
Prismatic Sample:
200-450 mm x 150-185 mm x 120-420 mm (LxDxH)
315-340 mm x 220-260 mm x 120-420 mm (LxDxH)
Dimensions: 60 cm (L) x 80 cm (D) x 140 cm (H)
Net weight: 85 kg
Power supply: 230V 10A 50Hz 1ph (540/1, 300/1, 800 rpm)
230V 10A 60Hz 1ph (560/1, 330/1, 850 rpm)
115V 20A 60Hz 1ph (560/1, 330/1, 850 rpm)
MODELS

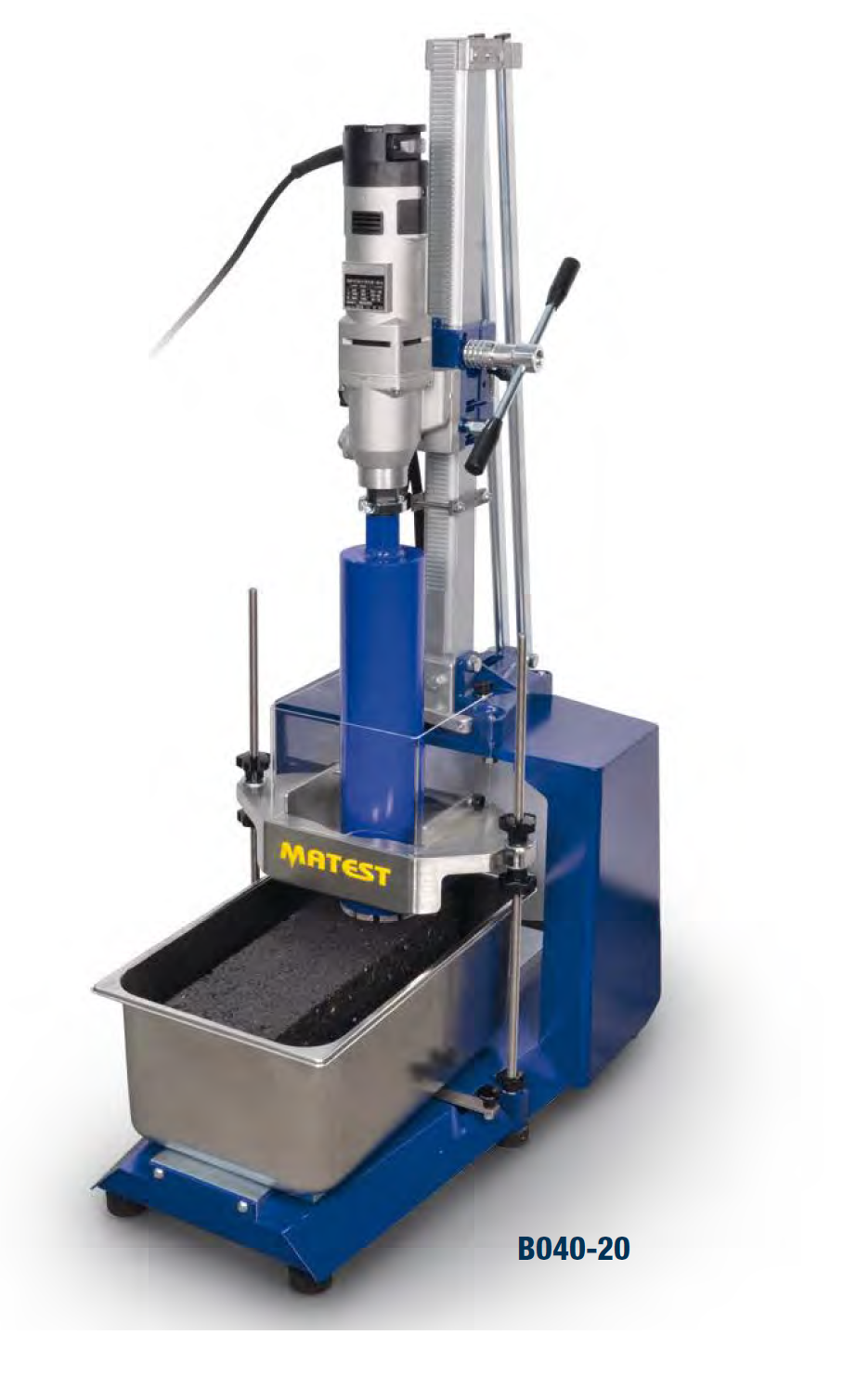

B040-20 Asphalt Core Drill (230V/50-60Hz) for prisms
B040-20Y Asphalt Core Drill (110V/60Hz) for prisms
B040-20
ACCESSORIES
C339-03 Ø 100 x 420 mm long drill bit (needed)
C339-04 Ø 150 x 420 mm long drill bit (needed)

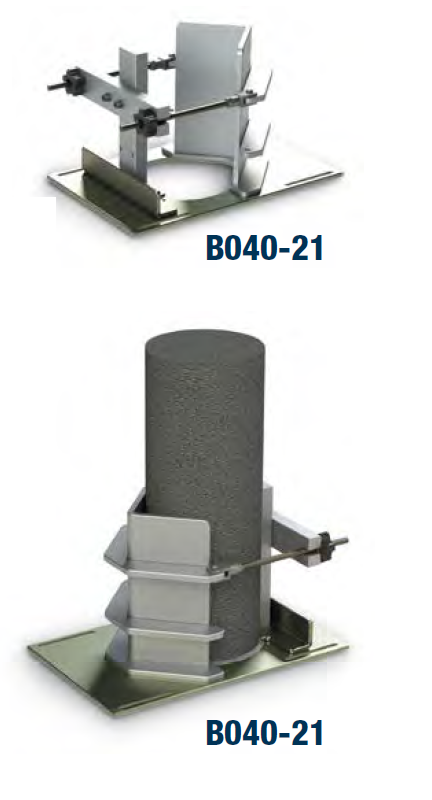

B040-21 Clamping cylindrical specimen jig to suit from 50
to 150 mm diameter specimens (needed)
B040-22 KIT DCT specimen. It includes:
B040-22 DCT specimens drilling jig
B040-33 Ø 25 x 420 mm long drill bit
B040-23 KIT Transversal coring. It includes:
B040-23 Transversal coring jig
C339-02 Ø 75 x 420 mm long drill bit
B040-30 Ø 38 x 420 mm long drill bit
C339-01 Ø 50 x 420 mm long drill bit
B040-31 Ø 42 x 420 mm long drill bit
B040-32 Ø 55 x 420 mm long drill bit
C346 Core Extractor Ø 50 mm
C346-01 Core Extractor Ø 75 mm
C346-02 Core Extractor Ø 100 mm
C346-03 Core Extractor Ø 150 mm
