WATER BATHS FOR MARSHALL SPECIMENS

Category:

STANDARDS: EN 12697-34 | ASTM D6927, D1559, D5581 | AASHTO T245
Used to maintain in water Marshall specimens at constant temperature
of 60 °C ± 1 °C and asphalt specimens at 37.8 °C ± 1 °C.
These baths are also ideal for general laboratory use.

MODELS

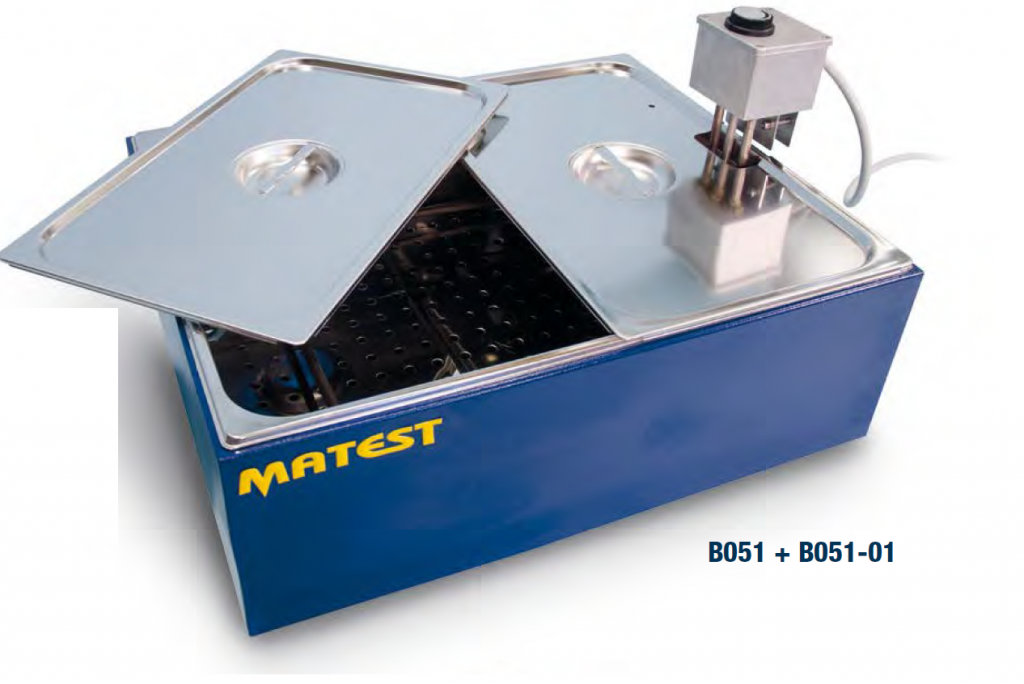

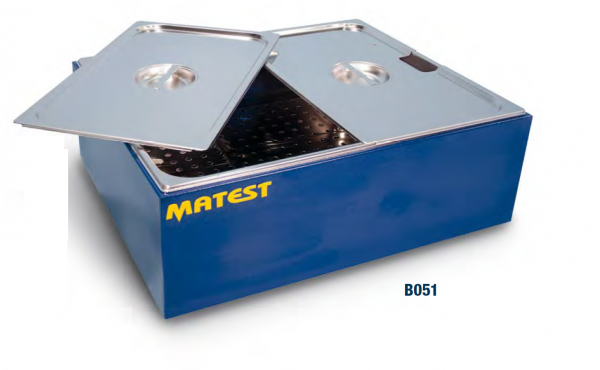

B051
MARSHALL WATER BATH
The internal tank and cover are stainless steel made, outside box is
of painted steel sheet with wool insulation. The specimens are held
by a stainless steel perforated shelf spaced from the bottom.
The bath has a capacity of 46 litres and is designed to hold up to
20 Marshall specimens.
Temperature range: from ambient to 95 °C.
Inside dimensions: 615x505x150 mm
Overall dimensions: 660x540x230 mm
The bath is supplied without thermostat and heating element to be
ordered separately (see accessories).
Weight: 18 kg approx.

NEEDED ACCESSORY for the B051 Bath

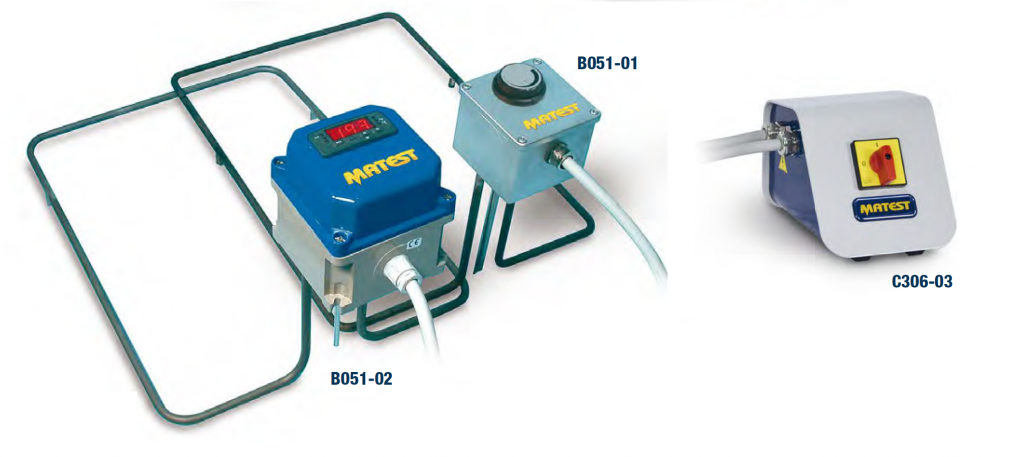

B051-01
THERMOSTAT ANALOGIC Heating System, complete with immersion
heating element.
Power supply: 230V 1ph 50-60Hz 1500W
In alternative:
B051-02
THERMOSTAT DIGITAL Heating System, complete with immersion
heating element. The digital system ensures a better temperature
control of the water at 60 ± 1 °C or 37.8 ± 1 °C as requested by
Standards.
Power supply: 230V 1ph 50-60Hz 1500W
C306-03
SEPARATE CONTROL PANEL, complete with switch and electrical
protections to get B051-01 and B051-02 thermostats to CE safety
Directive.
