B044N-SET CYBER-PLUS 8 EVOLUTION TOUCH-SCREEN

Category:

Developed for the implementation and upgrading of any type of
existing machines (even not manufactured by Matest) applicable to:
– Marshall mechanical load frame mod. B042 KIT.
– CBR/Marshall 3 speeds load frame mod. S213-05N.
– CBR loading machine motorized mod. S211 KIT.
Suitable to perform the following tests:
– MARSHALL: EN 12697-34 | ASTM D6927, D5581, D1559
CNR N. 30 | NF P98-251-2 | BS 598 :107
AASHTO T245
– INDIRECT TENSILE TEST: EN 12697-23, EN 12697-12
ASTM D6931, D4123 | AASHTO T283
– DETERMINATION OF THE WATER SENSIBILITY OF BITUMINOUS
SPECIMENS: EN 12697-12
– CBR TEST: EN 13286-47 | CNR | UNI 10009 | AASHTO T193
ASTM D1883 | BS 1377:4 | NF P94-078.
– UNCONFINED TEST: ASTM D2166

HARDWARE SPECIFICATIONS
– 8 indipendent channels available for the load cells or potentiometrics
transducers for load, or displacement measurements;
– Stabilized power supply of the analogical channels:
5 Vcc and 3 Vcc;
– Analogue input: ± 20 mV and ± 5 V;
– Nominal resolution: 24 bit;
– Acquisition up to 200 readings for each channel;
– Safety discrete On/off output;
– Graphic display ¼ VGA colour Touch-Screen;
– Time and calendar system.
FIRMWARE SPECIFICATIONS

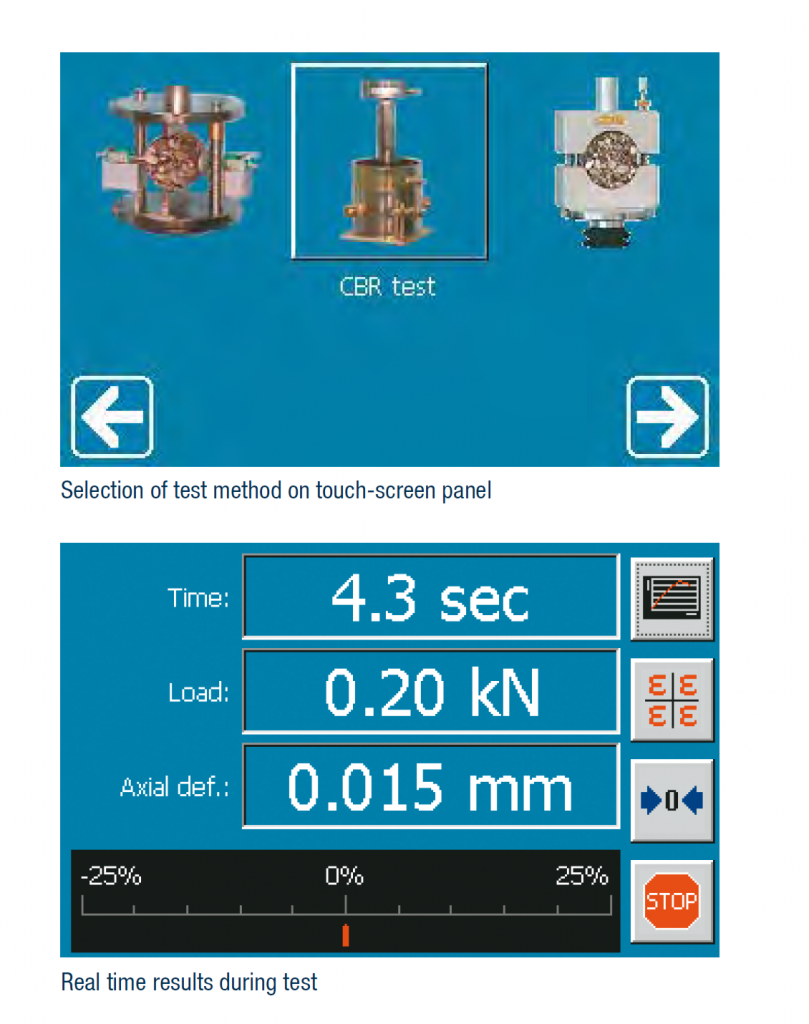

– Instant visualization of the load measured by an extensometric
cell.
– Instant visualization of the deformation measured by 4 linear
displacement transducers.

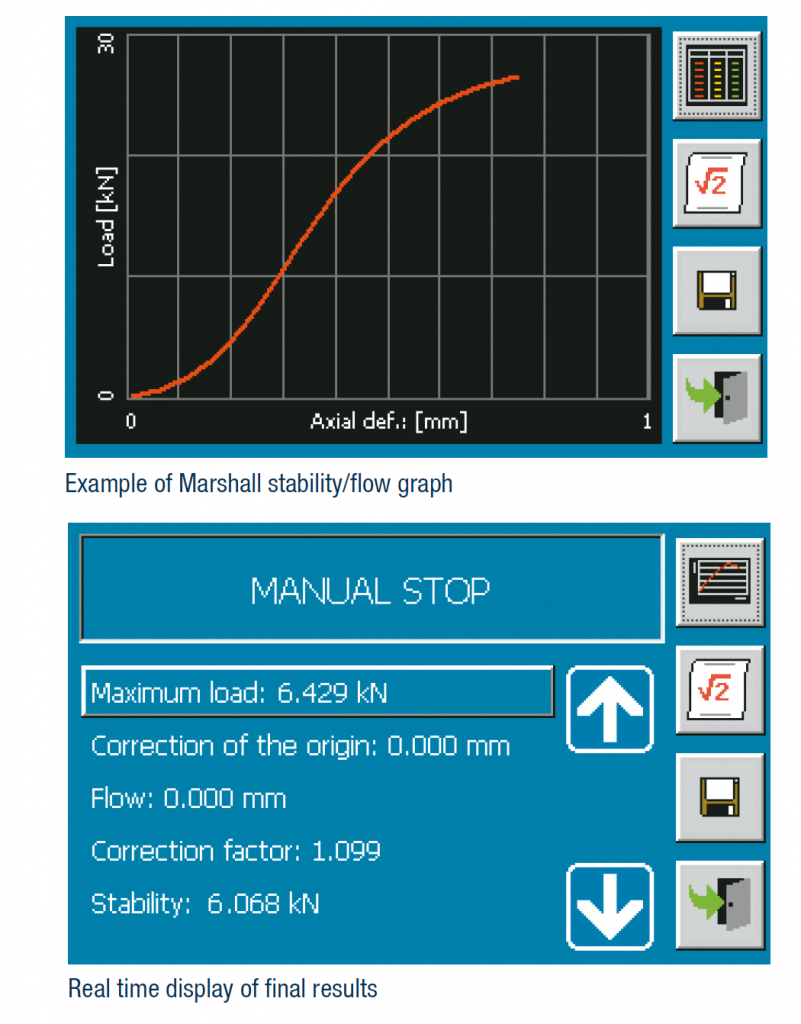

– Visualization of the graphic of the test.

– Visualization of date and time.
– Semi-automatic configuration and calibration of all transducers
connected.
– 20 steps lining that can be set by the enduser.
– Automatic correction of the axis origin for CBR/Marshall tests.
– Setting of all the parameters for test: alarms, zero threshold, endtest
percentage, calculation parameters.
– Time/date and language selection (Italian, English, French,
German, Spanish, Polish).
– Unlimited file for each type of test
– Symbols of pushbuttons functions
– Informative messages (planning alarms, load cell and strain transducer
setting, etc.)
– Printing of the results on the incorporated thermal graphic printer
(accessory C127N). Transfer and management via Ethernet of the
filed data or real-time.
Hardware technical details: see p. 19
132

MAIN FEATURES
Acquisition and data processing system up to 8

analogical/digital channels.
Remote control through PC and UTM2 software.
Graphic display 1/4 VGA color Touch-Screen.
Instant display of load and deformation.
Automatic correction of the axis origin and automatic
calculation of all the results.
Safety switch-off at max reached load and/or
deformation.

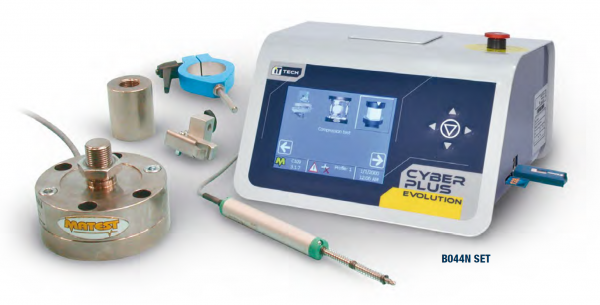

B044N-SET is composed of:
B044N
CYBER-PLUS 8 EVOLUTION
Unit for data acquisition.
Power supply: 230V 1F 50-60Hz.
S337-34
LOAD CELL
50kN capacity, with high precision strain transducers, complete
with cable and connector.
S336-14
LINEAR DISPLACEMENT TRANSDUCER
50 mm stroke, independent linearity ± 0.1% complete with cable
and connector.
All necessary accessories for fixing the load cell and transducer to
the test machine, are provided.
The system is calibrated ready to use and COMPLETE with a calibration
certificate.
Every item can be ordered separately.
ACCESSORIES
B043-01N
SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for MARSHALL test
Data processing program for X-Y STABILITY/FLOW
STANDARDS: EN 12697-34 | ASTM D6927, D5581, D1559
BS 598:107 | NF P98-251-2

B043-02N
SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for INDIRECT TENSILE STRENGTH
STANDARDS: EN 12697-23 | ASTM D6931 | AASHTO T283

S218N
SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for CBR Test
STANDARDS: EN 13286-47 | UNI CNR 10009 | ASTM D1883
BS 1377:4 | NF P94-078 | AASHTO T193
S218-01N
SOFTWARE UTM2 (Universal Testing Machine 2)
Licence for UNCONFINED Test
STANDARDS: ASTM D2166
Description and technical details of Software UTM2: see p. 18
H009-01
PERSONAL COMPUTER, complete with LCD monitor 22”, keyboard,
mouse, connection cables, installation and setting up of the purchased
software.
C128
LASER PRINTER for test certificate and graphics printing with direct
connection to CYBER-PLUS 8.
C127N On board graphic printer on thermo-paper
