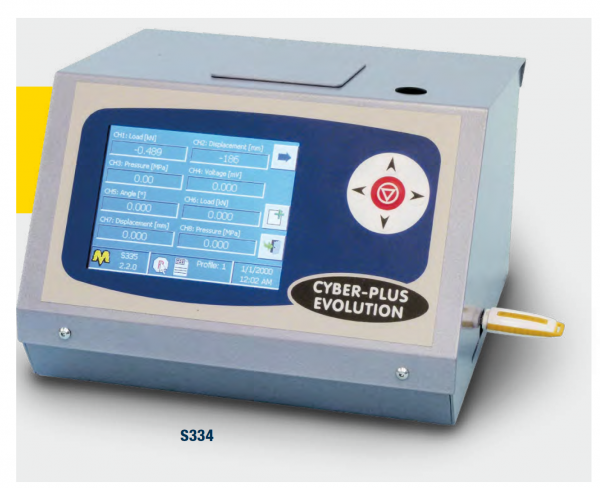

This unit is designed and produced to satisfy the requirements of all laboratories, from the small, up to the most complex.
8 channels acquisition and processing data system (expandable to 16 channels, see accessory mod. S334-01), colour “Touch Screen” display,
it automatically performs test and data processing. Directly connected to PC via USB, it prints the test certificate. Equipped with slots for external
Pendrive or SD Card infinite memory supports. Hardware technical details at p. 18.
One or more cyber-plus (8 or 16 ch) can be connected to create a network multichannel system. A flexible, customizable and infinitely expandable
Data collection is completely automatic, improving considerably the productivity and cost effectiveness.
Windows based program with menu driven command selection, is straightforward and easy to follow and does not require a skilled operator.
The system can be used for:
– Oedometer (consolidation ) tests
– Direct and residual shear tests (cycle test)
– Triaxial UU, CU, CD tests
– Automatic data acquisition and processing systems permit the utilization
of different channels that can be independently calibrated,
zeroed and set up in order to visualize the units being measured;
– The appliances contain a modern high speed – high performing
24 bit conversion device;
– The appliances permit to acquire the signals coming from different
types of transducers:
– Strain Gauge Bridge and Potentiometric Wide input range available
for the electrical signal:
± 40 mV … ± 3 V
– User interface:
Full-color display 320×340 pixel – Touchscreen
– Data storage:
The data test can be stored directly into the appliance on a flash
memory and be transferred to the PC at the end of the test by
USB pendrive or SD card
– Every channel can be set with different sampling modes (linear
form, quadratic form, logarithmic form, etc.). The sampling
process can be executed with different frequencies: from 50 ms
– The calibration data are protected by password and
they can be transferred to external supports archives.
Power supply: 230V 1ph 50Hz
Dimensions: 260x260x155 mm
Weight: 5 kg approx.
S334-01 8-CHANNEL INTERNAL MODULE, for system expansion
to 16 channels.
S334-11 NETWORK CONNECTION RJ45 cable.
S334-12 SWITCH to connect from 2 up to 7 Cyber-Plus
(mod. S334) to the Ethernet network.
