S335-10N SOFTWARE TRIAXLAB CONNECT & REPORTS

Category:

STANDARDS: NF P94-070, P94-074 | ASTM D2850-03a, D4767-95, D7181-11 | BS 1377:8
TriaxLab Connect is the new acquisition software for Matest triaxial systems. This software allows the user to:
– Configure the acquisition parameters necessary to conduct the test

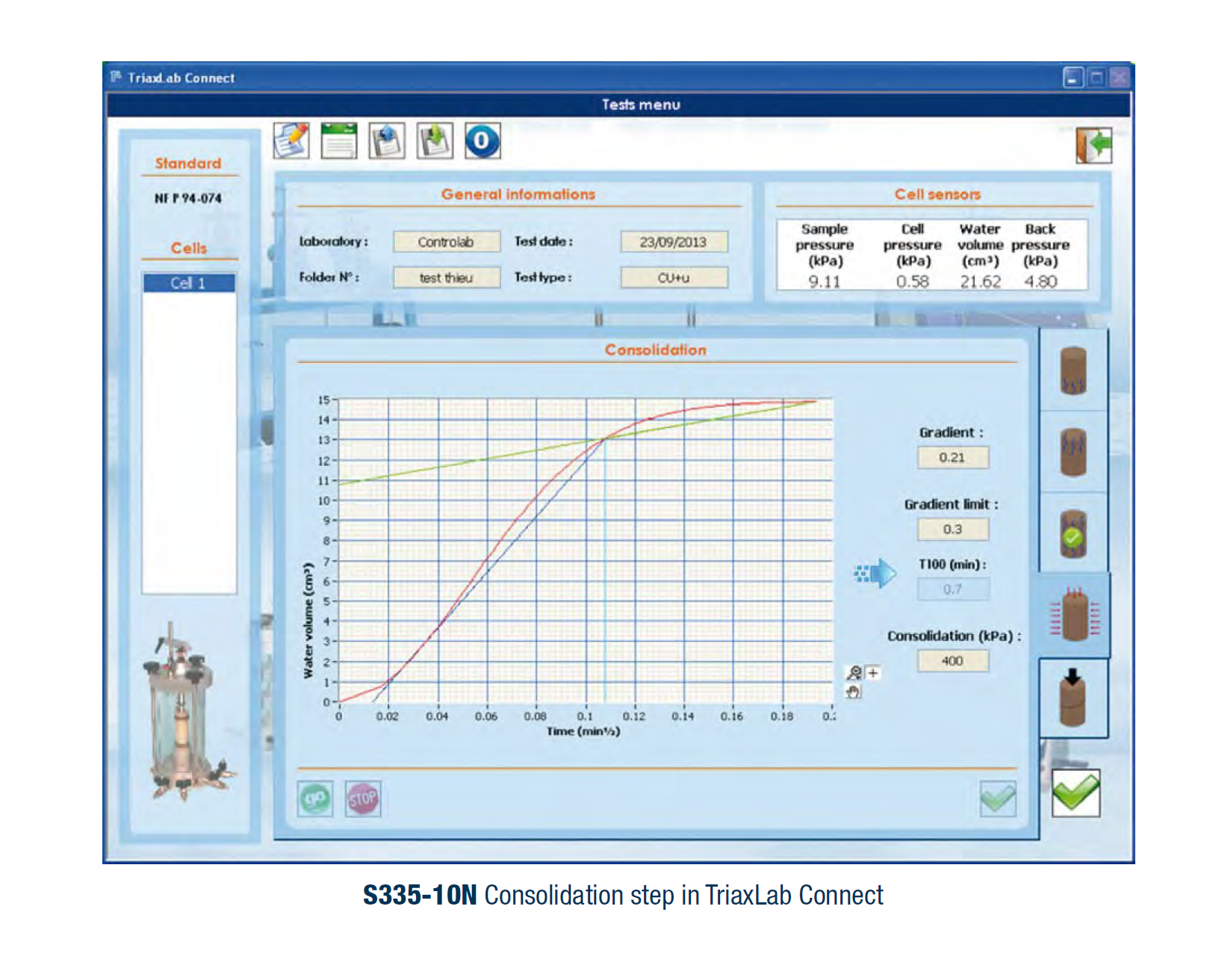

– Perform all of the 3 steps of a triaxial test (saturation, consolidation and shearing)
– Calculate the t100 value used for the shearing speed
– Record data for each calculation step
– Save test data and test parameters
Hence, the files created by this software can be used in TriaxLab Reports to generate a report by selecting the dedicated Standards.
Both Connect and Reports programs can be used in a very simple and intuitive way. Thanks to a suitable window, TriaxLab Reports gives the
opportunity to perform calculations for all triaxial tests (UU, CU+u or CD).

The software provides the user with a simple and flexible graphical interface, giving the possibility to view, edit and print all the parameters
involved in triaxial tests.
Laboratory coefficients of:
– Saturation
– Consolidation
– Shearing
CHARTS:
– Water Volume (cm3) / Square-root Time (min)
– Press Load (kN) / Press Displacement (mm)
– Deviator Stress (kPa) / Axial Strain (%)
– Pore Pressure (kPa) / Axial Strain (%)
– Shear Stress (kPa) / Normal Stress (kPa)
– Volume Deformation (%) / Axial Strain (%)
– Stress t’ (kPa) / Stress s’ (kPa)
– Effective Principal Stress Ratio / Axial Strain (%)
PC specification:
– Operating system: Windows XP or more recent

RECOMMENDED TYPICAL CONFIGURATION OF THE TRIAXIAL SYSTEM WITH ONE CELL
IN ANALOGUE, DIGITAL AND DIGITAL WITH SUBMERSIBLE LOAD CELL VERSIONS









































































































RECOMMENDED TYPICAL CONFIGURATION OF THE TRIAXIAL SYSTEM WITH THREE CELL
IN ANALOGUE, DIGITAL AND DIGITAL WITH SUBMERSIBLE LOAD CELL VERSIONS
