STANDARDS: ASTM G57 | BS 1377:3
Used for ground water researches even to great depths, gravel
deposit evaluation, geological surveys for the construction of roads,
pipelines etc., study and prevention of landslides.

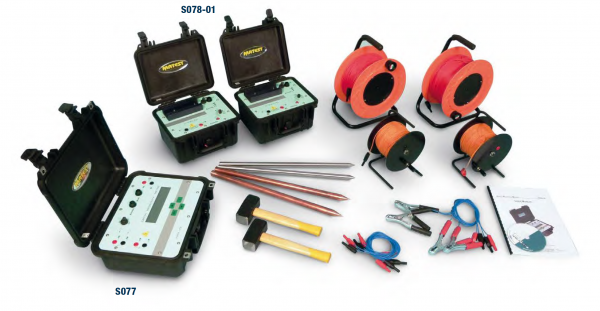

The system consists of:
Resisitivity measuring instrument with Software
Dimensions: 210x170x90 mm
Weight: 2 kg
2 potential copper electrodes
2 current electrodes
2 cable reels with 300 m of cable
2 cable reels with 100 m of cable
2 hammers, set of standard accessories
S078-01 RECHARGEABLE ACCUMULATOR, TWO PIECES
Energy source for geoelectrical surveys (in alternative to
dry batteries or generators).
Dimensions: 35x25x24 cm
Weight: 6 kg approx.
