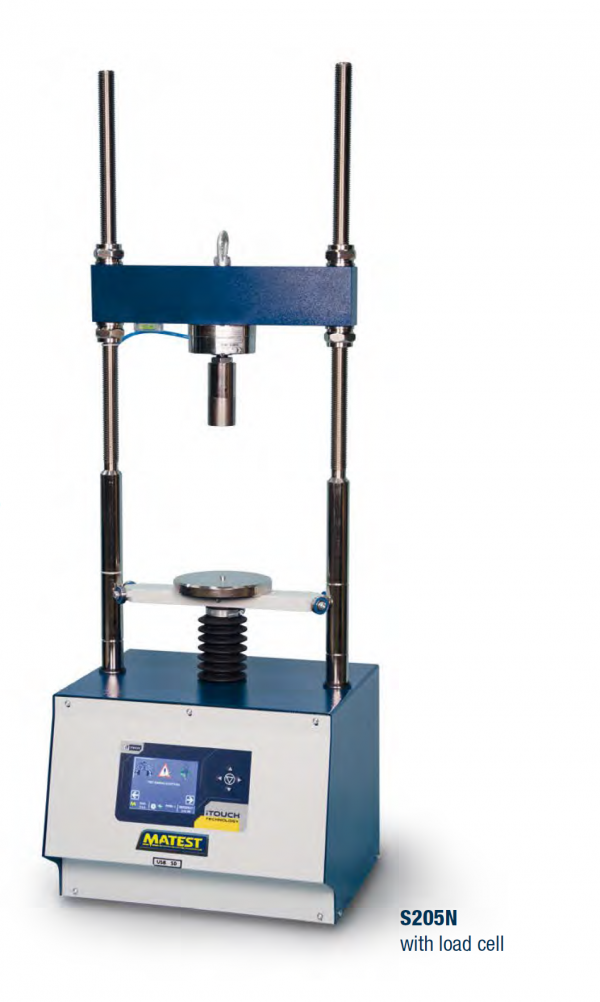

S205N UNITRONIC 50 KN UNIVERSAL MULTIPURPOSE TOUCH-SCREEN FRAME

Category:

COMPRESSION/FLEXURAL AND TENSILE FRAME FOR:
COMPRESSION / FLEXURAL TESTS, 50 kN MAX. CAPACITY LOAD
TENSILE TESTS, 25 kN MAX. CAPACITY LOAD (see mod. S205-05N)
WITH AUTOMATIC LOAD OR DISPLACEMENT/DEFORMATION CONTROL, for testing:
Cement / Mortar
Concrete
Rock and stones
Clay blocks
Metal, plastic, wires, ropes, textiles, papers, adhesives for tiles
Asphalt
Soil

Unitronic technical details and aditional specific tests are described at p. 500

SPECIFIC APPLICATIONS ON CEMENT AND MORTAR:

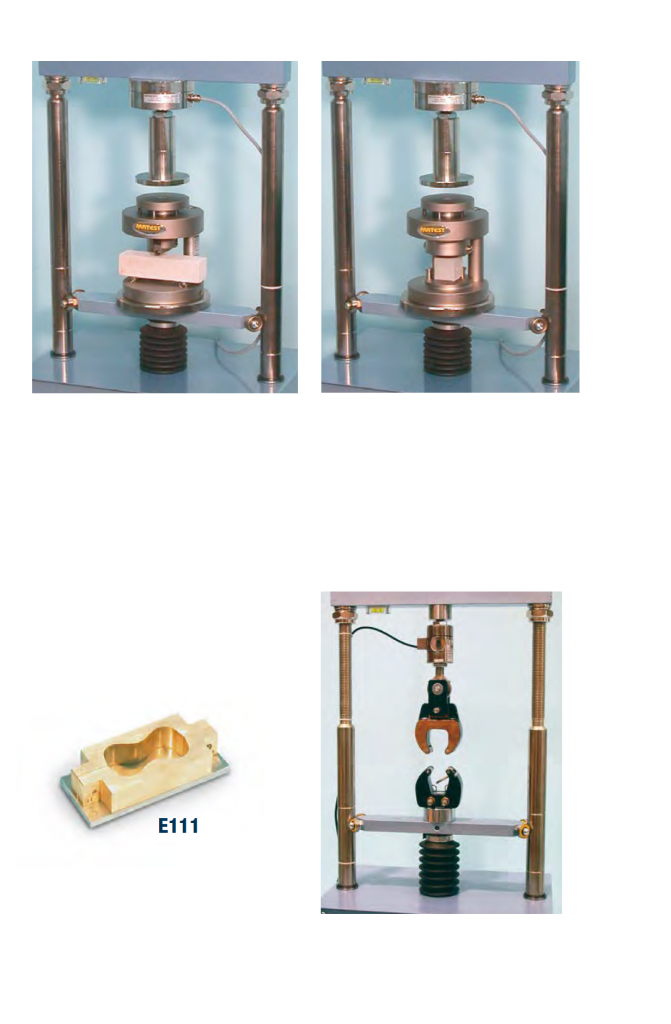

FLEXURAL TEST ON MORTAR PRISMS
40X40X160 MM
STANDARDS: EN 196-1 | ASTM C348
NEEDED ACCESSORIES
S337-32 Strain gauge load cell 10 kN capacity.
S212-05 Loading piston.
E172-01 Flexure EN device for 40x40x160 mm specimens.
(available also to ASTM, see p. 428)
E164N Software for flexural tests.

COMPRESSION TEST ON MORTAR SPECIMENS
(50kN max. load)
STANDARDS: EN 196-1 | EN 1015-11 | ASTM C109, C349
NEEDED ACCESSORIES
S337-34 Strain gauge load cell 50 kN capacity.
S212-05 Loading piston.
E170 Compression device on portion of 40x40x160 mm
specimens.
(devices for different specimens described at p. 428)
E163N Software for compression tests.

TENSILE TEST ON MORTAR BRIQUETTES “8”
SHAPED
STANDARDS: ASTM C190, C307 | AASHTO T132
NEEDED ACCESSORIES
S205-05N Unitronic Compression / Tensile
S337-32 Tensile/Compression strain load cell 10 kN capacity
S205-07 Tensile jaws “8” shaped for mortar briquette
S205-08N Software for tensile test
E111 Briquette mould
(see p. 408)

S205-05N
UNITRONIC COMPRESSION 50 KN|TENSILE 25 KN
The Unitronic frame S205N is modified and improved to perform
also tensile tests with max. capacity of 25 kN.
