STANDARDS: ASTM D422 / AASHTO T88
This complete set is used to determine the quantitative size distribution
of very fine particle in soils such as clay and silt.

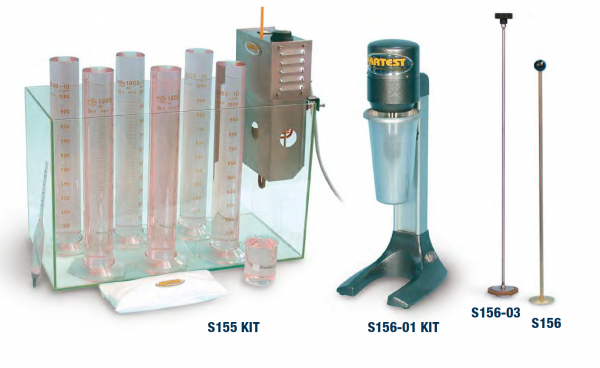

S155 KIT The complete set comprises:
S155-01 Hydrometer jar, 1000 ml capacity (6 pieces provided
with the kit)
V172 Soil hydrometer, 151H, range 0.995 to 1.038 g/ml
with div. 0.001
S155-04 Glass tank, dimensions: 600x300x380 mm
S155-09 Heater, professional type, complete with thermostat,
cooling coil, water circulating unit.
230V 1ph 50-60Hz 1000W
S155-10 Thermometer, range 0 – 50 °C, subdiv. 0.5 °C.
V104-03 Beaker, pyrex, 250 ml capacity
V300-23 Sodium Hexametaphosphate, 1000 g
S156-01 KIT High speed stirrer, 10.000 rpm, complete with cup,
paddle, anti-splash baffle, for dispersing soil particles
in water. 230V 1ph 50-60Hz
Total weight: 60 kg approx.
ALTERNATIVE:
S155S KIT
PARTICLE SIZE ANALYSIS OF SOIL
Same as S155 KIT but:
S155-09S HEATER simple type, complete with thermostat and
water circulating unit but without cooling coil
(see accessories S155-08). 230V 1ph 50-60Hz
ACCESSORIES
V172-02 SOIL HYDROMETER 152H, range -5 to 60 g/l
(alternative to mod. V172)
S155-02 BUNG, rubber, for the cylinder S155-01
S155-08 COOLING COIL for S155-09S
S155-11 NOMOGRAPHIC CHART, for stoke’s law determination.
S156 STIRRER, manual, for cylinders 1000 ml capacity
mod. S155-01
C306-03 SEPARATE CONTROL PANEL, complete with on/off
switch and electric protections, to get S155-09 heater to
CE Safety Directive.
ACCESSORIES according to NF P94-057 Standard
S155-03 HYDROMETER JAR, 2500 ml capacity,
85 ± 5 mm Ø, graduated at 500, 1500, 2000 ml.
S156-03 STIRRER MANUAL, 600 mm long for cylinders
2500 ml capacity, mod. S155-03.
V172-03 SOIL HYDROMETER 0.995 to 1030 g/ml.
SPARES for S156-01 KIT Stirrer
S156-11 Anti-splash baffle
S156-12 Paddle
S156-13 Cup (beaker)
