MIXERS 20 AND 30 LITRES CAPACITY

Category:

These large capacity mixers have been designed to mix bituminous samples for
compaction tests, Marshall and tensile splitting test and for other tests where
uniformity is required. Thanks to the planetary action this mixer ensures a complete
and uniform mixing. The machine is provided with a variable speed drive
allowing to set a wide range of speeds:
– from 20 to 130 rpm for the planetary action
– from 60 to 390 rpm for the revolving action
The stainless steel protection grid can be lifted to inspect the bowl, and in this
case the motor automatically turns off to prevent accidents to CE safety Directive.
A timer allows to select the mixing time or the continuous mixing.

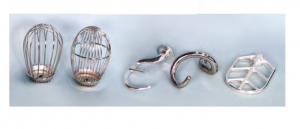

The mixer is supplied complete with stainless steel bowl, but without whisk
beater, without coupling and without electric heater that must be ordered

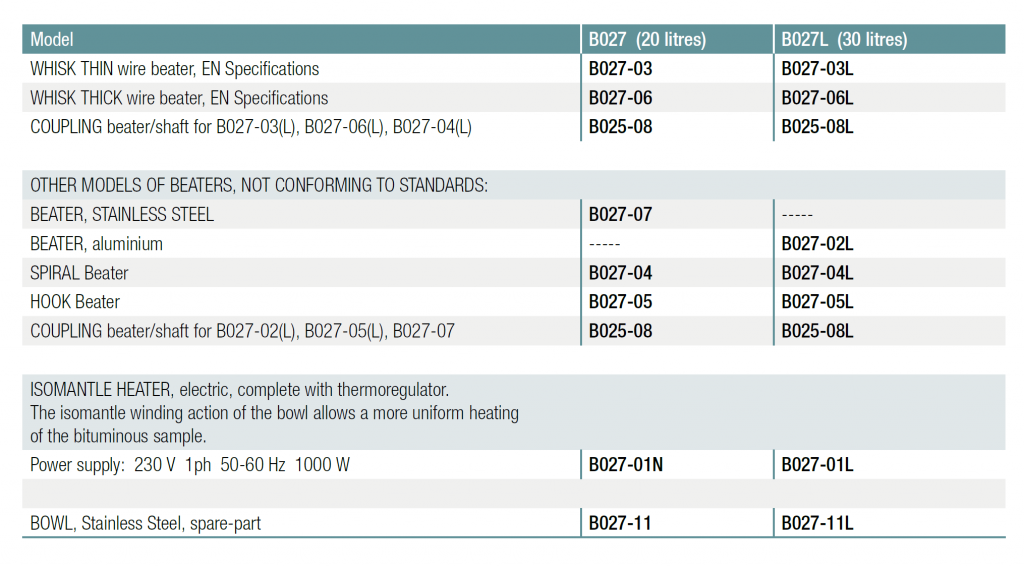

separately (see accessories).

Note: Mixer 20 litres capacity are bench type.
Mixer 30 litres capacity are column freestanding type.

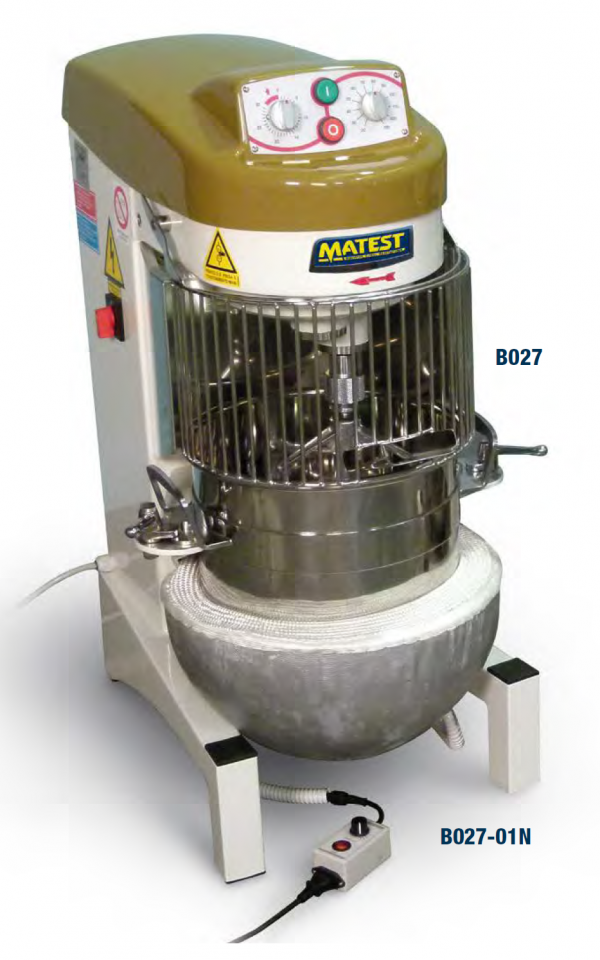

B027
MIXER 20 LITRES CAPACITY
Power supply: 400V 3ph 50Hz 1.1kW
Dimensions: 700x570x950 mm. Weight: 135 kg approx.
B027SP
MIXER 20 LITRES CAPACITY
Identical to mod. B027 but with power supply:
230V 1ph 50Hz 1.1kW
B027L
MIXER 30 LITRES CAPACITY
Power supply: 400V 3ph 50Hz 1.1kW
Dimensions: 750x600x960 mm. Weight: 200 kg approx.
B027LSP
MIXER 30 LITRES CAPACITY
Identical to mod. B027L, but with power supply: 230V 1ph 1.1kW
