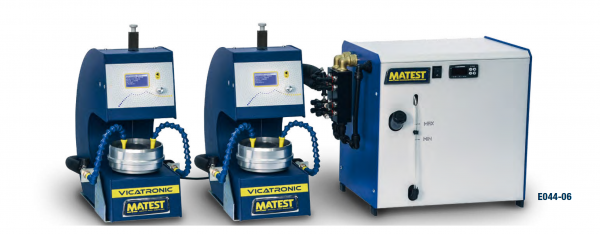

The device produces water with suitable heating and cooling elements at controlled temperature of 20 °C ± 0.5 °C.
The water is forced into the tank E043 and then back to the bath allowing to perform the test at controlled temperature and humidity as
requested by EN196-3 Standard. The system accepts ONE or TWO Vicatronic.
Water capacity: 7.5 litres approx.
Optimized temperature range: 15 to 25 °C
Accuracy: ± 0.5 °C
Power supply: 230V 1ph 50-60Hz 350W
Dimensions: 415x300x420 mm approx.
Weight: 20 kg approx.
B059M-11 TEMPERATURE PROBE, PT100: Measurement of the
water temperature in real time. It’s connected with the
monitor in order to show the temperature during each
test, to collect the data at the end of penetration and to
include the temperature data in the final reading.
MOULD TANK to test the specimen
immersed in water. The test must be
performed in room having a controlled
temperature of 20 °C ± 1 °C.
The saturated humidity is obtained
by the immersion in water of the
specimen as required by the standard
STANDARDS: EN 13279-2 | DIN 1168
CONICAL PENETRATION NEEDLE,
having 8 mm of diameter and 50 mm long,
to make gypsum tests following EN, DIN
PROBE 100 g, to make test on gypsum
following EN, DIN Specifications.
NEEDLE CLEANING DEVICE
It removes the residual cement
particles from the needle keeping it
E042-02N CONSISTENCY PLUNGER Ø 10×50 mm
E042N NEEDLE for final setting Ø 1.13 mm, BS, EN 196-3
E042-01N NEEDLE for final setting ASTM 1 mm diameter.
E044-45 ADDITIONAL 700 g WEIGHT (EN, NF)
E055-04 PLASTIC MOULD Ø 80/90×40 mm high following UNI
E055-11 BRASS MOULD Ø 80/90×40 mm high following BS
E055-13 PLASTIC MOULD Ø 65/75×40 mm high following DIN
E046N Ø 1.13 mm hardened needle (EN 196-3)
E046-01N Ø 1 mm hardened needle (ASTM)
E055-05 Plastic mould Ø 60/70 x 40 mm high following ASTM
E055-07 Glass base plate
E055-10 Plastic mould Ø 70/80 x 40 mm. high following EN, NF
E042-06N Probe 300 g to EN 196-3
E044-48N Tang to fix the needle to the probe
C127-11 Thermo-paper roll for printer (pack of 10 rolls)
