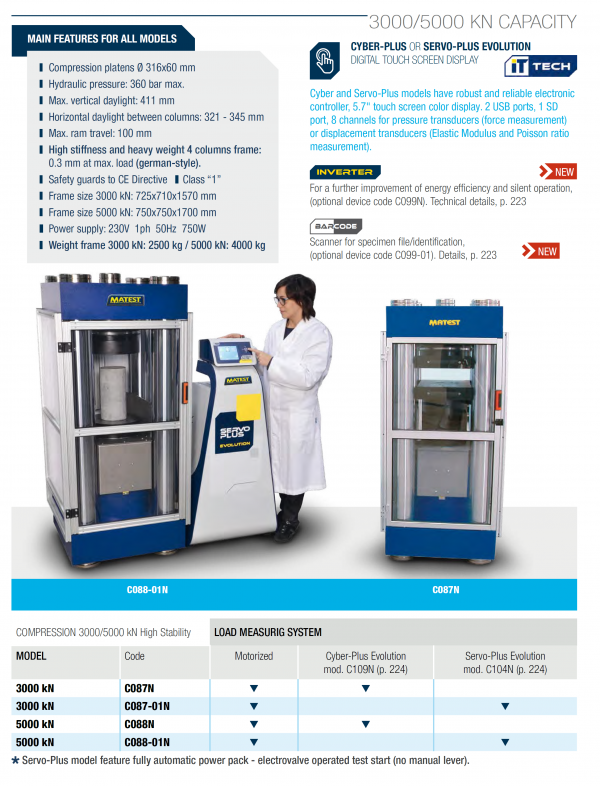

COMPRESSION TESTING MACHINES 3000 KN AND 5000 KN CAPACITY TESTED FOR HIGH STABILITY THIS OVERSIZED ISOSTATIC HIGH STABILITY STIFFNESS FRAME FOR CENTRAL AND RESEARCH LABORATORIES TO TEST HIGH STRENGTH SPECIMENS, EXPLOSIVE SAMPLES, ROCK AND CERAMIC

Category:

STANDARDS: EN 12390-4 | BS 1881:115 | DIN 51220 | NF P18-411 | GOST 10180-2012  3000/5000 KN CAPACITY

MAIN FEATURES FOR ALL MODELS
Compression platens Ø 316×60 mm
Hydraulic pressure: 360 bar max.
Max. vertical daylight: 411 mm
Horizontal daylight between columns: 321 – 345 mm
Max. ram travel: 100 mm
High stiffness and heavy weight 4 columns frame:
0.3 mm at max. load (german-style).
Safety guards to CE Directive Class “1”
Frame size 3000 kN: 725x710x1570 mm
Frame size 5000 kN: 750x750x1700 mm
Power supply: 230V 1ph 50Hz 750W
Weight frame 3000 kN: 2500 kg / 5000 kN: 4000 kg

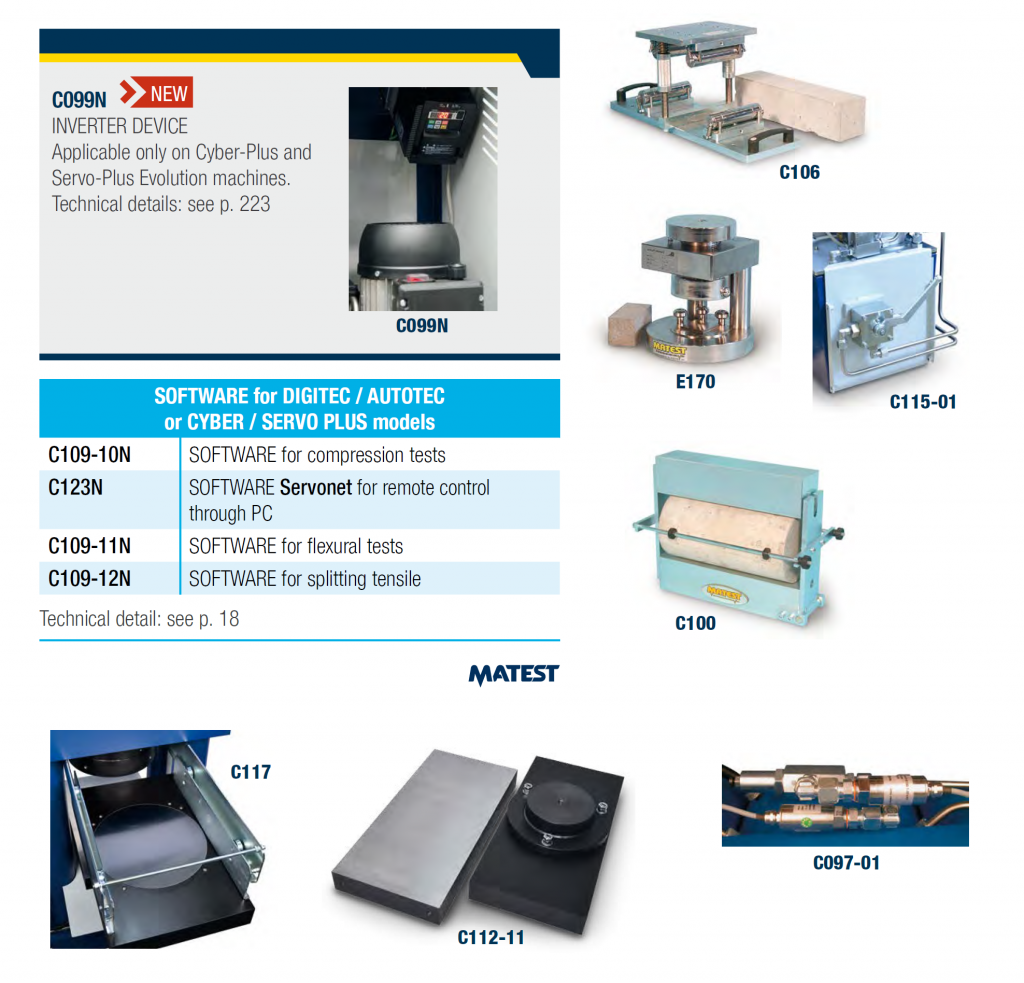

ACCESSORIES FOR 3000 kN and 5000 kN MACHINES
C087-11 DISTANCE PIECE, 50 mm high
C087-12 DISTANCE PIECE, 25 mm high
C087-15 DISTANCE PIECE, 100 mm high
Note:
Vertical daylight of the compression platens is 411 mm.
The operator will have to buy the
needed distance pieces to reduce
the daylight between the
compression platens to get
the correct daylight of the
specimen under test plus
approx. 10 to 15 mm
C112-11 UPPER+LOWER LARGE COMPRESSION PLATENS
320x510x55 mm to test also blocks. It is necessary to
have also the sliding rail carriage mod. C117
C117 SLIDING RAIL CARRIAGE,
for an easy removal of
the large block upper
platen
C127N GRAPHIC PRINTER on
thermo-paper on board
C127-11 THERMO-PAPER roll for
printer (pack of 10 rolls)

C104-10N SERVO-STRAIN
Servocontrolled Software, system of:
– Load or Strength
– Displacement
– Strain
This system can be used only with Servo-Plus machines.
Technical details p. 282
C125N ELASTIC MODULUS determination of the secant compression
on concrete. Automatic system with pace rate
control also when releasing the load, applicable only to
high stability frames with Servo-Plus Evolution.
EN 12390-13, 13412, 13286-43, UNI 6556,
ASTM C469, ISO 6784, DIN 1048, BS 1888:121
Technical details: see p. 284
C115-01 TWO WAY HYDRAULIC VALVE, connected
to the motorized pumping
unit of the machine to activate a
second frame.
Technical details: see p. 318
C097-05 CLASS 1, starting from 1% of the full range. With a special
calibration procedure it is possible to grant Class 1
practically on the full range of the compression machine.
C097-08 OFFICIAL ACCREDIA (Equivalent UKAS, ENAC, DAKKS,
SAS, COFRAC etc. ) HARDNESS CERTIFICATE of upper
and lower compression platens. Minimum hardness:
55 HRC. See p. 313
C100
SPLITTING TENSILE test device for
cylinders.EN 12390-6 | ASTM C496
Technical details and other
models: see p. 314
C097-01 DUAL LOW CAPACITY DIGITAL
RANGE, complete with
appropriate pressure transducer.
Recommended range 0-250kN.
Technical details: see p. 313

C106
FLEXURAL TEST DEVICE for concrete beams.
EN 12390-5 | ASTM C78, C293 | AASHTO T97
Technical details: see p. 315
E170
COMPRESSION DEVICE to test cement
specimens 40.1×40 mm EN 196 | ASTM C349
Technical details and other models: see p. 315
