SERVO-STRAIN

Category:

SOFTWARE-FIRMWARE for the automatic servo-controlled management of the testing machine to measure:
LOAD OR STRENGTH
DISPLACEMENT
STRAIN
The servo-strain software/firmware can be applied ONLY to Matest servo-plus evolution testing machines.
The system is connected to displacement or strain transducers allowing to automatically perform the following tests:
– Deflection on fiber reinforced concrete beams (ASTM C1018, C1609 | EN 11039-03, 14487-1, 14488-3, 14651-05) see p. 305
– Punching of sprayed concrete plate with measurement of the absorbed energy (EN 10834, 14488-3, 14488-05) see p. 306
– Deformation and ductility on building materials, with C104-10N
– Lightweight Aggregates for concrete, mortar and grout (EN 13055-1 method 1) by using the suitable device mod. A081-01 described at p. 45
– Deflection on fiber reinforced concrete beams (ASTM C1018, C1609 | EN 11039-03, 14487-1, 14488-3, 14651-05) see p. 305
– Punching of sprayed concrete plate with measurement of the absorbed energy (EN 10834, 14488-3, 14488-05) see p. 306
– Research tests
The applied load is automatically controlled by the servo-plus evolution machine.
The displacement of the piston or the strain/deformation of the sample are controlled by the servo-strain software, through a linear strain gage
transducer (accessory), calculating values such as deflection, energy absorption, ductility.

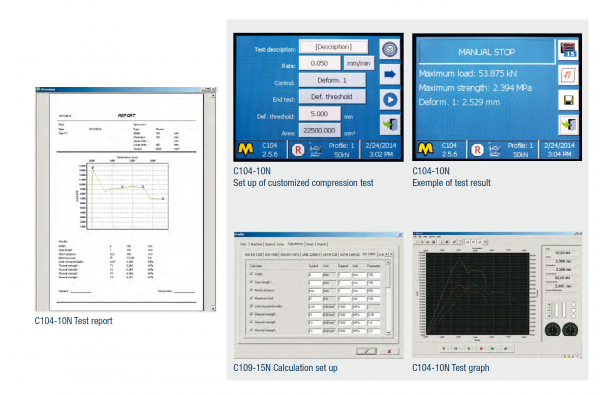

C104-10N
Set up of customized compression test
C104-10N
Exemple of test result
C104-10N Test report
C109-15N Calculation set up C104-10N Test graph
TECHNICAL FEATURES
Same to servo-plus evolution model C104N (p. 224), and in addition:
– Real time Graphical/Numerical display of all test data (load, strain, displacement, energy absorption, deflection, ductility etc.)
– Printing of test results and certificate on the onboard printer, or on a laser printer (accessories) directly connected to the machine via USB port.
– Personalized management of the archive exportable through pendrive.
– Possibility to connect up to 3 test frames
– Eight analog channels to connect load cells or pressure transducers with strain gage technology, linear displacement/deformation transducers
and with strain gage technology.
