STANDARDS: EN 12390-5, 12390-6, 14488-5, 1338, 1339, 1340, 196 320 KN CAPACITY
ASTM C78, C293, C1550, C496, C349 | UNI 9730-3
MAIN FEATURES
Servo-Plus evolution 8-channel servo controlled system
for a fully automatic execution of the test (mod. C104N).
Load is measured by a high accuracy electric strain cell,
eliminating the piston’s weight and friction.
C-shaped open frame for an easy and fast positioning
of the specimen between the rollers.
Frame is closed by a hydraulic vertical rod, granting
high rigidity.
Ram travel: 110 mm
Maximum vertical daylight between upper/lower rollers:
263 mm
Horizontal clearance (between uprights): 1040 mm
Possibility to easily place one upper roller in the centre for
centre-point loading.
Graduated scales are foreseen for easy roller adjustment.
Simple action piston with counterweights to minimize
frictions.
Calibration accuracy: class 1
Power supply: 230V 1ph 50Hz 750W
Frame dimensions: 1700x1470x1557 mm
Frame weight: 800 kg + 100 kg approx. of control
console.

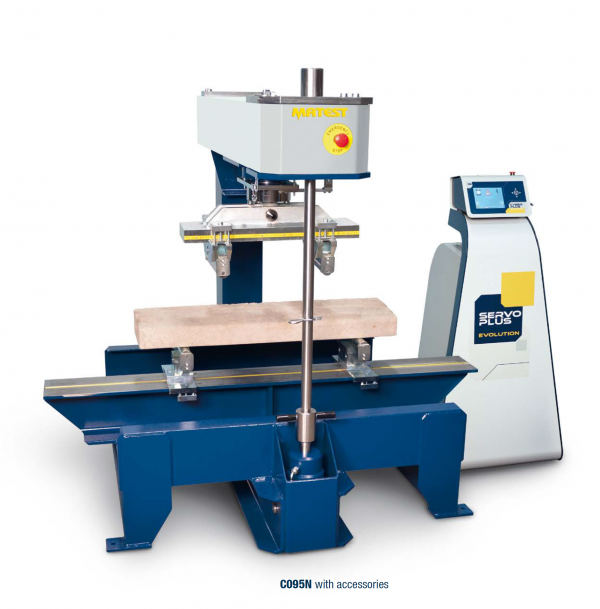

C095N SPECIFIC APPLICATIONS
C095N-11
FLEXURAL TESTS ON CONCRETE BEAMS
STANDARDS: EN 12390-5 | ASTM C78, C293
Upper and lower roller group for third point and centre tests on
concrete beams up to 200x200x800 mm
Rollers size: 30 mm Ø by 312 mm long, cadmium plated against
corrosion.
Span between upper rollers adjustable from 75 to 570 mm
Span between lower rollers adjustable from 75 to 1560 mm
Weight: 65 kg approx.
NEEDED ACCESSORY
C095N-18 FOUR DISTANCE PIECES height 43 mm each, to adjust
the vertical useful light of the frame from 263 to 177 mm
(67 mm with piston excursion)
C095N-12
FLEXURAL TESTS ON PAVING SLABS AND ANY
TYPE OF MATERIAL HAVING MAX. WIDTH 600 MM
STANDARD: EN 1339
One upper centre loading roller and two lower roller assembly for
tests on paving slabs.
Rollers size: 40 mm Ø by 620 mm long, cadmium plated against
corrosion.
Span between lower rollers adjustable from 75 to 1560 mm
Weight: 76 kg approx.
NEEDED ACCESSORY
C095N-18 FOUR DISTANCE PIECES height 43 mm each, to adjust
the vertical useful light of the frame from 263 to 177 mm
(67 mm with piston excursion)
C095N-19
FLEXURAL TESTS ON CONCRETE BEAMS
STANDARDS: EN 12390-5
Two upper loading rollers for third point and centre tests on
concrete beams up to 200x200x800 mm
Rollers size: 40 mm Ø by 312 mm long, cadmium plated against
corrosion, to be used with the rollers assembly C095N-12.
Span between upper rollers adjustable from 75 to 570 mm
Weight: 65 kg approx.
NEEDED ACCESSORY
C095N-18 FOUR DISTANCE PIECES height 43 mm each, to adjust
the vertical useful light of the frame from 263 to 177 mm
(67 mm with piston excursion)
C095N-13
UPPER TAMPER FOR TESTING KERBS
STANDARDS: EN 1340
The Tamper, steel made, is mounted on a rotating coupling and fixed
to the upper part of the machine to apply a flexural load on the kerb,
without any torsional stress.
To be used with the rollers assembly C095N-12.
The vertical useful light is 221 mm (111 mm with piston excursion).
Weight: 6 kg approx.
ACCESSORY
C095N-18 FOUR DISTANCE PIECES height 43 mm each, to adjust
the vertical useful light from 221 to 135 mm
(25 mm with piston excursion)
