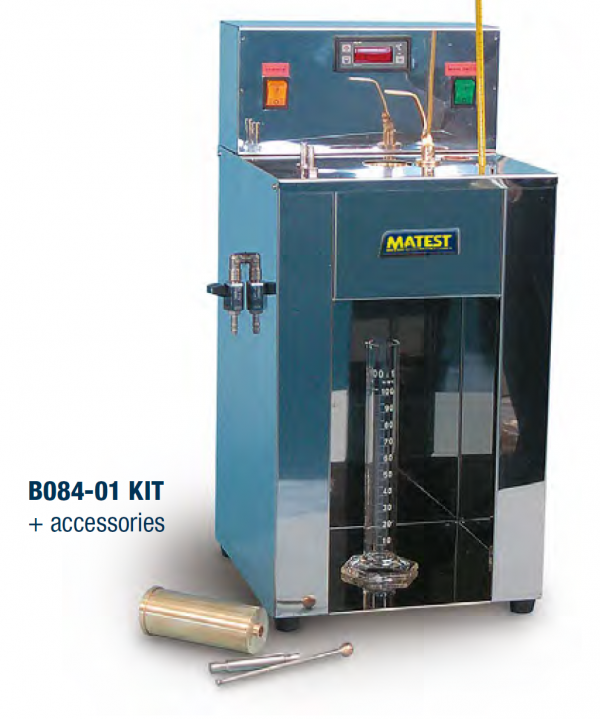

B084-01 KIT STANDARD TAR (BRTA, REDWOOD) DIGITAL VISCOMETER

Category:

STANDARDS: EN 12846-01, EN 12846-02, EN 13357 | IP 184
NF T66-005
Used to determine the viscosity of cut-back bitumen and road oil.
The instrument consists of a stainless steel bath (tank), agitator,
rheostat, immersion electric heater with digital thermostat to take
the water to the desired temperature, cooling coil for water supply
connection. The viscometer is equipped of a dual safety thermostat
to prevent accidental over-temperatures.
Supplied with control glass thermometer IP 8C, range 0 – 45 °C,
subd. 0.2 °C, graduated glass cylinder 100 ml capacity.
Supplied without Cup, Go/not go gauge, ball valve to be ordered
separately (see accessories).
Power supply: 230V 50-60Hz 1ph 300W
Dimensions: 265 x 270 x 550 mm
Weight: 12 kg approx.

B084-02 KIT
TWO PLACES TAR VISCOMETER, DIGITAL
Basically structured as mod. B084-01 KIT,
but having TWO ELEMENTS.

ACCESSORIES for Standard TAR
Standards: EN, NF, IP
B083-01 Go/not go gauge for Ø 4 mm orifice
B083-02 Cup with orifice Ø 4 mm
B083-03 Ball valve Ø 4 mm
Standards: EN, NF, IP
B083-04 Go/not go gauge for Ø 10 mm orifice
B083-05 Cup with orifice Ø 10 mm
B083-06 Ball valve Ø 10 mm
Standard: EN 12846-02
B083-08 Go/not go gauge for Ø 2 mm orifice
B083-09 Cup with orifice Ø 2 mm
B083-10 Ball valve Ø 2 mm
SPARES
B083-07
Thermometer IP 8C,
range 0 – 45 °C,
subd. 0.2 °C.
V101-03
Graduated cylinder, glass,
100 ml capacity.
