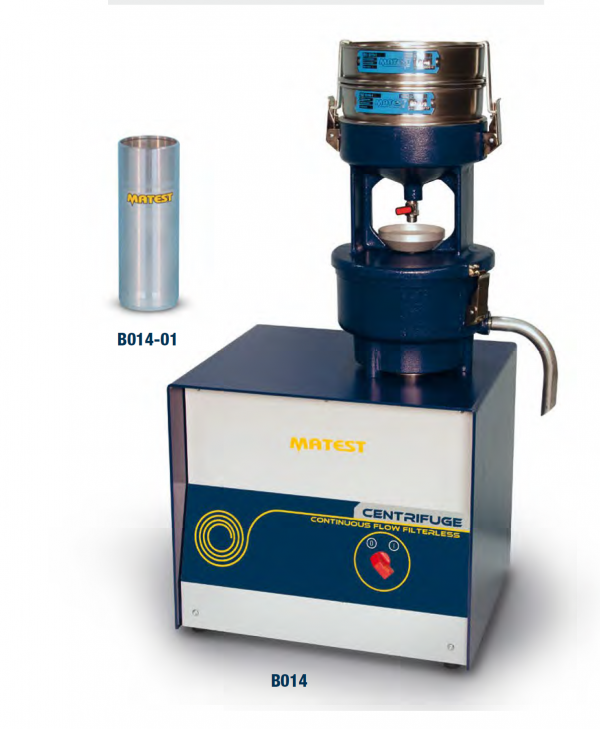

B014 CONTINUOUS FLOW FILTERLESS CENTRIFUGE

Category:

STANDARDS: EN 12697-1 | ASTM D1856
Designed for quick filterless separation of filler from binder solution
or other mixtures containing sediments (cement, soil, clay), in
suspension. The solution is poured into the top funnel and falls into
the rotating test container with Ø 70×200 mm. Because of the centrifugal
effect, the liquid rises vertically leaving the filler and mineral
particles inside the beaker. The centrifuge is supplied complete
with aluminium beaker, two sieves 2 mm and 0.063 mm mesh
respectively. The rotation speed is 11500 rpm, with automatic ramp
and preset speed control.
Extraction capacity is up to 100 g of filler per test.
Power supply: 230V 1ph 50Hz 600W
Dimensions: 350x600x720 mm
Weight: 60 kg approx.

MAIN FEATURES
Filler recovery with filterless system.
Continuous flow at 11500 rpm.
Automatic speed ramp.
Highest accuracy thanks to no dispersion of material.

SPARE
B014-01 Aluminium beaker Ø 70×200 mm high.
