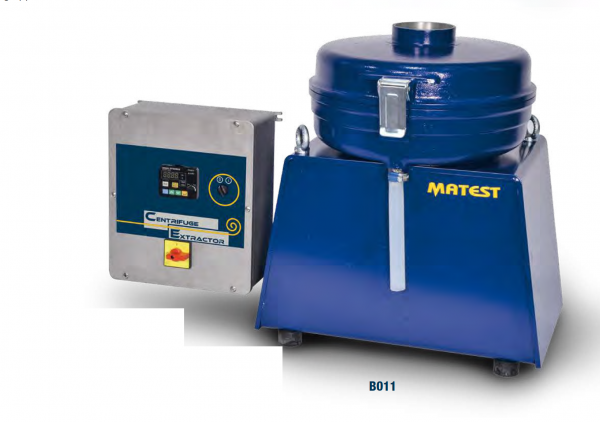

B011 ROTAREX CENTRIFUGE EXTRACTOR 1500 / 3000 g CAPACITY

Category:

STANDARDS: EN 12697-1 | ASTM D2172 | AASHTO T164A
Used for the determination of bitumen percentage in bituminous
mixtures.
It consists of a removable, precision machined aluminium rotor
bowl, placed into a cylindrical aluminium box.
The separate control panel incorporates an electronic card fitted
with AC drive which automatically drives the bowl speed rotation
ramp from 0 to 3600 rpm as requested by Standards, with fast stop
bowl rotation at the end of the test.
Supplied complete with speed regulator and digital display monitoring
the frequency.
The centrifuge is supplied without aluminium bowl+cover and
without filter discs to be ordered separately (see accessories)
The unit cannot be sold in CE markets (see mod. B011-10)
Power supply: 230V 1ph 50-60Hz 600W
Dimensions: 480x330x530 mm
Weight: 50 kg approx.

MAIN FEATURES
Accepts bowls both 1500g and 3000g capacity.
Speed control 0-3600 rpm by “inverter” at 50/60 Hz.
Separate panel for speed control and rpm on digital
display.
Explosion proof model (B011-01).
CE safety option (B011-10).

B011-01
ROTAREX
CENTRIFUGE EXTRACTOR EXPLOSION PROOF
1500 / 3000 g CAPACITY
Same as mod. B011, but equipped with a special explosion proof
electric motor.
The control panel has to be installed in a non explosive area.

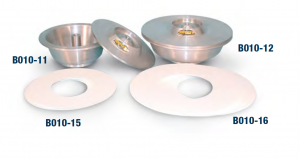

NEEDED ACCESSORIESB010-11 BOWL AND COVER 1500 g capacity.
Made of precision machined cast aluminium.
Weight: 3.6 kg
B010-15 FILTER DISC, 1500 g capacity. Pack of 100 pieces.
or:
B010-12 BOWL AND COVER 3000 G. CAPACITY.
Made of precision machined cast aluminium.
Weight: 4.6 kg
B010-16 FILTER DISC, 3000 g capacity. Pack of 100 pieces.

UPGRADING OPTION
B011-10
SAFETY ELECTROMAGNETIC
MICRO-SWITCH SYSTEM to prevent
the opening of the cover when the
Centrifuge is working, or during
the bowl rotation. Conforming to
CE Safety Directive. Not applicable
to the Centrifuge explosion proof
version mod. B011-01.
