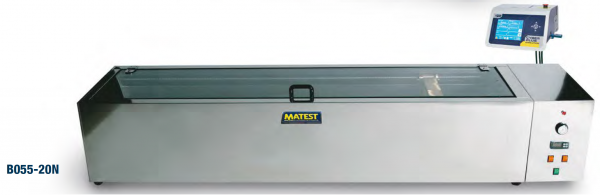

DUCTILOMETER WITH DATA ACQUISITION
FOR RESEARCH HIGH PERFORMANCE
STANDARDS: EN 13589, 13703, 13398 | ASTM D113, D6084
AASHTO T51, T300, T301
GOST 11505-75, 33138-2014
Developed and manufactured for ductility tests and for research
purposes. Stepper motor providing a variable speed range from 1 to
400 mm/min with digital displacement measuring system.
Up to 3 samples can be tested simultaneously.

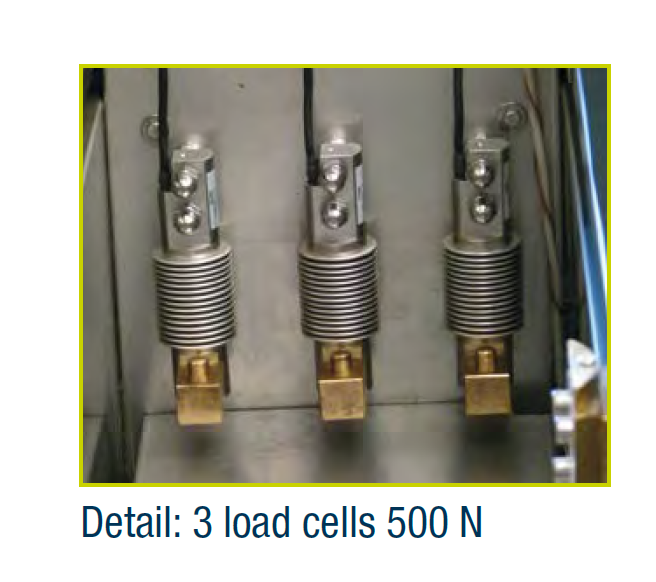

One electric high capacity load cell 500 N (possibility to install later
on up to 3 cells directly by the end user).
Automatic positioning of start test.
Visualization of the elongation in mm and load/elongation chart.
Max elongation recording before breaking failure.
Absorbed energy elaboration.
Temperature setting and visualization of the test execution with
continuous recording during the test.
Test certificate print-out (USB connector or local printer).
Cyber-plus 8 evolution data acquisition and processing system
colour touch screen display (technical details: p. 19, 225).
Software UTM2 to unload and display test data to PC.
Glass upper cover.
Supplied without briquette mould and base (see accessories).
Power supply: 230V 1ph 50-60Hz 1000W
Dimensions: 2140x400x650 mm
Weight: 110 kg approx.
LOAD CELL electric, 500 N capacity, complete with installation and
calibration (possibility to install up to 3 cells).
REFRIGERATING UNIT, incorporated into the machine, for tests with
water temperature from +5 °C to +25 °C.
(Not possible to fix later on).
LASER PRINTER, bench model,
for graphics and certificates with
direct connection via USB.
Ductility moulds and base plate:
see p. 144
