STANDARDS: EN 13398 | EN 13589 | EN 13703 | ASTM D113, D6084 | AASHTO T51 | GOST 11505-75, 33138-2014
Same as mod. B054, but upgraded with:
– Cyber-plus 8 evolution data acquisition and processing system, colour touch screen display ¼ VGA, 24 bit resolution. It automatically
performs data acquisition and processing. Directly connected to printer (accessory) via USB it prints the test certificate. Equipped with slots for
external pendrive or SD card infinite memory support with direct connection to PC. Hardware details: see p. 19, 225
– Software UTM NET to unload and visualize test data to PC.
– One electric load cell 50 N capacity complete with installation and calibration. (Possibility to install later on up to 3 cells directly by the end user).
Supplied without briquette mould and base (see accessories).
ACCESSORIES
B055-15
LOAD CELL electric, 50 N capacity,
complete with installation and calibration
(possibility to install up to 3 cells).
B055-16
REFRIGERATING UNIT, incorporated
into the machine, for tests with water
temperature from +5 °C to +25 °C
(not possible to fix on later).
Ductility moulds and base plate: see p. 144

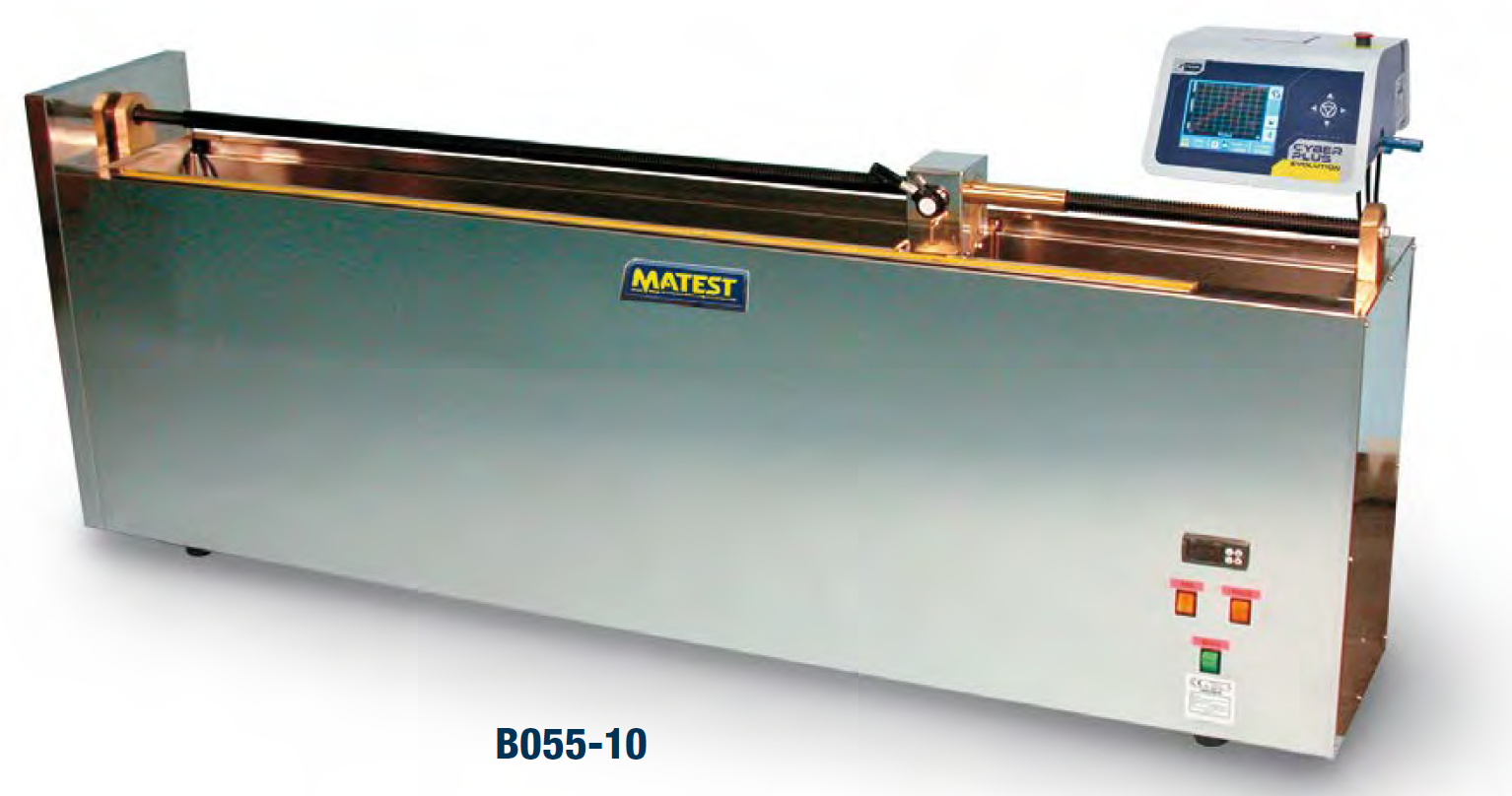

B055-10 DUCTILOMETER WITH DATA ACQUISITION HIGH PERFORMANCE
