THREE – SIX GANG MOULDS

Category:

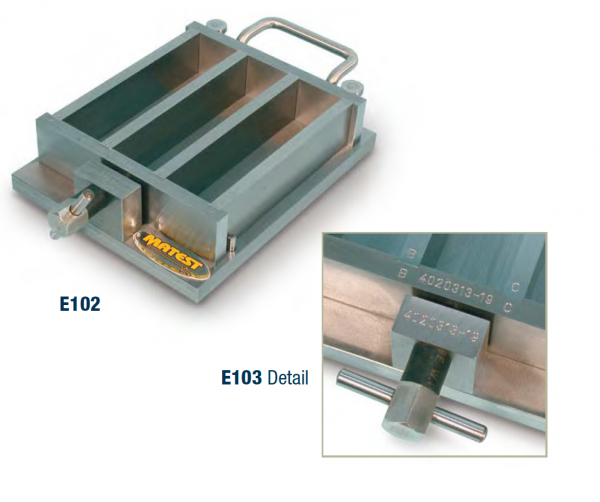

E102

THREE GANG MOULD
FOR 40.1X40X160 MM PRISMS
STANDARDS: EN 196-1 | EN ISO 679
Steel manufactured with hardness of inside walls over HV 200,
it meets the dimensional tolerances to EN 196/1 Standard. All
surfaces are grinded and all parts are marked with an identification
number for a correct assembling. A part-number is engraved on
each mould and a Certificate of Conformity is supplied along with.
Weight: 8560 g.

E103
THREE GANG VERIFIED MOULD
FOR 40.1X40X160 MM PRISMS
STANDARDS: EN 196-1 | EN ISO 679
Identical in shape to mod. E102, but manufactured from heavy
duty steel with hardness of inside walls over HV 500 (EN196/1
Specifications recommend hardness HV 400). This high hardness
value keeps the mould within the tolerances requested by Spec. for
many tests, granting very long utilisation life.
All parts are marked with an identification number for a correct
assembling. Each mould is individually verified in the dimensional
tolerances, hardness, squareness, flatness and roughness with
instruments periodically certified by Namas Centre or equivalent.
A part-number is engraved on each mould, and a Certificate of
Conformity is supplied along with.
Weight: 8560 g.

E105
THREE GANG MOULD
FOR PRISMS 40X40X160 MM
STANDARDS: NF P15-413 | ASTM C348 | DIN 1164, 1060
Made from steel, hardness 55 HRB, it conforms to the above
mentioned Specifications.
Weight: 8 kg approx.

E102-11
SIX GANG MOULD FOR 40.1X40X80 MM
STANDARD: EN 12808-5
DETERMINATION OF WATER ABSORPTION on grouts for floor or wall
installation of ceramic tiles.
Identical to mod. E102, but equipped with three stainless steel
partitions, positioned in the middle of the gangs, to obtain six gangs
having dimensions 40.1x40x80 mm approx.
Weight: 8600 g

E112
THREE GANG MOULD FOR 70.7X70.7X282.8 MM
STANDARD: NF P18-401
Made from steel. Weight: 17 kg approx.

E111
BRIQUETTE MOULD
STANDARDS: ASTM C190, C307 | AASHTO T132
Accurately machined it conforms to the above Specifications and is
easily collapsible. Complete with base. Weight: 3 kg

E110
50 MM THREE GANG CUBE MOULD
Made from steel, hardness 55 HRB, ti can be also used for soil and
other materials. Weight: 6 kg approx.

ACCESSORIES
E106 FEED HOPPER, used to fill the mould E102, E103, E105
when it is mounted on the Jolting machine E130, E131
Made from cast aluminium. Weight: 1 kg
E102-02 LARGE AND SMALL SCRAPER to EN 196-1
S200-11 STRAIGHT EDGE 300 mm long.
E102-03 GLASS PLATE 220x190x6 mm to cover the mould.
