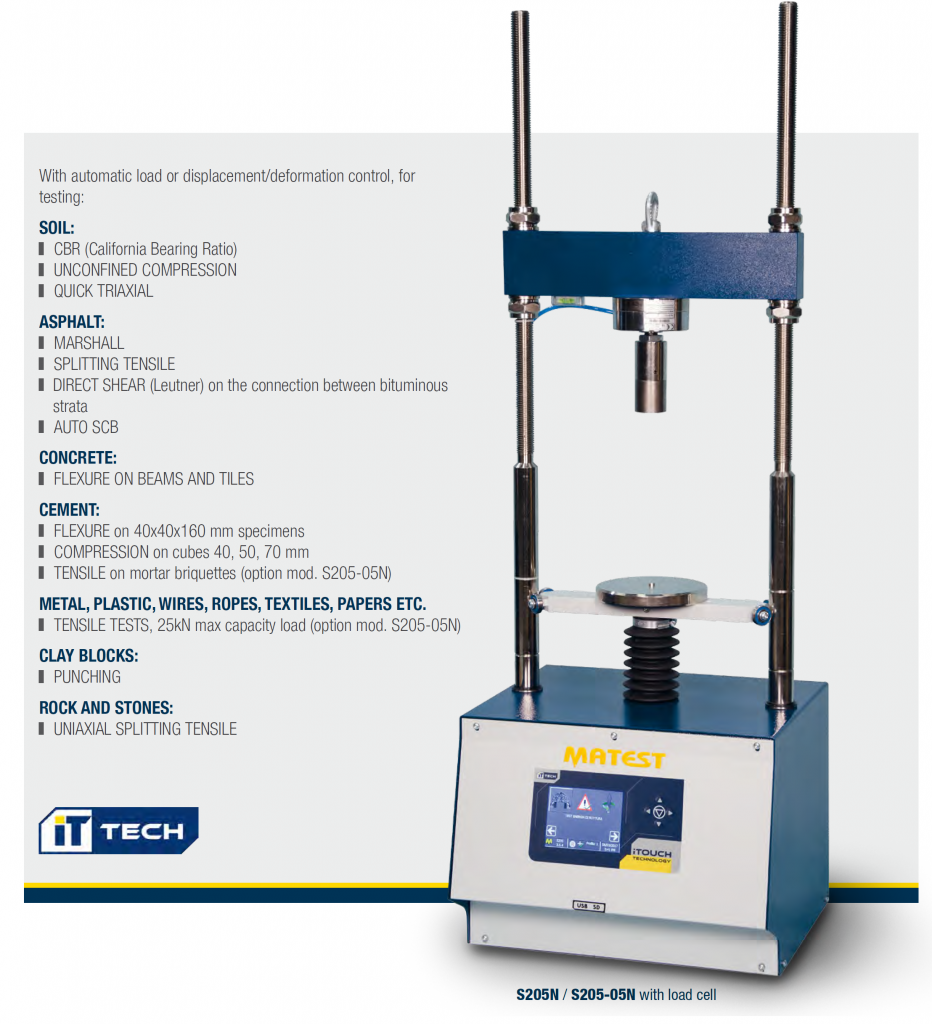

S205N – UNITRONIC 50 KN UNIVERSAL MULTIPURPOSE TOUCHSCREEN COMPRESSION/FLEXURAL AND TENSILE FRAME FOR:

Category:

COMPRESSION / FLEXURAL TESTS, 50 kN MAX. CAPACITY LOAD
TENSILE TESTS, 25 kN MAX. CAPACITY LOAD (option mod. S205-05N)

With automatic load or displacement/deformation control, for
testing:
SOIL:
CBR (California Bearing Ratio)
UNCONFINED COMPRESSION
QUICK TRIAXIAL
ASPHALT:
MARSHALL
SPLITTING TENSILE
DIRECT SHEAR (Leutner) on the connection between bituminous
strata
AUTO SCB
CONCRETE:
FLEXURE ON BEAMS AND TILES
CEMENT:
FLEXURE on 40x40x160 mm specimens
COMPRESSION on cubes 40, 50, 70 mm
TENSILE on mortar briquettes (option mod. S205-05N)
METAL, PLASTIC, WIRES, ROPES, TEXTILES, PAPERS ETC.
TENSILE TESTS, 25kN max capacity load (option mod. S205-05N)
CLAY BLOCKS:
PUNCHING
ROCK AND STONES:
UNIAXIAL SPLITTING TENSILE

TECHNICAL FEATURES:
By using suitable devices, Unitronic tester, within the limits of its max. 50 kN capacity for compression/flexural and 25 kN for tensile (see model
S205-05N), performs compression, flexural, splitting tensile and direct tensile tests, with automatic load or displacement/deformation control.
The load is applied by a mechanical jack that is driven by a motor brushless with closed loop through optic encoder and controlled by a
microprocessor. Stroke electric end switches are applied to the load piston to save the machine from accidental handlings.
The two crossheads foresee couplings to fix the different test devices (see accessories). The stress is measured by an electric load cell; the
measurement and the displacement control of the crosshead is achieved by the electronic device incorporated into the machine.

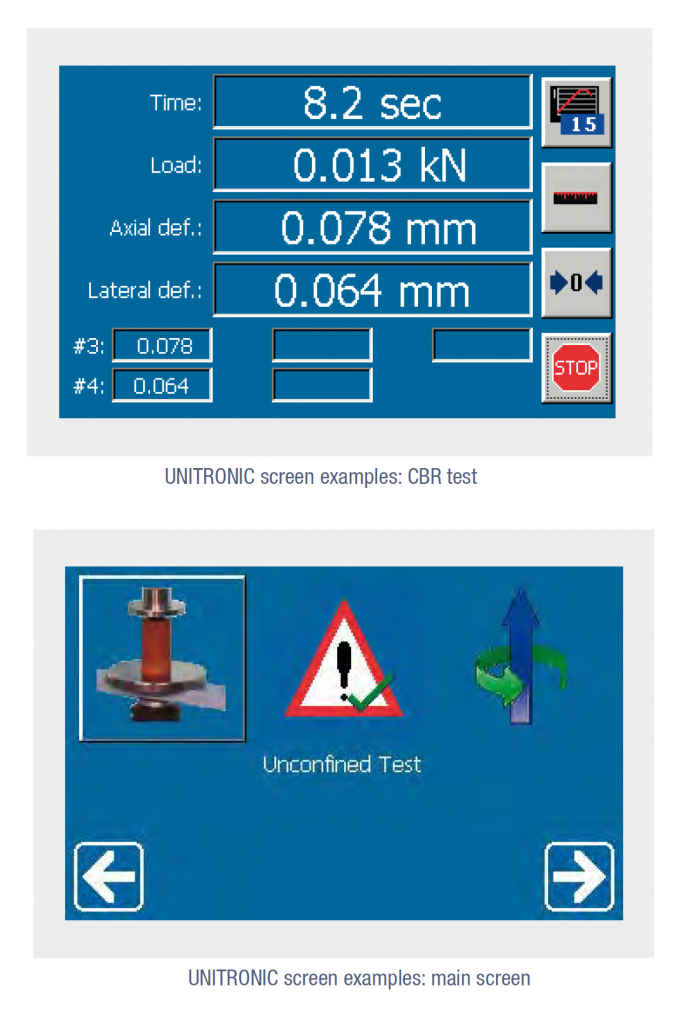

FIRMWARE
Electronic control unit “Cyber-plus Evolution” with Touch-Screen
colour display, that runs like a standard PC based on Windows
operating system for the management and analysis of the data,
test results, graphs.
The Touch-Screen icon interface allows an easy set up of the
parameters and immediate execution of the test.
The machine can be connected to a PC for remote test execution
through suitable Software; the machine can in any case perform
the tests without any external PC, because of the “Cyber-Plus”
grants performances like a PC.
Direct connection to Intranet (connection to a LAN network) and
Internet to establish a remote communication and receive an
immediate diagnostic analysis from Matest technicians, or for
updates of the software.
Unlimited memory storage with: 2 USB ports, 1 SD card slot.
RJ45 network connection
Possibility to select different languages.
Hardware technical details: see p. 18

TECHNICAL SPECIFICATIONS
Maximum compression capacity: 50kN
Maximum tensile capacity: 25kN (model S205-05N)
Adjustable testing speed from 0.01 to 51mm/minute
Adjustable pace rate from 1 to 15000N/sec.
Max. ram travel: 100 mm
Daylight between columns: 380 mm
Max. vertical daylight: 850 mm
Unitronic 50 kN is supplied without accessories and software
to perform the specific tests that must be ordered separetely (see
accessories at next pages)
Power supply: 230V 1ph 50-60Hz 150W
Dimensions: 500x450x1450 mm
Weight: 130 Kg approx.

S205-05N
UNITRONIC COMPRESSION | TENSILE
The Unitronic frame S205N is modified and improved to perform also tensile tests with max. capacity of 25 kN.

Note: this modification is possible only in MATEST factory.
S205N UNITRONIC 50 KN CAN PERFORM THE FOLLOWING TESTS:

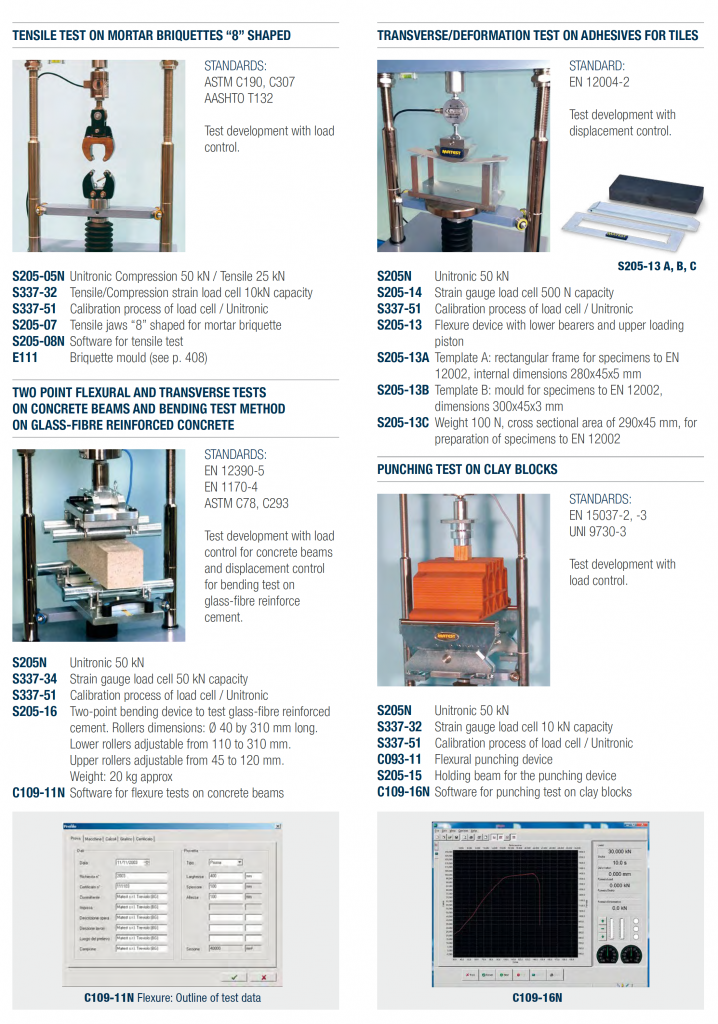

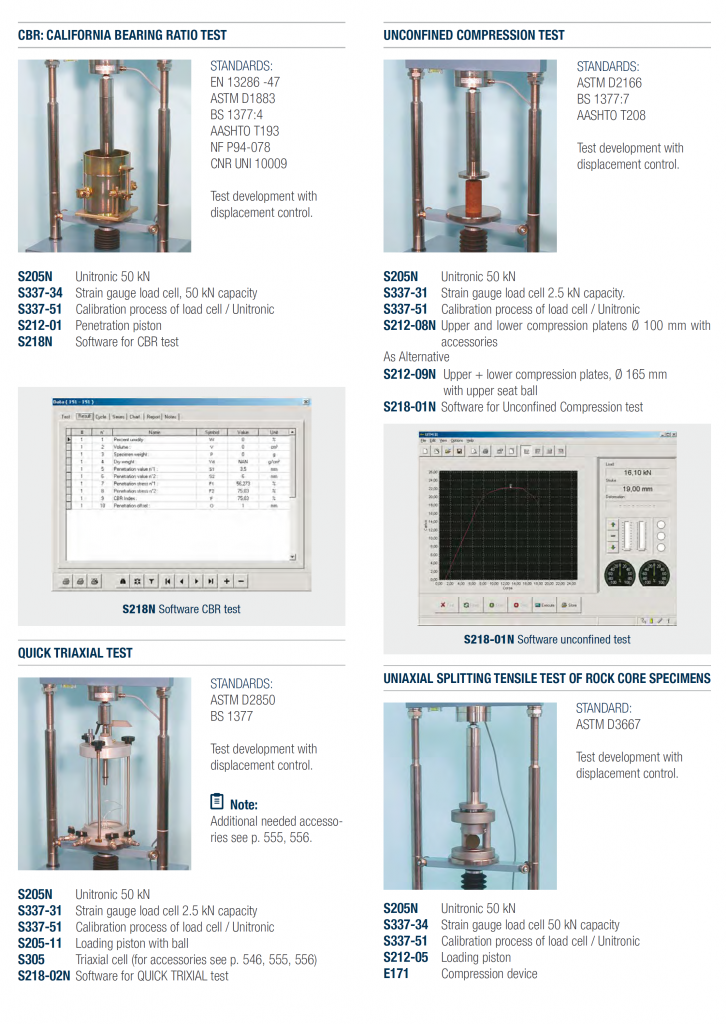

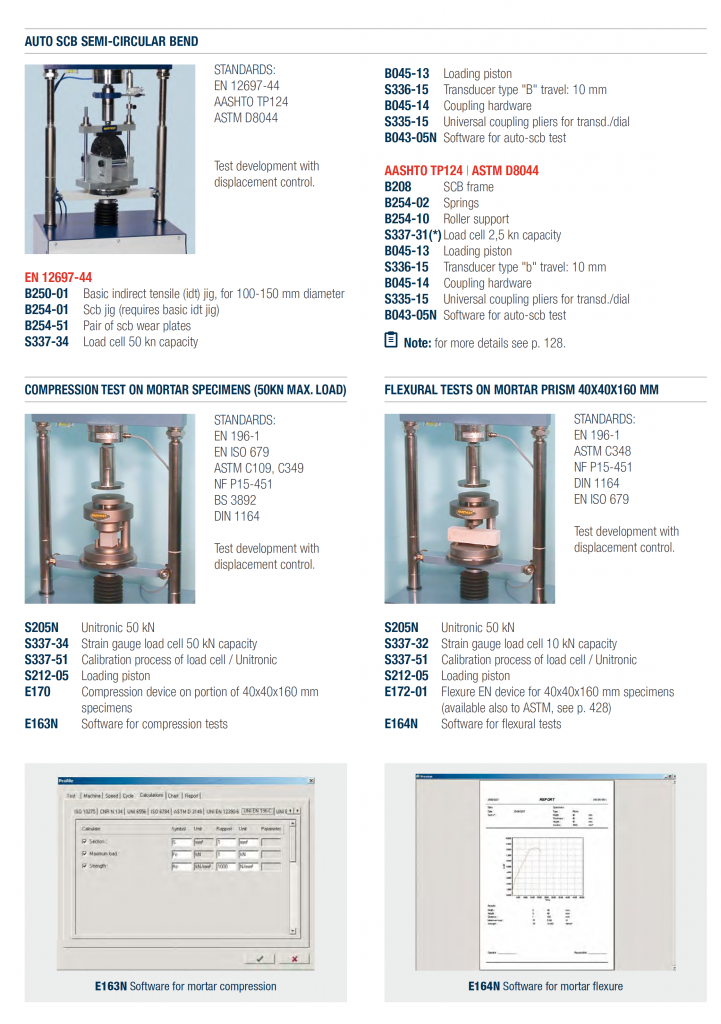

S205N | S205-05N UNITRONIC, SPECIFIC APPLICATIONS
