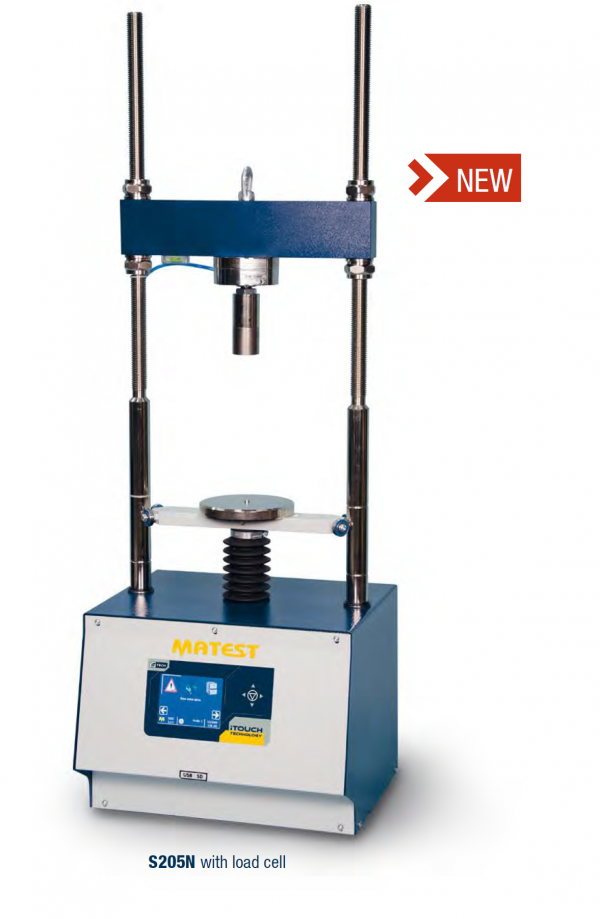

S205N UNITRONIC 50 KN UNIVERSAL MULTIPURPOSE TOUCH-SCREEN FRAME

Category:

FOR COMPRESSION / FLEXURAL TESTS
WITH AUTOMATIC LOAD OR DISPLACEMENT/DEFORMATION CONTROL, for testing:

MARSHALL
SPLITTING TENSILE
DIRECT SHEAR (Leutner) on the connection between bituminous
strata.
SCB: Automatic Asphalt fracture test (see next page)
Soil:
CBR (California Bearing Ratio),
UNCONFINED COMPRESSION,
QUICK TRIAXIAL
Concrete:
FLEXURE ON BEAMS
FLEXURE ON TILES
Cement:
FLEXURE on 40x40x160mm specimens,
COMPRESSION on cubes 40, 50, 70mm
TENSILE on mortar briquettes (mod. S205-05N)
Metal, plastic, wires, ropes, textiles, papers etc.
TENSILE TESTS, 25kN max capacity load (mod. S205-05N)
Clay blocks:
PUNCHING
Rock and stones:
UNIAXIAL SPLITTING TENSILE

Technical features:
By using suitable devices, Unitronic tester, within the limits of its
max. 50 kN capacity for compression/flexural and 25 kN for tensile
(see accessory S205-05N), performs compression, flexural, splitting
tensile and direct tensile tests, with automatic load or displacement/
deformation control.
The load is applied by a mechanical jack that is driven by a motor
brushless with closed loop through optic encoder and controlled
by a microprocessor. Stroke electric end switches are applied to the
load piston to save the machine from accidental handlings.
The two crossheads foresee couplings to fix the different test devices
(see accessories). The stress is measured by an electric load cell;
the measurement and the displacement control of the crosshead is
achieved by the electronic device incorporated into the machine.
Firmware:
– Electronic control unit “Cyber-plus Evolution” with Touch-Screen
colour display, that runs like a standard PC based on Windows
operating system.
– The machine can be connected to a PC for remote test execution
through suitable Software.
– Direct connection to Intranet and Internet to establish a remote
communication and receive an immediate diagnostic analysis
from Matest technicians, or for updates of the software.
– Unlimited memory storage with: 2 USB ports, 1 SD card slot.
– RJ45 network connection
– Possibility to select different languages.

TECHNICAL SPECIFICATIONS
– Maximum compression capacity: 50kN
– Maximum tensile capacity: 25kN (accessory S205-05N)
– Adjustable testing speed from 0.01 to 51 mm/minute
– Adjustable pace rate from 1 to 15000N/sec.
– Max. ram travel: 100 mm
– Daylight between columns: 380 mm
– Max. vertical daylight: 850 mm
– Unitronic 50 kN is supplied without accessories and software to
perform the specific tests that must be ordered separetely (see
accessories at next pages)
Power supply: 230V 1F 50-60Hz 1500W
Dimensions: 500x450x1450 mm
Weight: 130 kg approx
