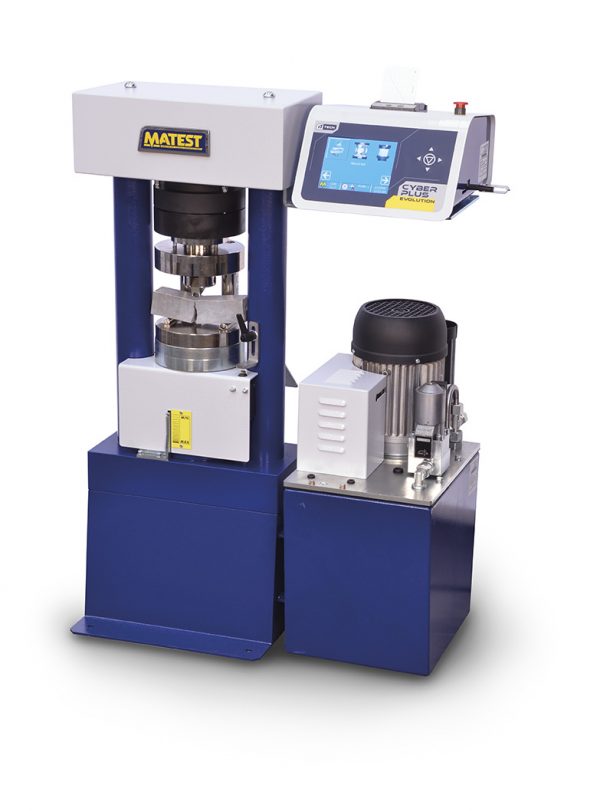

E161N Cement compression machine 250 kN, Servo-plus evolution

Category:

Compression machine 250 kN with Servo-Plus evolution control unit (fully automatic model).

Designed to perform compression tests on portions of prism 40.1x40x160 mm, cubes side 40, 50, 70, 100 mm and 2”; cores with max. height of 180 mm, by using the suitable compression devices (accessories mod. E170 – E171-01).

  • Two columns high stiffness frame.
  • Max. vertical daylight between platens: 185 mm
  • Platens diameter: 153 mm
  • Ram travel: 45 mm approx.
  • Accuracy: Grade 1 starting from 1/10 of the scale
  • Supplied complete with lower compression platen and coupling piece to easily fix the compression device.
  • Power supply: 230V 1ph 50Hz 750W
  • Weight: 300 – 330 kg
