CURING TANKS FOR CONCRETE SPECIMENS

Category:

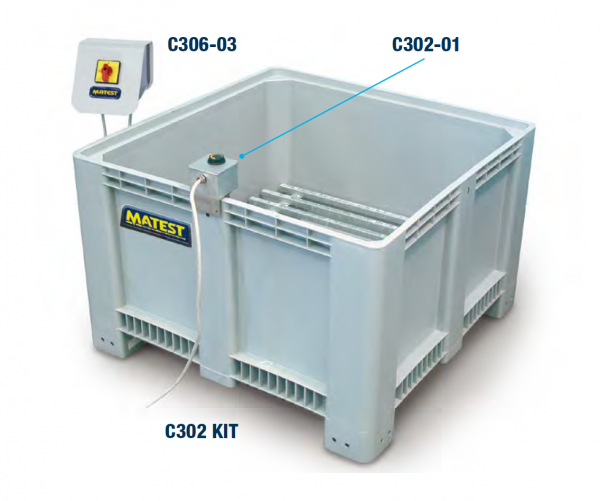

C302 KIT
CURING TANK 650 LITRES CAPACITY
HEAVY PLASTIC
Made from extremely robust and stable polyethylene, complete with
base rack.
Supplied without thermostat heating system, to be ordered separately
(see accessories).
Inside dimensions: 1040x1040x605 mm
Weight: 60 kg approx.

C302-10 KIT
CURING TANK, 550 LITRES CAPACITY
HEAVY PLASTIC
Same to mod C302 KIT but having:
Water discharge cock incorporated into the tank
Inside dimensions: 1100x710x690 mm
Overall dimensions: 1200x80x850 mm
Weight: 55 kg approx.

C304
CURING TANK 1000 LITRES CAPACITY
Made from steel sheet, zinc coated to prevent it from corrosion.
Complete with base rack and stopper for an easy water discharge.
Supplied without thermostat heating system, to be ordered separately
(see accessories).
The tank can accommodate up to 64 cubes 150mm side, or up to
48 cubes 200mm side.
Inside dimensions: 1500x750x750 mm
Weight: 120 kg approx.

NEEDED ACCESSORY
Available in two versions:
C302-01 THERMOSTAT ANALOGIC HEATING SYSTEM, for the tank
mod. C302 KIT
230V 1ph 50-60Hz 2000W
C304-01 THERMOSTAT ANALOGIC HEATING SYSTEM, for the
tanks mod. C302-10 KIT and C304
230V 1ph 50-60Hz 2000W
AS AN ALTERNATIVE
C304-02 THERMOSTAT DIGITAL HEATING
SYSTEM for the tanks mod. C304
C302-10 KIT and C302 KIT,
ensuring better temperature
accuracy
230V 1ph 50-60Hz 2000W

ACCESSORIES FOR CURING TANKS
C305-01 PLASTIC COVER for the C302 KIT tank
C302-11 PLASTIC COVER for the C302-10 KIT tank
C306-04 STEEL ZINC COATED COVER for the C304 tank
C306-01 UPPER RACK for the C304 tank to store cubes max.150 mm
Max. 8 racks per tank
C306-02 SUBMERSIBLE WATER CIRCULATING PUMP, also used for
an easy water discharge from the tank 230V 1ph 50/60Hz
C306-03 SEPARATE CONTROL PANEL, complete with switch and
electric protections, to get the tanks to CE Safety Directive

C306-05
ANALOGIC THERMOSTAT
Complete with heating element. Used to
thermostatise any type of tank from 300 to
1000 litres capacity.
Power supply:
230V 1ph 50-60Hz 2000W
E141
WATER REFRIGERATOR
It cools the water from room temperature up to +10 °C. It is connected
to the tank where a lower temperature than the room one is
required. See Section “E” Cement, p. 411

C307
ACCELERATED CONCRETE CURING TANK
STANDARDS: ASTM C684 | BS 1881:112
This tank has been designed for accelerated concrete strength curing.
It comprises a fully insulated double wall tank with cover, inside all
from stainless steel, outside from steel painted sheet with an intermediate
layer of insulating mineral wool.
This tank can hold up to 16 cubic 150 mm side specimens; or 16
cylindrical Ø 150 mm specimens; or 8 cubic 200 mm side specimens.
The test consists essentially in curing the concrete specimens with
water heated by 3 electric elements of 1500W each.
Temperature range: from ambient to 100 °C.
The separate control panel is provided with a
thermoregulator, timer, pilot lights, main switch.
Inside dimensions: 910x660x680 mm
Overall dimensions: 970x720x900 mm
Power supply: 230V 1ph 50-60 Hz 4500W
Weight: 130 kg approx.





EQUIPMENT TO PREPARE A TEMPERATURE AND
HUMIDITY CONTROLLED ROOM
The following equipment are suggested as alternative to the curing
tanks and climatic chambers indicated in this catalogue or by
necessity of a wide area for curing a big quantity of specimens.
They are suitable to prepare an already existing room/box or one
to be realized by the customer. The temperature of the room can
be only increased compared to the external temperature but not
decreased.

NEEDED DEVICES
C309-10 CONTROL PANEL of temperature and humidity.
It is usually placed on the outer side of the room, and
allows to set, display and control the desired parameters
of temperature and humidity.
Power supply: 230V 1F 50-60Hz
Dimensions: 240x130x310 mm Weight: 5 kg
C309-12 HEATING RESISTANCE in tubular frame, finned type.
Normally one heating resistance is enough for its
purpose, provided that the range between the external
and internal temperature set in the room (anyway well
insulated) is kept within 15 °C.
Dimensions: Ø 40×1100 mm Weight: 2000 g approx.
C309-14 SENSOR PROBE to measure temperature and humidity.
Temperature measuring range from -10 to +90 °C and
humidity up to 100%. It is fixed inside the room and
connected to the control panel.
C311-01 VAPORISER
Used to humidify curing rooms up to 150 cubic/metre.
Technical data: see p. 350
