CLIMATIC CABINETS

Category:

The climatic cabinet is available in two versions:
C313N Temperature and humidity controlled from -30 to +70 °C
and 20% to 95% respectively for testing concrete
(EN 12390-2), cement (EN 196-1), aggregates
(EN 1367-1) and many other applications.
C316N Only temperature controlled from -30 to +70 °C for the
determinations of the behavior and resultance to freezing
and thawing of aggregates (EN 1367-1) and different
other applications on concrete and building materials.

MAIN FEATURES
Real-Time display of temperature and humidity
parameters.
High quality thermal insulation material.
Temperature control from -30 to +70 °C with high
stability (± 0.15 °C).
Humidity control from 20% to 95% with ± 5%
stability and ± 1% accuracy (within temperature
+10 to +70 °C).

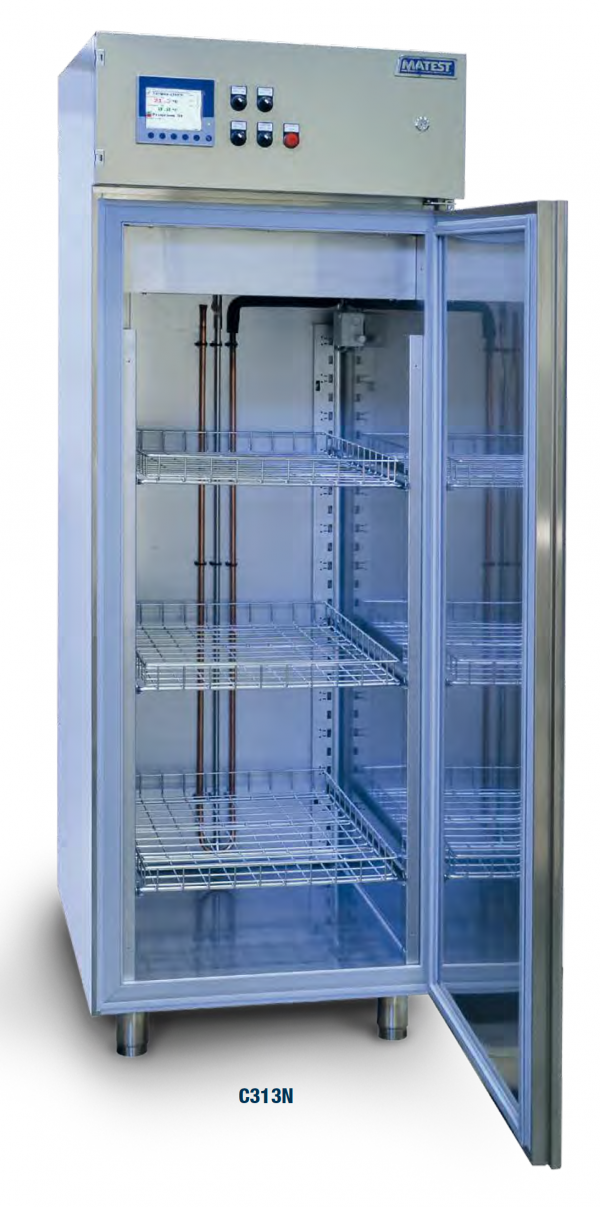

C313N
TEMPERATURE AND HUMIDITY CONTROLLED
CABINET 535 LITRES CAPACITY
STANDARDS: EN 196-1, EN 1367-1, EN 12390-2, EN 12390-9
Designed for all research and control laboratories to perform: cold
and/or hot temperature measurement at controlled humidity conditions,
any kind of freezing/thawing tests and accelerated curing
tests. Used to cure concrete (EN 12390-2) and cement specimens
(EN 196-1) and analyze the behavior to freezing and thawing of
aggregates (EN 1367-1) and concrete (EN 12390-9).
Internal and external frame is made of stainless steel AISI 304.
Polyurethane insulation: 60 mm thick.
Internal ventilation.
Door with 180° opening angle, equipped magnetic gasket and
integrated heater against freezing.
Shelves can be taken off and adjustable in height; adjustable feet.
Temperature and humidity sensors wall mounted inside cabinet
The cabinet is supplied with a two stage filter; mechanic and
mixed ionic/cationic resins. It works with demineralized, softened
waters, or tap water with hardness rate up to 300 PPM assuring an
excellent functioning along the time.
Equipped with microprocessor temperature/humidity controller with
integrated cycles multiple segments programmer.
panel mount 144×130 mm format
5″ color graphic display
50 programs with 100 segments and real time clock
Logging function with PC interface (optional)
Visual alarm for minimum and maximum temperature
Supplied complete with 3 adjustable shelves suitable to withstand
weights up to 40 kg
Inside dimensions: 590x670x1360 mm
Overall dimensions: 710x820x2080 mm
Power supply: 230V 1ph 50-60Hz 2570W
Weight: 170 kg approx.

C313-01N
TEMPERATURE AND HUMIDITY CONTROLLED
CABINET 1200 LITRES CAPACITY
Same as C313N model, but with an internal capacity of 1200 liters.
Internal ventilation.
Door with 180° opening angle, equipped magnetic gasket and
integrated heater against freezing.
Shelves can be taken off and adjustable in height; adjustable feet.
Temperature and humidity sensors wall mounted inside cabinet
Visual alarm for minimum and maximum temperature
Supplied complete with 6 adjustable shelves suitable to suitable to
withstand weights up to 40 kg.
Inside dimensions: 1300x670x1360 mm
Overall dimensions: 1500x820x2080 mm
Power supply: 230V 1ph 50-60Hz 2900W
Weight: 230 kg approx.
