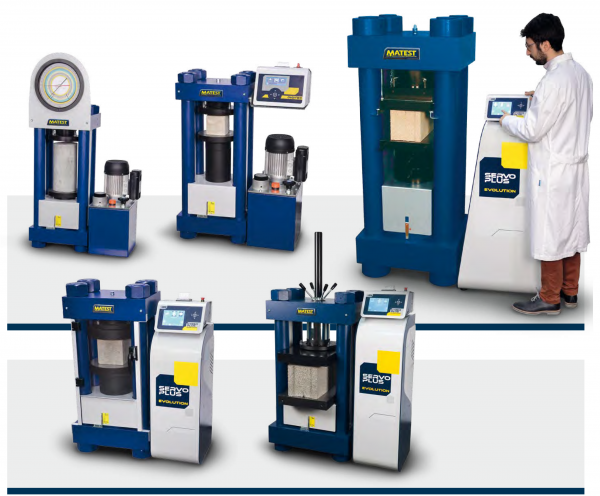

COMPRESSION TESTING MACHINES, FOUR COLUMNS PRESTRESSED FRAME FOR PRODUCTION ROUTINE TESTS

Category:

These models are described at p. 230…259
STANDARDS: ASTM C39 | BS 1610 | NF P18-411 | AASHTO T22 | GOST 10180-2012

MAIN FEATURES
Compression platens are surface hardened over 55 HRC
and rectified.
Device to check piston’s excursion during test.
The columns are prestressed to provide a very high
rigidity.
Piston having 50 mm stroke and cylinder are coupled
with high quality packing set.
The tank has an oil level and oil discharge.
Dial speed selector to display, pre-select and control oil
flow.
Multipiston power pump assuring continuity of delivery.
Fast approach ram device to avoid dead times.
Ball seating is accurately machined.

Available capacities:
1300 kN | 1500 kN | 2000 kN | 2000 kN BLOCKS | 3000 kN | 3000 kN BLOCKS | 5000 kN
Motorized or hand operated models.
Load measuring system: bourdon type gauges, DIGITEC or CYBER-PLUS graphic display units, AUTOTEC or SERVO-PLUS EVOLUTION
servo-controlled automatic systems.
