8 channel servo controlled unit for a fully automatic execution of the
test. The machine comprises:
– Cyber-Plus Evolution C109N data acquisition system
– Multi-piston electric pump with variable flow (see mod. C114)
driven by a microprocessor (reliable and noiseless system, also
for intensive and extended use)
Power supply: 230V 1ph 50Hz 750W
Dimensions: 420x290x1120 mm
Weight: 60 kg approx.
ACCESSORIES
C104-04

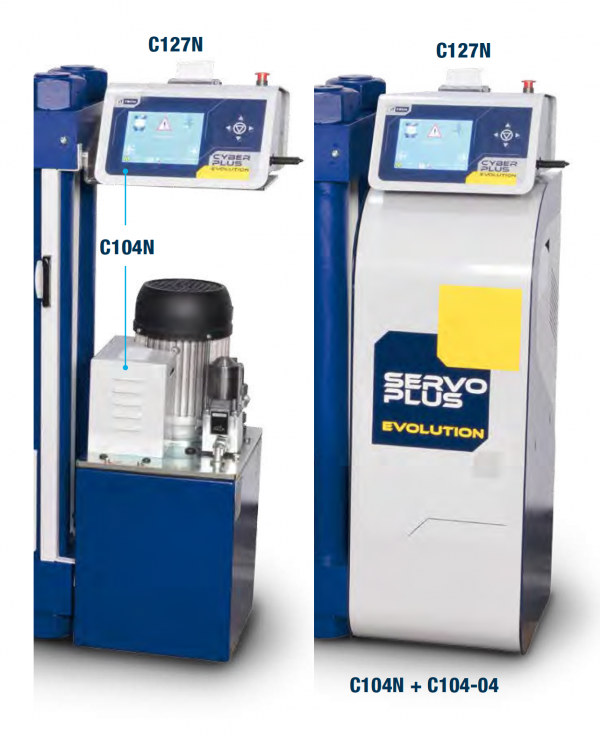

CONSOLE HOUSING THE SERVO-PLUS EVOLUTION
The pump assembly lined with sound-proofing material for
noise reducion and the digital system are encased to enhance the
design and look of the machine.
C104-09
CONFIGURATION OF ADVANCED PARAMETERS THROUGH TESTS
ON REAL SAMPLES
Valid for all MATEST testing machines equipped with SERVOPLUS/
CYBERPLUS controlling unit.
When ordered, the setting of the advanced parameters becomes
a phase of the production process. Through tests on real samples,
it’s possible to define in details the behavior of the tested material
and therefore set into the SERVOPLUS/CYBERPLUS controlling units
advanced parameters accordingly. For the setting of the advanced
parameters, it’s necessary to have some real samples available at
MATEST’s premises.
