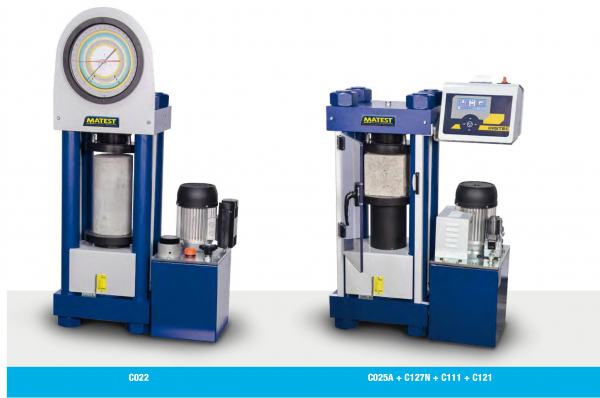

COMPRESSION TESTING MACHINE 1300 KN CAPACITY TO TEST CYLINDERS UP TO Ø 160X320 MM AND CUBES UP TO 150 MM SIDE

Category:

STANDARDS: ASTM C39 | AASHTO T22 | NF P18-411 | BS 1610 | GOST 10180-2012

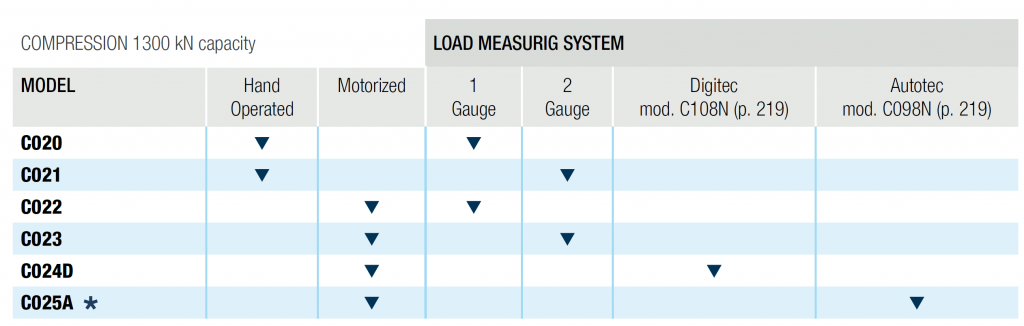

DIAL GAUGES MODELS
Gauges Ø 250 mm with specific
resistance scales for cubes 150 mm
and cylinders Ø 150 – 160 mm
Gauges divisions: 1300 kN div. 4 kN
600 kN div. 2 kN

MAIN FEATURES FOR ALL MODELS
Max. vertical daylight: 336 mm
Horizontal daylight between columns: 270 mm
Compression platens Ø 216 mm
High stiffness and heavy weight 4 columns frame
(german-style).
Calibration accuracy: Class 1
Max. ram travel 55 mm approx.
Power supply (motorized models): 230V 1ph 50Hz 750W
Dimensions: 900x730x280 mm approx.
Weight: 580…620 kg
