COMPRESSION DEVICES

Category:

To be positioned between the compression platens of the machine;
they fit perfectly without removing anything and without adding any
distance piece.
Dimensions: 153x153x185 mm

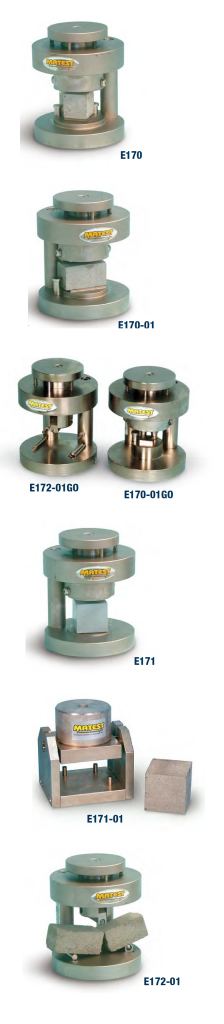

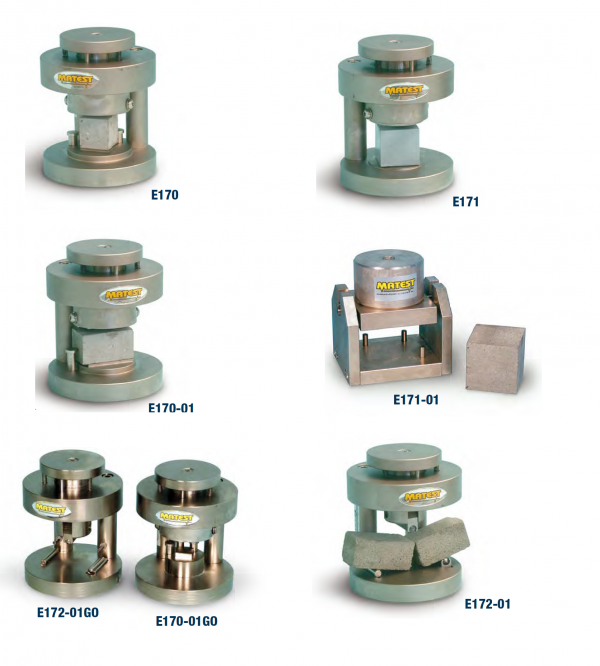

MODELS

E170
COMPRESSION DEVICE FOR PORTIONS OF
40.1X40X160 MM PRISM BROKEN IN FLEXURE
STANDARDS: EN 196-1 | ASTM C349 | ISO 679
The compression platens have hardness 60 HRC and upper platen
is seat ball assembled. The centering plug is distant 10 mm from
the compression platen, as requested by
the EN 196-1 Specification. Cadmium
plated for rust protection.
Weight: 12 kg approx.

ACCESSORY FOR MOD. E170
E170-11 CENTERING PLUG
STANDARD: EN 1015-11
Fixed on the E170 device in replacement of the standard
centering plug, it modifies the distance from the compression
platen to 16 mm, as requested by EN 1015-11
Specification.

E170-01
COMPRESSION DEVICE FOR PORTIONS OF
40.1X40X160 MM PRISM BROKEN IN FLEXURE
STANDARD: DIN 1164
Identical to mod. E170 but with compression
platens having 40×62.5 mm
size, as requested by DIN Standards.
Weight: 12 kg approx.

E170-01GO
COMPRESSION DEVICE FOR
PORTIONS OF 20X20X100 MM PRISM BROKEN IN
FLEXURE
STANDARD: GOST 26798.1
Identical to mod. E170 but with compression platens as requested
by Russian Standard.

E171
COMPRESSION DEVICE FOR CUBE 50 MM AND
2” SIDE
STANDARD: ASTM C109, C1194
Platens diameter: 72 mm and upper platen is seat ball assembled.
This device can be used also to test cores max. 50 mm height.
Dimensions: 153x153x185 mm
Weight: 12 kg approx.

E171-01
COMPRESSION DEVICE FOR CUBE 70.7 MM SIDE
STANDARD: BS 4550
It can be used also to test cores max. 70 mm height
Dimensions: 150x130x185
Weight: 9 kg approx.

E172-01
FLEXURE DEVICE FOR 40.1X40X160 MM PRISMS
STANDARDS: EN 196-1 | EN 1015-11 | DIN 1164 | ISO 679
Upper bearer is seat ball assembled.
The distance between lower bearers is 100 mm and one of them
has a spherical seat. Cadmium plated for rust protection.
Dimensions: 160x153x185 mm
Weight: 11 kg approx.

E172-01GO
FLEXURE DEVICE FOR 20X20X100 MM PRISMS
STANDARD: GOST 26798.1
Identical to mod. E172-01 but with bearers as requested by
Russian Standard.

E172-02
FLEXURE DEVICE FOR 40X40X160 MM PRISMS
STANDARD: ASTM C348
Identical to mod. E172-01 but lower bearers have distance of 119
mm as requested by ASTM Standard.
Weight: 11 kg approx.
