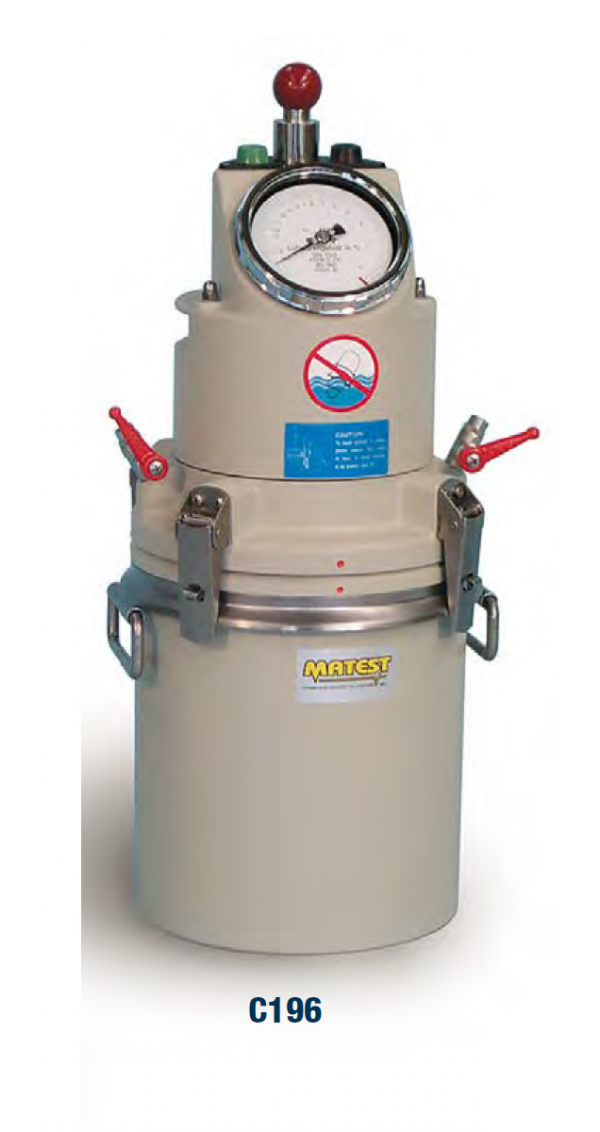

C196 AIR ENTRAINMENT METER, PRESSURE GAUGE TYPE 8 LITRES CAPACITY

Category:

STANDARDS: EN 12350-7 | DIN 1048 | ASTM C231 type B
It consists of an aluminium vessel with built in hand operated pressure
pump, connected to the measuring gauge showing directly the
air content in percentage.
Air content range: 0…10% div. 0.1% up to 8% and 0.5% over
Dimensions: Ø 250×450 mm
Weight: 12 kg approx.

C197
AIR ENTRAINMENT METER, PRESSURE GAUGE TYPE
8 LITRES, ELECTRIC
Identical to mod. C196 but with built in automatic electric air compressor
giving air pressure, and keeping it constant all along the test.
Power supply: 230V 1ph 50-60Hz
Dimensions: Ø 250×450 mm
Weight: 14 kg approx.

ACCESSORY
C197-01
FILLING HOPPER for the air
entrainment meters C196
and C197
