B264 KIT DIRECT TENSION TESTING KIT – DTT

Categories: , ,

STANDARDS: EN 12697-26 Annex E – Test applying direct tension to cylindrical specimens (DT-CY) or to prismatic specimens (DT-PR)
EN 12697-26 Annex D – Direct tension-compression test on cylindrical specimens (DTC-CY)
AASHTO TP 107-14 Standard Method of Test for Determining the Damage Characteristic Curve of Asphalt Mixtures from Direct
Tension Cyclic Fatigue Tests

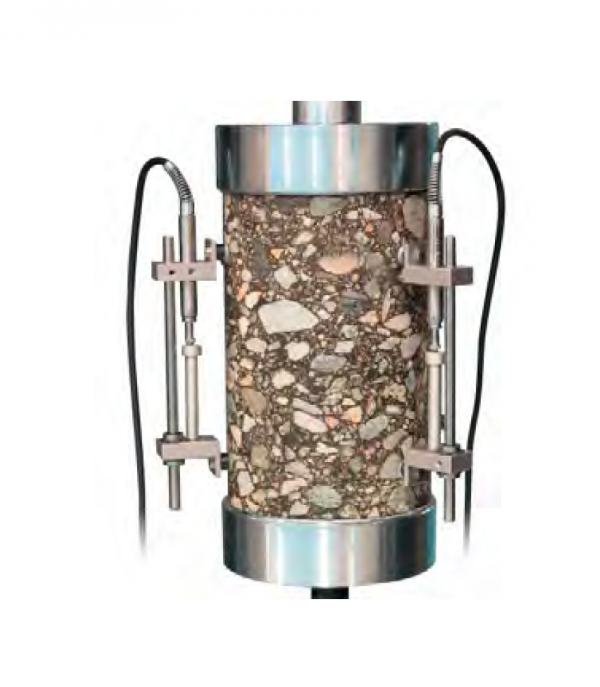

B264 KIT Direct tension testing kit
Comprises:
B261-02 Spherical seat coupling (2 pieces)
B261-03 100 mm tension platen (2 pieces)

ACCESSORIES
B253-04 LVDT mounting (3 pieces needed) jig
B290-06 LVDT (1 mm) (3 pieces needed)
B253-05 Screwdriver hex bit with spherical head size 2 mm
B201-52 5 Minute, two part epoxy 24 ml
B202 Gauge point fixing jig
B202-04 Spacer for 130 mm specimen height to be used with
B202 (optional)
B253-53 Gauge Point (24 pieces)
B261-01 B230 tension base (needed accessory for DTS-30)

AASHTO TP 107-14 ON SMALL SPECIMENS | DTS-30/130
To test 38 mm (diameter) x 110 mm (h) specimens with DTS-30/130
unit, the following items are required:
B200-11 38MM AMPT tension platen (2 pieces needed)
B261-02 Spherical seat coupling
B202 Gauge Point Fixing Jig
B202-02 Spacer for 110 mm specimen height to be used with
gauge point fixing jig B202
B202-03 38 mm and 50 mm diameter specimen – extension for
gauge point fixing jig plungers B202
B253-04 LVDT mounting (3 pieces needed) jig
B290-06 LVDT (1 mm) (3 pieces needed)
B253-05 Screwdriver hex bit with spherical head size 2 mm
B201-52 5 Minute, two part epoxy 24 ml
B253-53 Gauge Point (24 pieces)

To test 50 mm (diameter) x 135 mm (h) specimens with
DTS-30/130 unit, the following items are required:
B200-12 50MM AMPT tension platen (2 pieces needed)
B261-02 Spherical seat coupling
B202 Gauge Point Fixing Jig
B202-01 Spacer for 135 mm specimen height to be used with
gauge point fixing jig B202
B202-03 38 mm and 50 mm diameter specimen – extension for
gauge point fixing jig plungers B202
B253-04 LVDT mounting jig (3 pieces needed)
B290-06 LVDT (1 mm) (3 pieces needed)
B253-05 Screwdriver hex bit with spherical head size 2 mm
B201-52 5 Minute, two part epoxy 24 ml
B253-53 Gauge Point (24 pieces)
