B064 KIT ROTATING SHELF THIN FILM OVEN DETERMINATION OF LOSS IN MASS AND RESISTANCE TO HARDENING (TFOT)

Category:

STANDARDS: EN 12607-2, EN 13303 | CNR N° 50 | ASTM D6, D1754 | AASHTO T47, T179 | BS 2000 | UNE 7110 | NF T66-011
Internal chamber and external frame all made of stainless steel,
double wall insulation with fiberglass, double door. Temperature
control by digital thermoregulator. The oven is equipped of a dual
safety thermostat to prevent accidental over-heatings. The plate
rotates at 5-6 rpm. Supplied complete with glass control thermometer
ASTM 13C, +155 to +170 °C subd 0.5 °C.The oven is supplied without rotating shelf
and accessories, that must be ordered separately.
Power supply: 230V 1ph 50Hz 1500W
Internal dimensions: 330x330x330 mm
Outside dimensions: 460x450x700 mm
Weight: 40 kg approx.

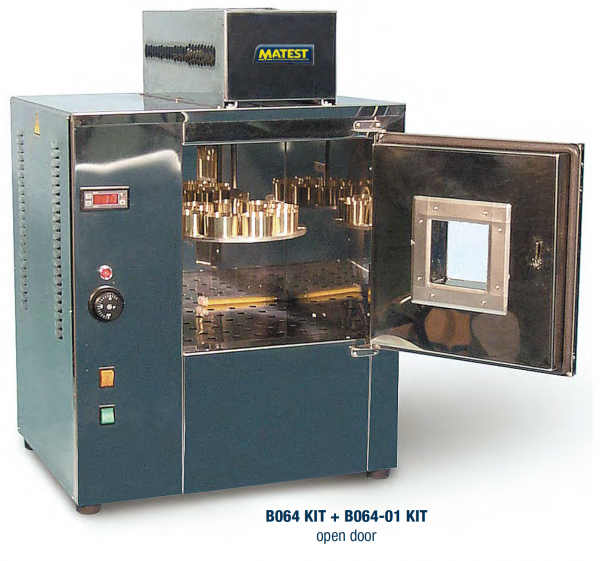

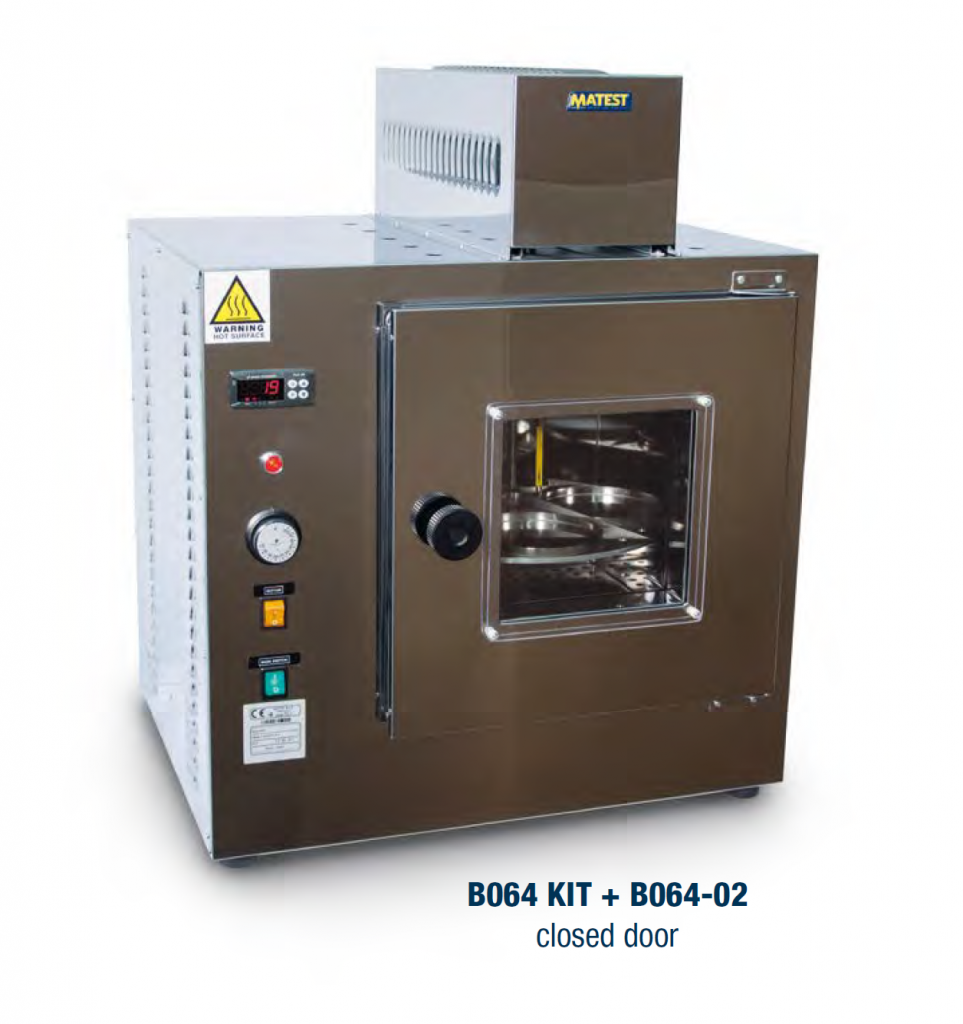

The oven mod. B064 kit can be equipped in two versions, with
the following accessories:

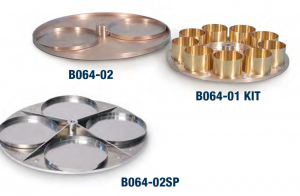

B064-01 KIT
Rotating shelf complete with 9 containers Ø 55×35 mm for the
Determination of Loss on Heating to: EN 13303 | ASTM D 6 BS
2000 | NF T066-011 | AASHTO T47 | CNR N° 50
NF T066-011 | AASHTO T47 Standards.
B064-02
Rotating shelf, complete with 2 containers Ø 140×9.5 mm for
the Determination of Thin Film to: EN 12607-2 | ASTM D1754
AASHTO T149 | UNE 7110 Standards.
As alternative
B064-02 SP
Rotating shelf, same as B064-02, but complete with 4 containers.

SPARES
V122-05 Brass container Ø 55×35 mm
B064-04 Stainless steel container Ø 140×9.5 mm
