EFFECT OF HEAT AND AIR ON A MOVING FILM OF ASPHALT

Category:

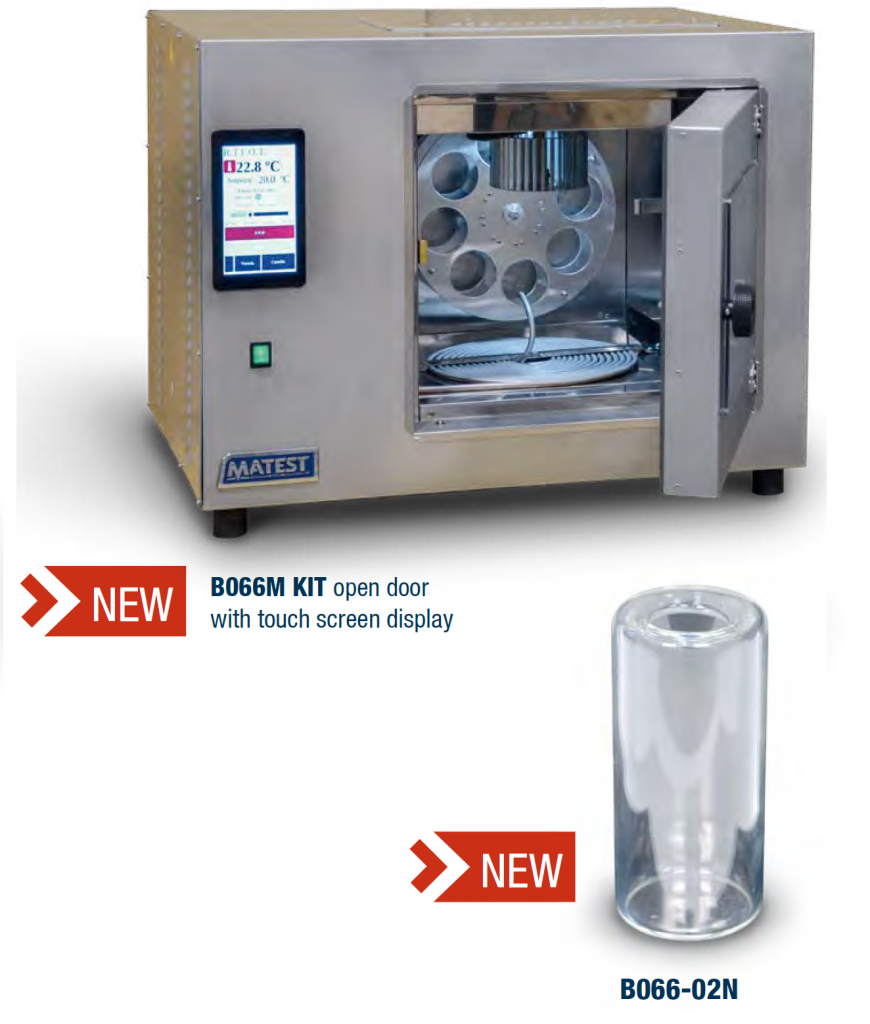

B066M KIT
ROLLING THIN-FILM OVEN HIGH PERFORMANCE
STANDARDS: EN 12607-1 | ASTM D2872 | AASHTO T240
New model with enhanced performance and reliable technology
needed to study the aging phenomena on traditional and innovative
bituminous binders.
The frame and the internal chamber are made of high quality stainless
steel with a large door to detect the test room.
This new version is totally controlled by 7’’ digital touch-screen
panel in terms of test temperatures, start and stop carriage rotation
and ventilation system.
Also, when the test starts, the internal room temperature, the air
flow and the carriage speed (15 rpm ± 0.2) are shown in real time
on the digital display.
Supplied complete with digital flow meter, precision digital
thermostat to maintain 163 °C temperature, control
thermometer ASTM 13C, ventilation device, eight glass
containers Ø 64×140 mm. The unit includes a dual safety
thermostat to prevent overheating.
Power supply: 230V 1ph 50Hz 1700W
Dimensions: 620x620x910 mm
Weight: 55 kg approx.

MAIN FEATURES
7’’ Touch-screen color display.
Temperature ramp designed to achieve the target
temperature within 10 minutes when the door is
closed.
Flow meter range: from 200 to 14.000 mm/min.
Temperature accuracy ± 0.1 °C when the target
temperature test is achieved.

ACCESSORY

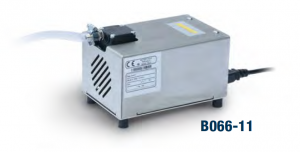

B066-11 DIAPHRAGM PUMP, free air displacement 6 litres/min,
max. pressure 2.4 bar, ultimate vacuum 100 mbar.
Power supply: 230V 1ph 50Hz 65W
SPARES
B066-02N Glass container Ø 64×140 mm, top quality product with
improved finishing.
B064-03 Thermometer, ASTM 13C.
Range: +155 °C to +170 °C div. 0.5 °C.

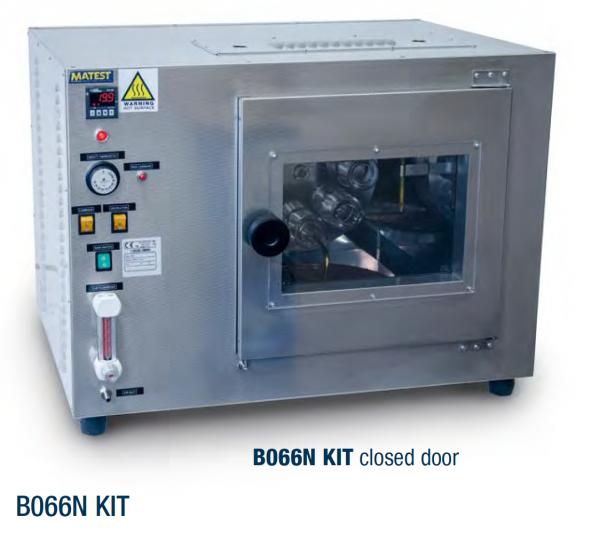

B066N KIT
ROLLING THIN-FILM OVEN RTFOT | ASTM | EN
STANDARDS: EN 12607-1 | ASTM D2872 | AASHTO T240
Used to measure the air and heat effect on a moving film of asphaltic
semisolid materials. External frame and internal chamber are stainless
steel made with insulated fiberglass intermediate chamber.
Rotation speed of the plate: 15 rpm ± 0.2.
Provided with a large glass door for inspections. The oven must be
connected to an air compressor 2 bar max. pressure, or to a diaphragm
pump (see accessory). Supplied complete with flow meter,
precision digital thermostat to maintain 163 °C temperature, control
thermometer ASTM 13C,
ventilation device, eight glass containers Ø 64×140 mm.
The oven is equipped with a dual safety thermostat to prevent accidental
over-heatings.
Power supply: 230V 1ph 50Hz 1700W
Dimensions: 620x620x910 mm
Weight: 55 kg approx.
