STANDARDS: EN 12272-3 | NF P98-274-1
Used to evaluate the global adhesion and
the active adhesion between bitumen and
aggregates for road surfaces realization.

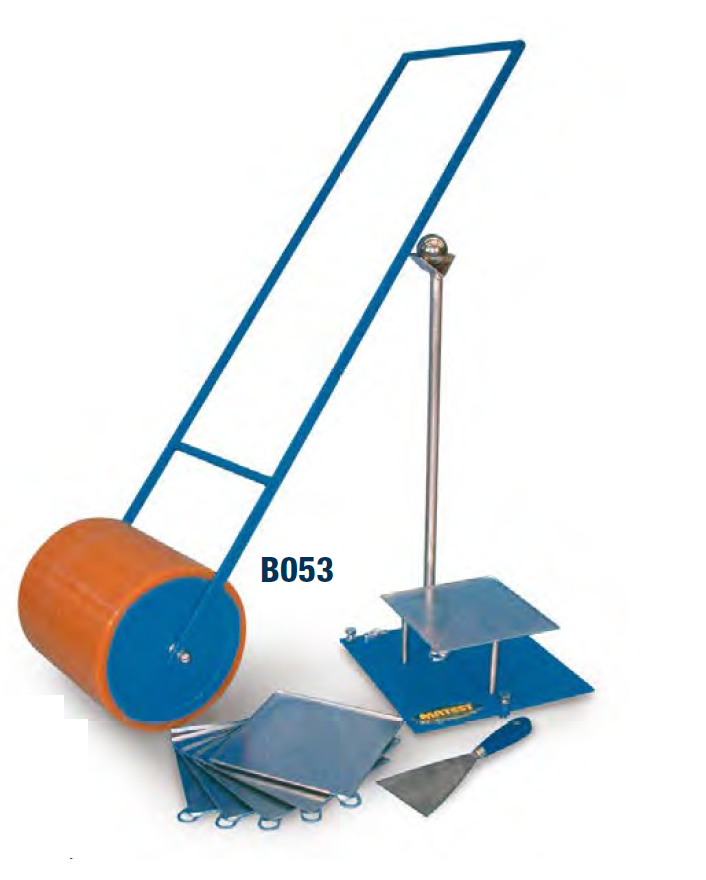

The equipment is formed by:
Six metal test plates
Steel ball weighing 512 g
Metallic base with three
vertical support points and
metallic rod 500 mm high
Metallic hand operated roller,
rubber lined with lead shots ballast.
Weight: 40 kg approx.
SPARE: B053-01 Metal test plate.
