STANDARDS: ISSA TB139, comparable to EN 12274-4 | ASTM D3910
This instrument is used for cohesion tests on the mix, and to determine
the proper consistency or mix design for a slurry seal mixture.
The pneumatic cylinder incorporated into the unit applies a pressure
to the sample. A hand torque tester supplied with the cohesion
unit, measures the torquing strength by determining the complete
solidification of the mix.
Supplied complete with torque wrench, 5 moulds Ø 60×6 mm,
5 moulds Ø 60×10 mm, 5 moulds Ø 70×6 mm,
5 moulds Ø 70×10 mm accessories, spare parts.
To perform the test an air pressure source is needed.
Dimensions: 400x250x300 mm approx.
Weight: 20 kg approx
ACCESSORIES
V206 AIR COMPRESSOR. 230V 50Hz 1ph.
SQUARE MOULD to EN 12274-4 with 4 holes to prepare the sample:
B053-12 MOULD 140x140x6.3 mm
B053-13 MOULD 140x140x10 mm
B053-14 MOULD 200x200x13 mm
B053-15 MOULD 200x200x19 mm
SPARES
B053-16 MOULD Ø 60×6 mm (2 pieces)
B053-17 MOULD Ø 60×10 mm (2 pieces)
B053-18 MOULD Ø 70×6 mm (2 pieces)
B053-19 MOULD Ø 70×10 mm (2 pieces)

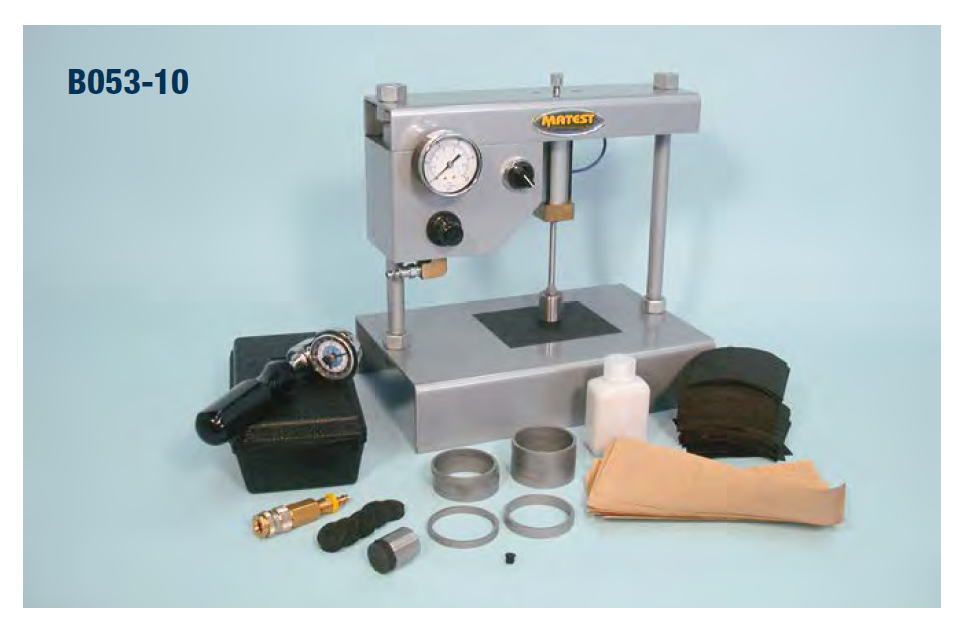

B053-10 COHESION TESTER
