STANDARDS: ASTM D6926 | Comparable to AASHTO T 245

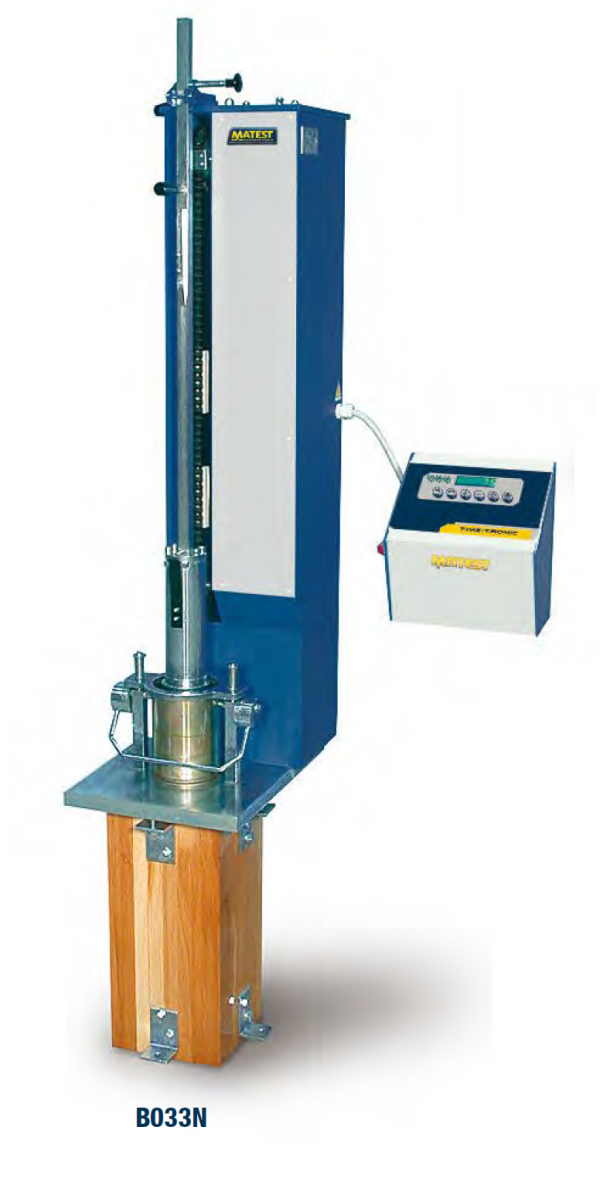

This ruggedly constructed machine has been designed to eliminate
the laborious process of hand compaction. It automatically compacts
the specimen and stops off the motor after the preset number
of strokes has been completed on the automatic digital display
counter. The trip mechanism is structured so that the hammer falls
at the same height at every stroke. The unit incorporates a compaction
wooden pedestal. The drive mechanism lifts the 4.53 kg.
compaction hammer, plated against corrosion, to the height of
457 mm and allows free fall at nominal 55 blows per minute.
The control panel can be wall fixed or placed on a bench.
This compactor is suitable only for Marshall moulds Ø 4“.
The compactor is supplied complete except for the mould which
must be ordered separately.
It cannot be sold in CE markets without safety guards
(see mod. B033-01N and B033-03)
Power supply: 230V 1ph 50Hz 300W
Dimensions: 540x400x1600 mm
Weight: 95 kg approx.
B033-01N
AUTOMATIC MARSHALL ASTM COMPACTOR
FOR Ø 4” MOULDS
Same as mod. B033N, but equipped with safety guard, conforming
to CE Safety Directive.
When opening the guard during Compactor working, a microswitch
automatically stops the unit.
ACCESSORIES
B033-03
SOUNDPROOF SECURITY CABINET
Steel made with microswitch, complying to
CE Safety Directive, lined with sound-proofing
material for noise reduction.
Accessory for B033N model.
If the door is opened while the Compactor is
working, it automatically stops.
Dimensions: 660x660x1900 mm
Weight: 70 kg approx.
B033-04
STEEL PLATE, Ø 100×50 mm,
to heat the Compaction’s Hammer.
SPARE
B035-12N Compaction Hammer
Complete for B033N, B033-01N Compactors.
