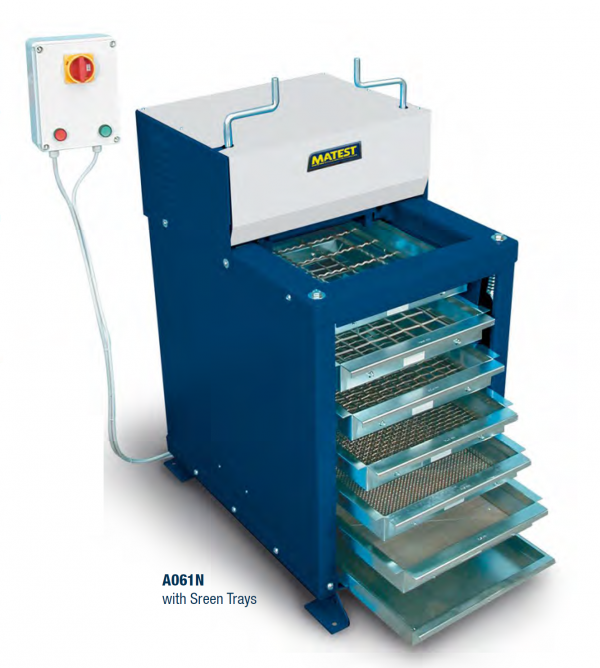

A061N HIGH CAPACITY SIEVE SHAKER

Categories: ,

STANDARDS: EN 932-5 | ISO 3310-1
Designed for sieving considerable quantities of
any material. The screen shaker accepts up to 30
litres (from 60 to 70 kg) of sample. Sturdy made,
the machine can hold six screen trays and dust
pan. Supplied complete with dust pan, but
without screen trays (to be ordered separately).
It cannot be sold in CE markets without protection
(see accessories).
Power supply: 230V 50Hz 1ph 750W
Dimensions: 585x790x850 mm
Weight: 180 kg approx.

ACCESSORIES

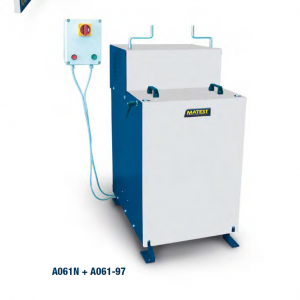

A061-97
SAFETY DOORS, upper and frontal, complete with microswitch, in
compliance with to CE Safety Directive.
If the door is opened while the shaker is working, it automatically
stops. The doors also protect from dust.

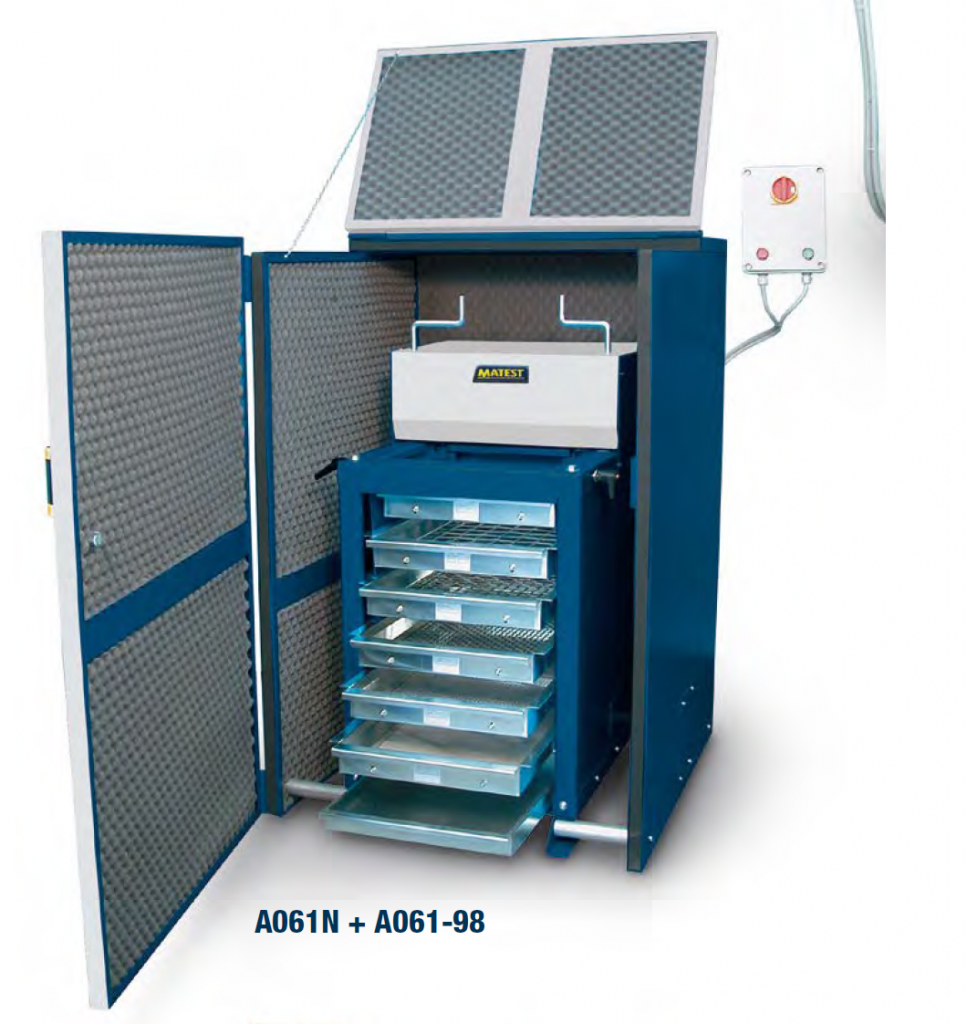

A061-98
SECURITY CABINET, steel made with microswitch, complying to
CE Safety Directive, lined with sound-proofing material for noise
reduction. If the door is opened while the shaker is working, it
automatically stops.
The cabinet also protects from dust.
Overall dimensions: 920x1000x1400 mm
A061-03
TRAY ONLY, without mesh, size 457x660x75 mm, suitable for mesh
openings from 125 to 6.3 mm.
A061-05
TRAY ONLY, without mesh, size 457x660x75 mm, suitable for mesh
openings from 5.6 to 1 mm.
A061-06
TRAY ONLY, without mesh, size 457x660x75 mm, suitable for mesh
openings from 0.850 to 0.063 mm.

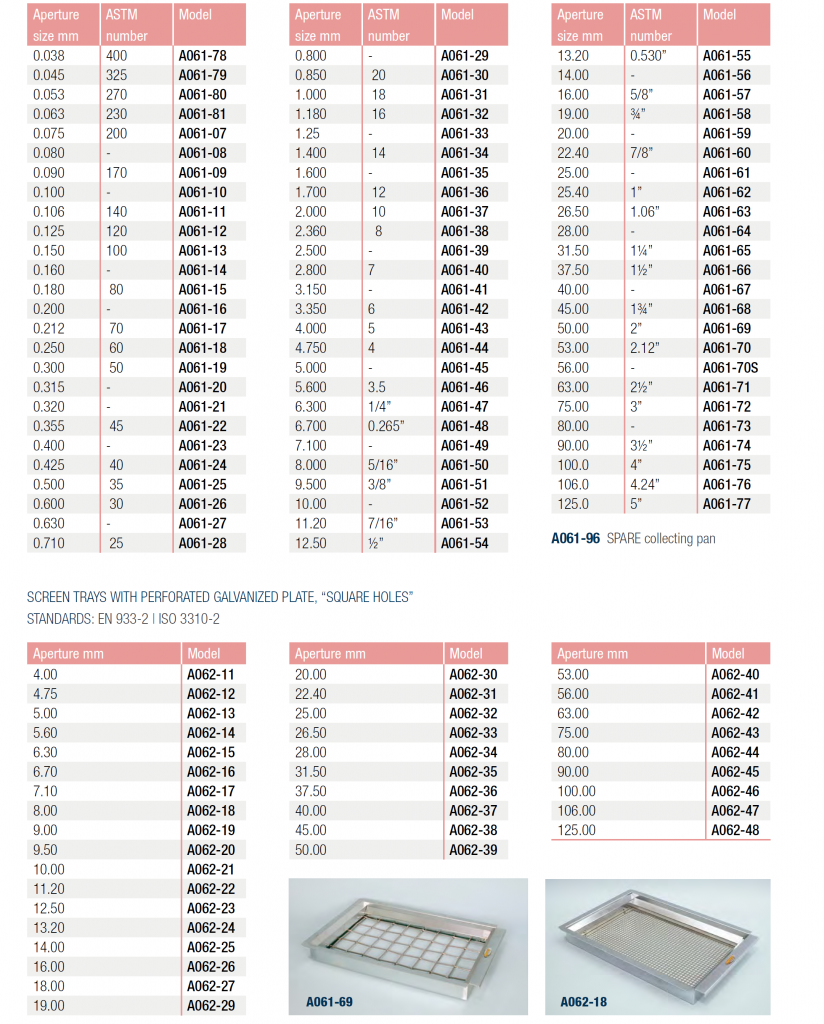

SCREEN TRAYS FOR SIEVE SHAKER A061N, SIZE 457X660X75 MM, ROBUST STEEL GALVANIZED FRAME. STAINLESS STEEL WOVEN WIRE MESH.
STANDARDS: EN 933-2 | ASTM E11 | ISO 3310-1
