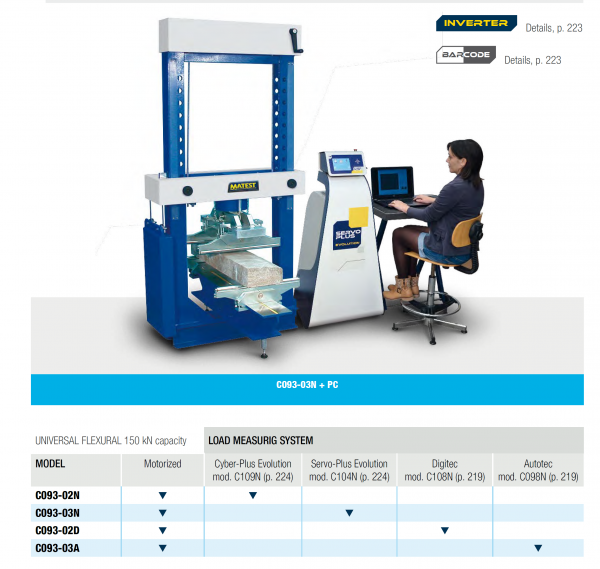

UNIVERSAL FLEXURAL AND TRANSVERSE MACHINE 150 KN CAPACITY FOR FLEXURAL TESTS ON CONCERTE BEAM SPECIMENS MAX. SIZE 200X200X800 MM, FLAT BLOCKS, FLAGSTONES, KERBS, TILES, SLABS, MASONRY UNITS, PIPES, AND ANY TYPE OF MATERIAL HAVING MAX. SIZE 550XH550 MM (LOWER ROLLERS MAX. LENGTH 1325 MM)

Category:

STANDARDS: EN 12390-5 | EN 1340:4 | ASTM C78, C293 | AASHTO T97 | BS 1881:118, 6073-1, 7263  150 KN CAPACITY

MAIN FEATURES
Vertical daylight between upper/lower rollers:
max. 825 – min. 65 mm adjustable each 76 mm by
hand winch with counterweights
Rollers dimensions: Ø 40×613 mm
Complete with 4 adjustable and articulated rollers for
two point loading
Distance between lower rollers from 75 to 1325 mm
Distance between upper rollers from 75 to 575 mm
Ram travel 110 mm approx.
Simple action piston with counterweights to optimize frictions
Power supply: 230V 1ph 50Hz 750W
Dimensions: 970x1400x2000 mm
Weight: 800…850 kg approx.

ACCESSORIES FOR UNIVERSAL FLEXURAL 150 kN
C091-13 UPPER TAMPER (steel made), for concrete KERBS tests.
The tamper is mounted on a rotating coupling and fixed to
the upper part of the machine to apply a flexural strength
on three points on the kerb, without any torsional stress.
STANDARD: EN 1340

C093-11 DEVICE for flexural tests on
clay blocks for flooring.
STANDARD: EN 15037
UNI 9730-3

C127N GRAPHIC PRINTER on thermo-paper on board

C115-01 TWO WAY HYDRAULIC VALVE,
connected to the motorized
pumping unit of the machine
to activate a second frame.
Technical details: see p. 318

C097-01 DUAL LOW CAPACITY DIGITAL RANGE, complete with
appropriate pressure transducer.
Range selectable from 10 kN to 100 kN.
Technical details: see p. 313

C097-05 CALIBRATION CLASS 1, starting from 1% of the full
range. With a special calibration procedure it is possible
to grant Class 1 practically on the full range of the
flexural machine.

C100 SPLITTING TENSILE test device for cylinders.
EN 12390-6 | ASTM C496
Technical details and other models: see p. 314

C103 SPLITTING TENSILE test device for self blocking pavers
and cubes. EN 1338, 12390-6
Technical details: see p. 314

E170 COMPRESSION DEVICE to test mortar specimens
40.1×40 mm EN 196 | ASTM C349
Technical details and other models: see p. 315

E172-01 FLEXURE DEVICE for mortar prisms 40.1x40x160 mm.
EN 196 / EN ISO 679 (it can be used only with the dual
low capacity digital range 0-15kN).
Technical details and other models: see p. 428
