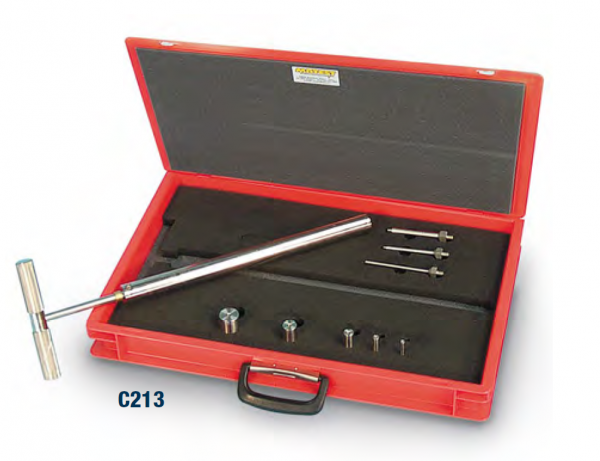

C213
CONCRETE PENETROMETER
Used to determine the setting time of the mortar fraction in concrete
mixes with slump greater than zero, by testing mortar sieved from
mix. The apparatus consists of a spring penetrometer (capacity
100 kgf, precision 1 kgf) and six interchangeable stainless steel
needle pointers of 16-32-65-160-325-650 mm2 area. A sliding
ring indicates the reached load on the handle of the penetrometer.
Supplied complete with carrying case.
Dimensions: 450x160x70 mm
Weight: 5 kg approx.
SETTING TIME OF CONCRETE BY PENETRATION STANDARDS: ASTM C403 | AASHTO T197 | UNI 7123
