This 4 cells capacity stand is designed to perform both constant
head and falling head permeability tests on compacted granular soil
samples.
The stand consists of a metal frame with water tank adjustable in
height between 1350 and 3450 mm for constant head tests. Supplied
complete with tubes, graduated rules, piping, connectors and
cocks; but without permeameters to be ordered separately.
The stand can hold up to 4 permeameters having Ø 4” or 6” to
perform different types of tests at the same time.
Dimensions: 1050x900x2000/3850 mm
Weight: 75 kg approx.

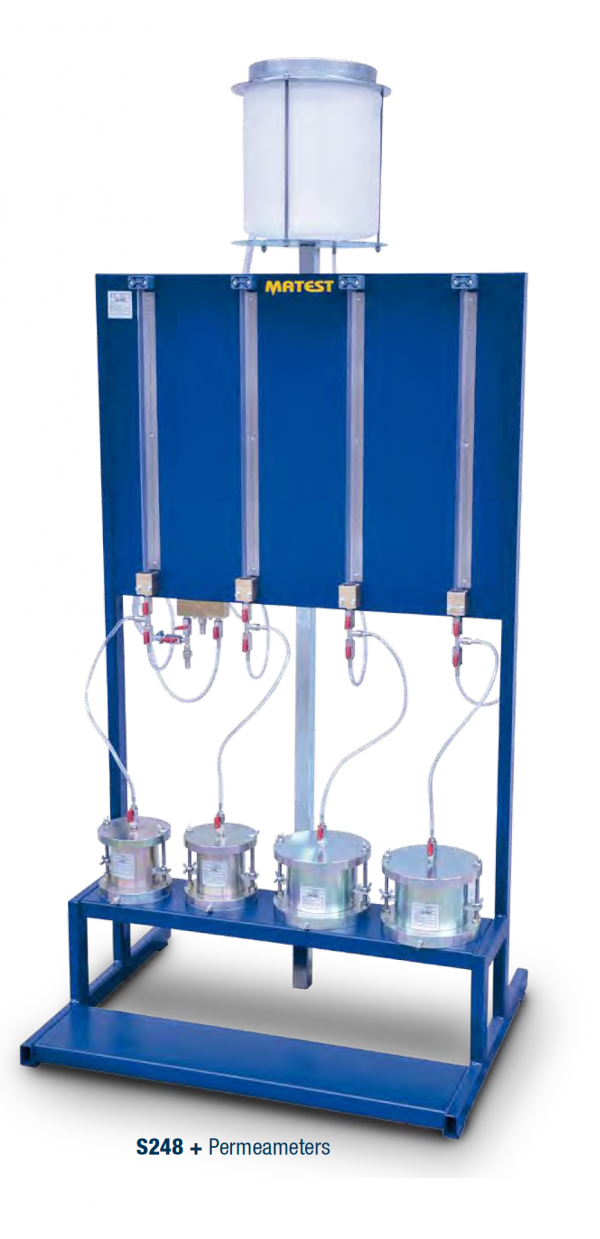

S248 PERMEAMETER STAND 4 CELL CAPACITY FOR CONSTANT AND FALLING HEAD TESTS
