STANDARD: CEN ISO/TS 17892-11
Used for determining permeability to water of soil gravel, clay, sand
samples. Supplied complete with clamped upper and lower plate
giving the possibility to perform permeability tests also on compacted
samples, water inlet with valve, water outlet, two perforated
upper and lower plates, two stainless steel screens.
Stell made, galvanized against corrosion.
MODELS
S252 COMPACTION PERMEAMETER Ø 4” complete.
Weight: 8 kg approx.

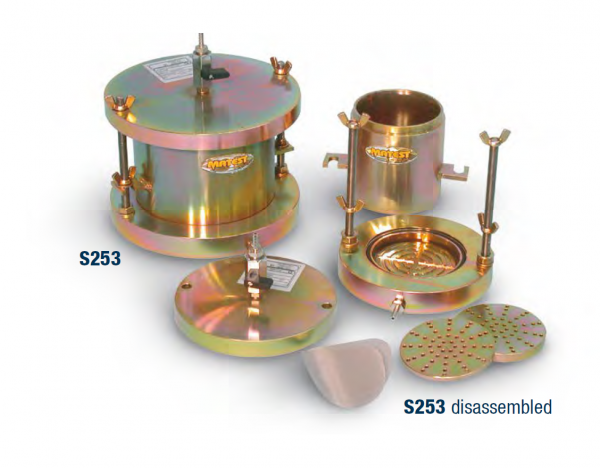

S253 COMPACTION PERMEAMETER Ø 6” complete.
Weight: 16 kg approx.
ACCESSORIES for S252
S252-01 PLEIN BASE and COLLAR for compaction test before the
permeability test
S252-02 MOULD BODY with two lateral water inlet/outlet for test
with piezometric measurement
ACCESSORIES for S253
S253-01 PLEIN BASE and COLLAR for compaction test before the
permeability test
S253-02 MOULD BODY with two lateral water inlet/outlet for test
with piezometric measurement
ACCESSORIES
CUTTING COLLAR, coupled to the
Permeameter body, it gets easier
the soil sampling.
MODELS
S185-01 Ø 4” cutting collar
S200-09 Ø 6” cutting collar
