STANDARD: ASTM D5874-02

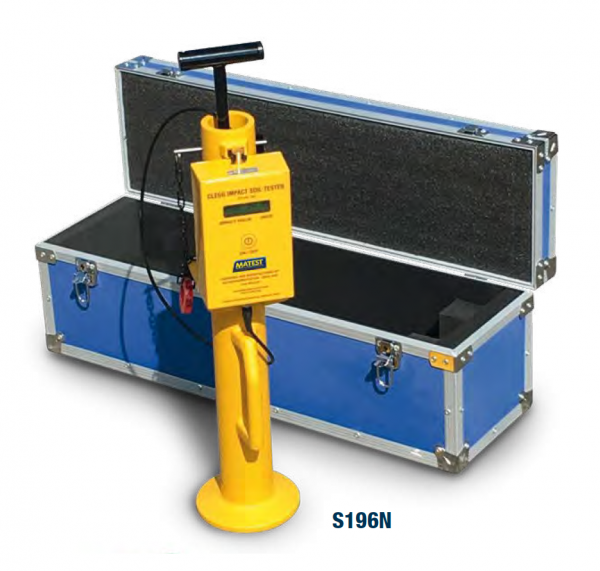

High quality genuine Clegg Impact Soil Tester manufactured under
license to Dr. Clegg Pty Ltd (the original inventors).
This apparatus is used to obtain an indication of the degree of
compaction of soil. Recorded valves can be directly correlated to the
CBR test method. User can quickly enable/disable the readout unit
to calculate the 4th drop %CBR following Dr. Clegg’s revised and
updated equation with inter-drop CIV check TREND algorithm.
Well-proven and stable components.
Easy to use, no set-up is required.
Back lit highly readable alpha numeric display.
Optionally fitted Bluetooth with PC Software to allow
data transfer of CIV, %CBR, time and data of up to
10000 drop tests.
Lightweight and sturdy aluminum framed transit and storage case
Dimensions: 710x130x130 mm
Weight: 6.2 kg approx.
