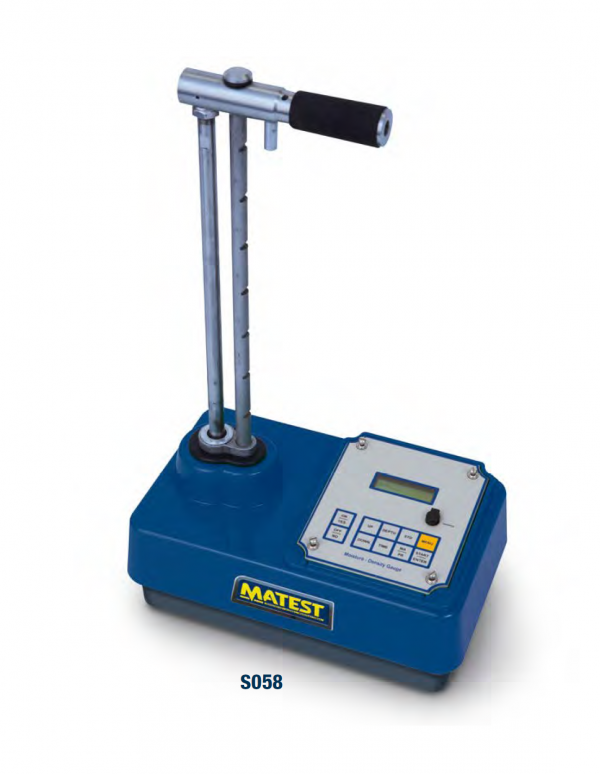

S058 NUCLEAR MOISTURE DENSITY GAUGE

Category:

STANDARDS: ASTM D6938, D2950, C1040 | AASHTO T310
This product is used to measure moisture density of the construction material from surface to 300 mm of depth. This device can
measure and display wet density and dry density, percent moisture,
moisture content and other necessary engineering parameters
related to density and moisture content of materials.
Software features include self-test, special calibration, asphalt

thin layer mode and built in diagnostics tests to help users identify
problems and solve them in the field.
Specifications:
– Density measurement range: 1120 to 2720 kg/m³
– Moisture measurement range: 0 to 640 kg/m³
– Precision at 2000 kg/m³, 150 mm – Depth: ± 3.5 kg/m³
– Moisture precision at 240 kg/m³: ± 4.42 kg/m³
Gauge dimensions: 580x310x220 mm
Weight: 14 kg approx.



ACCESSORIES for S058

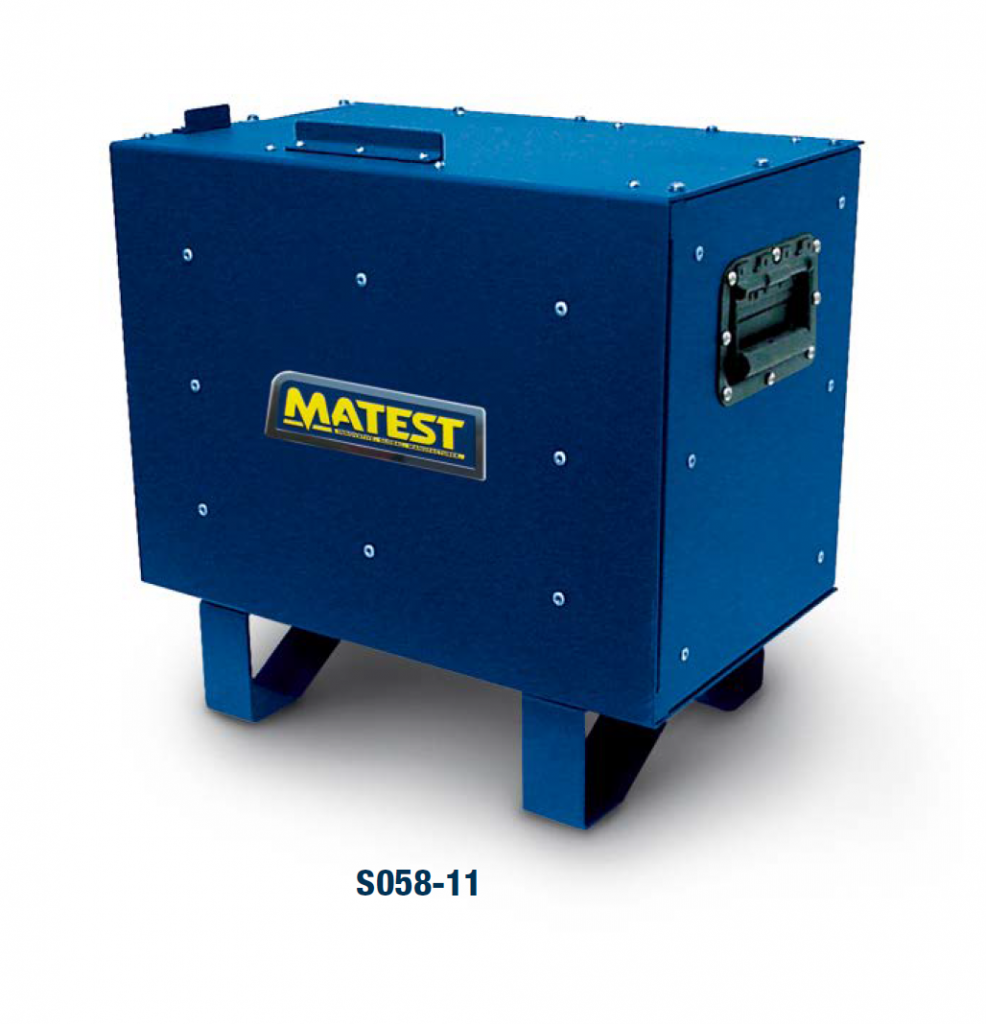

S058-11
NUCLEAR GAUGE VALIDATOR AND CALIBRATION DEVICE
STANDARDS: ASTM D6938, D2950 | AASHTO T310
This lightweight block may be used in the field to check the calibration
accuracy of the gauge and re-calibrate all model gauges, if
necessary. The software for determination of calibration constant is
user friendly and communicates directly with the gauge for download
of constants. The block is constructed for the rugged construction
industry with 1/8” Aluminum exterior with powder coat paint
and it is internally lined with shielding and composite compound in
secured enclosure.
For calibration, the user requires a PC with Windows® operating
system.
Dimensions: 480x460x300 mm
Weight: 38 kg approx.
S058-12 SOFTWARE to be used with the validator for calibrations.
