PENDULUM IMPACT CHARPY TESTERS FOR RESILIENCE TESTS

Category:

STANDARDS: EN 10045-1 | EN ISO 148-1 | ASTM E23 | BS 131

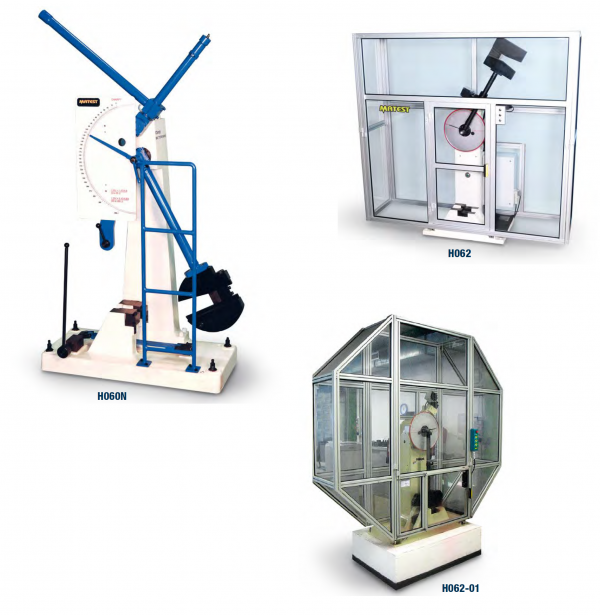

AVAILABLE MODELS

H060N
PENDULUM IMPACT CHARPY TESTER
HAND OPERATED
The tester is equipped with a falling pendulum hammer, able to
break, with a single blow, a sample carved in the middle and positioned
on two supports.
The test is carried out on a CHARPY sample in order to check the
energy absorbed during the impact, which is measured in JOULE.
The value stands for the impact strenght of the material (resilience).
– Cast iron frame
– Pendulum with hardened knife
– Brake device to stop the pendulum
– Impact energy 300J with 2J graduation
– Falling angle: 140°, Pendulum mass kg. 21.300
– Impact speed: 5.187 m/s
Supplied complete with knife-edge to perform the test as per
ASTM Standard
It cannot be sold in CE markets
Dimensions: 500x1000x1820 mm Weight: 400 kg approx.

H062
PENDULUM IMPACT CHARPY TESTER, MOTORIZED
Semi-automatic working and high energy capacity.
Motorized pendulum with immediate arm repositioning.
Mechanical safety with automatic insertion to the arm hooking.
Simple and fast utilization, ideal for routine tests.
Supplied complete with protection cage to CE Safety Directive.
Impact energy: 300J with 0.25J resolution.
Supplied complete with knife-edge to perform the test as per ASTM
Standard.
Power supply: 230V 1ph 50Hz 180W
Dimensions: 800x578x1400 mm Weight: 450 kg approx.

H062-01
PENDULUM IMPACT CHARPY TESTER, MOTORIZED,
DIGITAL, HIGH PERFORMANCE
Fully automatic working with immediate arm repositioning.
Machine for resilience tests with high impact energy.
Suitable for steels and alloys with high resilience values.
Data acquisition to PC through Software.
Safety cage aluminium and plexiglass made, with mechanical safety
and microswitch blocking the door when the arm is inserted.
Impact energy: 500J with 0.1J resolution.
Supplied complete with knife-edge to perform the test as per ASTM
Standard.
Power supply: 380V 3ph 50Hz 400W
Dimensions: 2200x800x2300 mm
Weight: 750 kg approx.

ACCESSORY
KNIFE-EDGE to perform resilience tests according to EN 10045-1,
EN ISO 148-1 and BS 131 Standards
H060-03 KNIFE-EDGE for H060N tester.
H062-03 KNIFE-EDGE for H062 and H062-01 testers.
