MECHANICAL STRAIN GAUGES

Category:

STANDARDS: ASTM C426 | BS 1881:206
Used to determine the strain (length changes) in concrete specimens and structures, rock strata, different parts of a structure, in remote areas
and under adverse conditions, using a single instrument. Different models are available with analogic or digital gauge, 100, 200, 300 mm
measuring length, depending on the standard length to be measured. The instrument can also be used for other structures like steel and wood.
The KIT comprises:

– Strain gauge (extensometer) complete with analogic or digital
indicator 0.001 mm graduations (see available models)
– Calibration bar used also to fix the datum disc on the structure.
– 50 datum discs.
– Adhesive compound for datum discs.
The whole contained in carrying case.
MODELS with analogic gauge 0.001 mm graduations:
C360 KIT STRAIN GAUGE, 100 mm measuring length.
C360-01 KIT STRAIN GAUGE, 200 mm measuring length.

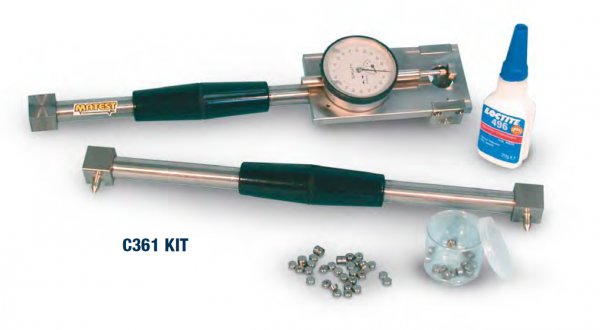

C361 KIT STRAIN GAUGE, 300 mm measuring length.
C361-01 STRAIN GAUGE, 600 mm measuring length.

MODELS with digital gauge, battery feeded, with reading values in
mm (sens. 0.001 mm) and in inch (sens. 0.0001”).
Complete with battery and RS232 connector to PC.

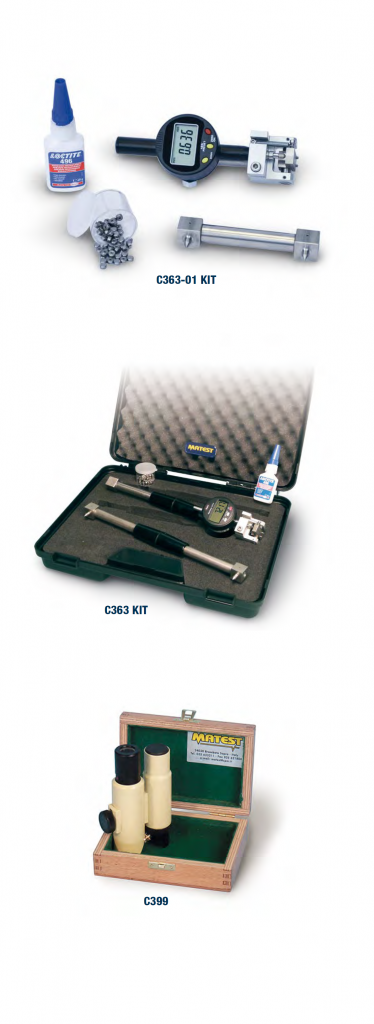

C363 KIT STRAIN GAUGE, 300 mm measuring length.
C363-01 KIT STRAIN GAUGE, 100 mm measuring length.
C363-02 KIT STRAIN GAUGE, 200 mm measuring length.
C363-03 STRAIN GAUGE, 600 mm measuring length.
ACCESSORY for C363 serie models
S382-13 CABLE to connect S382-01 and S383 to PC through
USB port for direct visualization and recording of the
measurement.

SPARES
C362-01 Datum disc (pack of 50)
C362-02 Adhesive compound.

C399
CRACK DETECTION MICROSCOPE
Used to measure crack width in concrete structures, by operating
via an adjustable light source.
High definition unit, provided by power batteries, carrying case.
The eyepiece scale can be turned through 360° to align with the
direction of the crack under detection.
Measuring range:
4 mm and div. 0.02 mm.
Magnification: x35
Weight: 600 g
