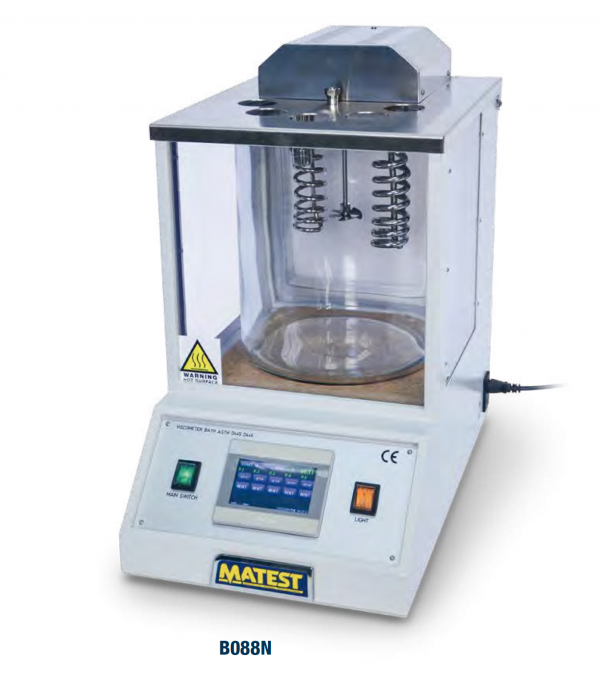

DYNAMIC VISCOSITY DETERMINATION B088N VISCOMETER BATH

Category:

STANDARDS: EN 12595 | ASTM D2170
This viscometer bath is used to determine both the Dynamic and
Kinematic viscosity of liquid asphalts, keeping the capillary type
viscometers at a uniform temperature.
Consisting of:
– Borosilicate glass container 15 liters capacity
– Additional tempered glass container
– Stainless steel base with insulating cork sheet
– Stainless steel control box with selector and digital temperature
reading
– Stainless steel lid with five holes for capillaries
Temperature range: room to 150 °C
Allows to simultaneous temperate five capillaries.
Viscometers and thermometers are not included.
Power supply: 230V 1ph 50-60Hz 1200W
Dimensions: 350x350x520 mm
Weight: 15 kg approx.

MAIN FEATURES
Extremely precision (± 0.02 °C stability).
4.3” LCD display.
PID controller.
PT 100A probe included.
Overheating alarm system and security water level.
Motor stirrer, heating element, cooling coil.

ACCESSORIES
B088-03N SILICONE OIL, type 50 cSt, for tests with B088N bath
with temperature range: 100 °C up to 200 °C.
Can of 20 kg
B088-05N HOLDER, stainless steel made, for Cannon-Manning
and Asphalt Institute viscometers
B088-06N HOLDER, stainless steel made, for Cannon-Fenske
viscometers
B088-07N HOLDER, stainless steel made, for Zeitfuchs cross-arm
viscometers
B088-08N HOLDER, stainless steel made, for Cannon BS reverse
flow viscometers
B088-12 KINEMATIC VISCOSITY THERMOMETER,
range 58.5 to 61.5 °C, type ASTM 47C
B088-13 KINEMATIC VISCOSITY THERMOMETER,
range 133.5 to 136.5 °C, type ASTM 110C

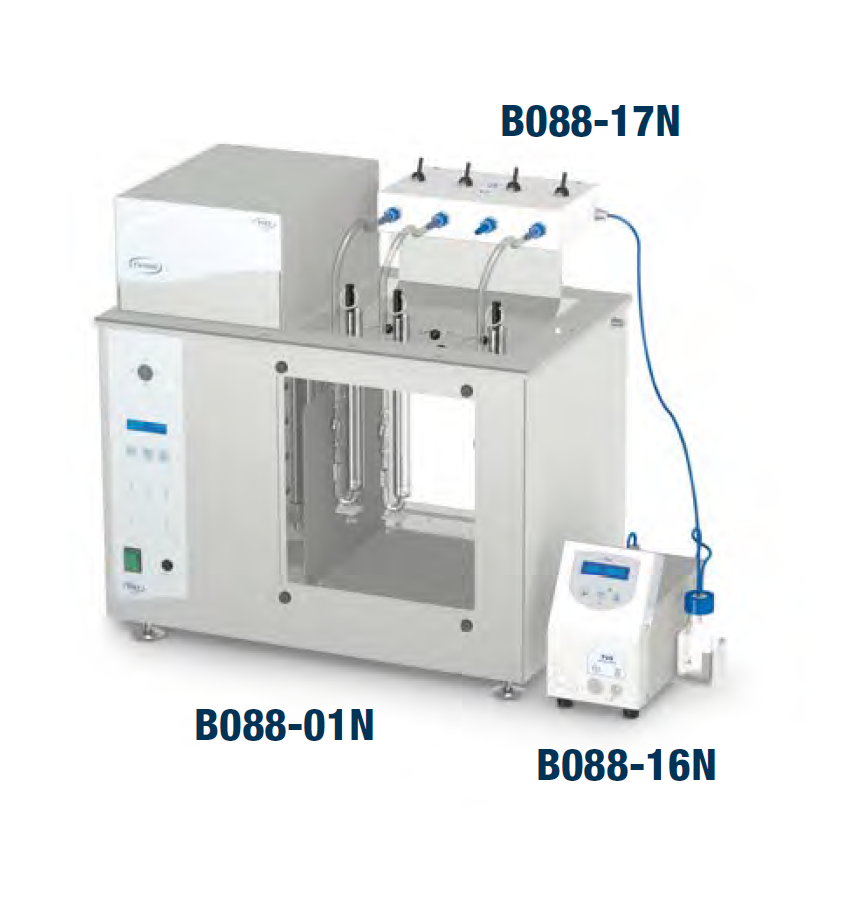

B088-01N
VACUUM VISCOMETER BATH
STANDARDS: EN 12596 | ASTM D2171 | AASHTO T202 | IP 222
This Vacuum Viscometer Bath is specially designed for tests that
require ultra – precise temperature and vacuum control, or processes
that need to be followed visually. All wetted parts are made of stainless
steel, providing resistance against all usual bath fluids. The bath
can be operated from ambient +5 (with a cooling system) up to +230
°C (41…446 °F). The set point can be set in steps of 0.01°C. The
system overall accuracy is within ± 0.01 °C. After the temperature
control is stable, the offset can even be adjusted with± 0.005 °C.
The Bath is already equipped with the digital vacuum controller, the
vacuum manifold to offer 4 positions and all tubing to perform the
test. This system further offers high precision and feedback regulation
on the vacuum, within 0,5 mm Hg (or mBar) of its set point.
Power supply: 230V, 50-60Hz
Dimensions: 720 x 400 x 590 mm
Weight: 50 Kg approx.
TECHNICAL SPECIFICATIONS
– Temperature Range: Ambient to 230°C;
– Temperature Stability: ± 0.01°C;
– Bath Volume: 40 litres;
– Pressure Range:
30 to 430 mBar
(negative pressure);
– Pressure Accuracy:
± 0.5 mBar;
– Digital Vacuum Controller;
– 4 viscometer positions;
– Selectable readout via
setup: mm Hg, mBar, PSI
SPARES
B088-16N Vacuum pressure regulator, for precise control during
test. 230 V, 50-60 Hz
B088-17N Vacuum manifold, to obtain vacuum to the viscometers
introduced into the bath
