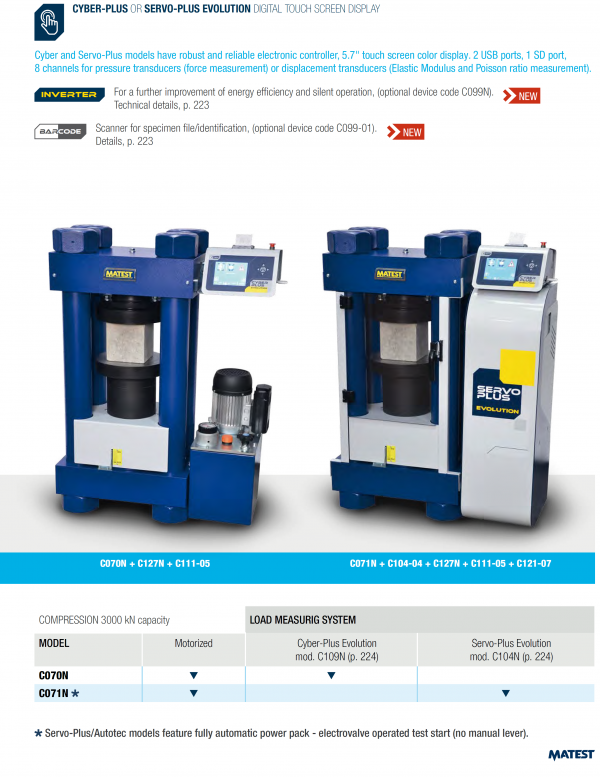

COMPRESSION TESTING MACHINE HIGH-END MODELS TO TEST CUBES UP TO 200 MM SIDE AND CYLINDERS UP TO Ø 160X320 MM

Category:

STANDARDS: ASTM C39 | AASHTO T22 | NF P18-411 | BS 1610 | GOST 10180-2012      3000 KN CAPACITY

ACCESSORIES FOR 3000 kN MACHINES FROM MOD. C068 TO C071N

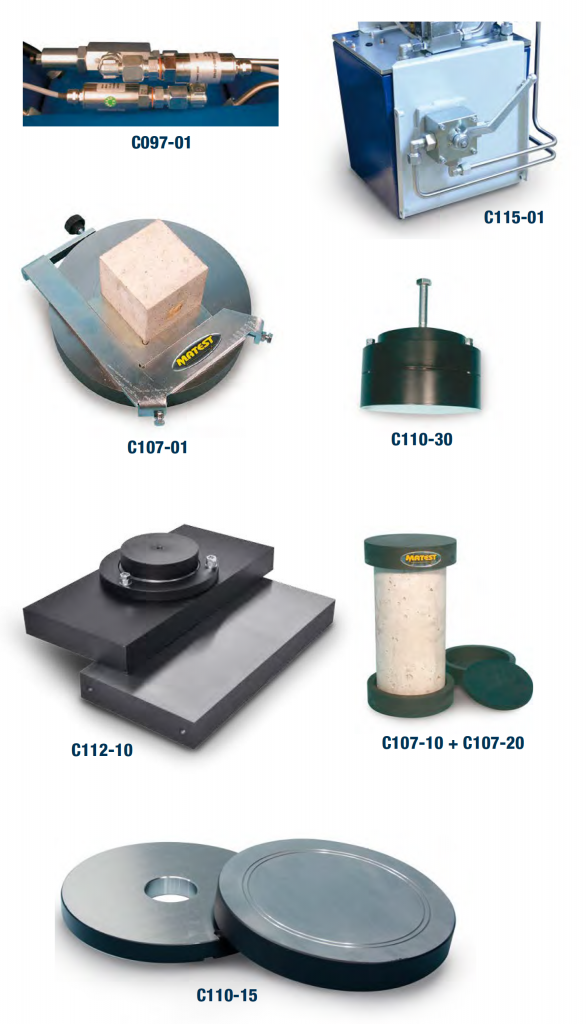

C111-31 DISTANCE PIECE, 20 mm high for cylinders Ø 150×300 mm
C111-04 DISTANCE PIECE, 126 mm high for cubes 200 mm side
C111-05 DISTANCE PIECES, 126+50 mm high for cubes 200 and
150 mm side
C111-06 DISTANCE PIECES 126+50+50 mm high for cubes 200,
150 and 100 mm side
C111-07 + C111-31 DISTANCE PIECES, high 50+50+20 mm for
cylinders Ø 100×200 mm
C111-22 DISTANCE PIECE, 50 mm high
C110-15 LOWER COMPRESSION PLATEN, Ø 216×40 mm, hardened
and rectified to test cubes 100 and 150 mm, as an
alternative to the standard platen Ø 278 mm
Technical details: see p. 319
Note: the cylinders Ø 160×320 mm do not require any distance
piece.

C112-10 UPPER+LOWER LARGE COMPRESSION PLATENS
245x510x55 mm complete with SEAT BALL to test
also blocks.
C127N GRAPHIC PRINTER on thermo-paper on board for digital
models
C127-11 THERMO-PAPER roll for printer (pack of 10 rolls)
C121-07 SAFETY GUARDS, polycarbonate, with hinges and lock,
to CE Directive. p. 317
C121-51 STOP SWITCH on safety guard. See p. 319
C107-10 CAPPING RETAINERS (set of two) for cylinders
Ø 150 mm and 6”. Other models: see p. 316
C107-12 CAPPING RETAINERS (set of two) for cylinders Ø 160 mm
C107-20 NEOPRENE PADS (set of two) for cylinders
Ø 150mm 60 shore A
C107-25 NEOPRENE PADS (set of two) for cylinders Ø 160 mm
60 shore A. Other models: see p. 316

C110-30 UPPER COMPRESSION PLATEN+SPHERICAL SEAT, to fix
on the testing machine, in replacement of the standard
platen + seat to obtain an increased vertical clearance of
the testing chamber and to meet the
ASTM C39, C1231 and AASHTO T22, T851
Platen dimensions: Ø 165×30 mm
Weight: 10 kg approx.
Technical details: see p. 316
C115-01 TWO WAY HYDRAULIC VALVE, connected to the motorized
pumping unit of the machine to activate a second
frame. Technical details: see p. 318

C097-01 DUAL LOW CAPACITY DIGITAL RANGE, complete with
appropriate pressure transducer, only for digital
machines. Recommended range 0-250kN.
Technical details: see p. 313

C097-05 CALIBRATION CLASS 1, starting from 1% of the full
range. With a special calibration procedure it is possible
to grant Class 1 practically on the full range of the compression
machine. Applicable only on digital machines.

C107-01 AUTO-CENTERING DEVICE for cubes 100 and 150 mm
side, and cylinders Ø 100 and 150 mm.
Technical details: see p. 316

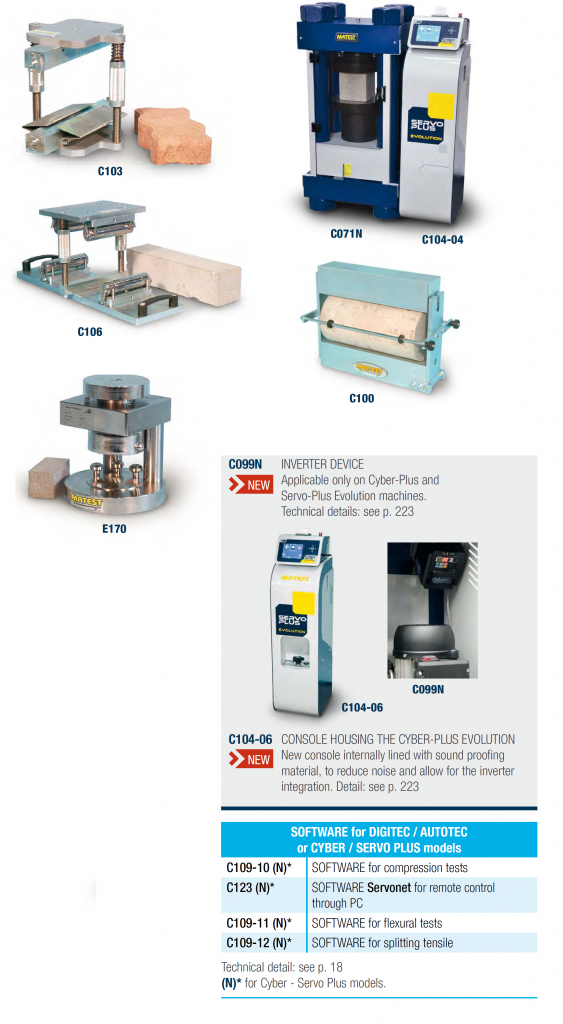

C100 SPLITTING TENSILE test device for cylinders.
EN 12390-6 | ASTM C496
Technical details and other models: see p. 314
C100
C103 SPLITTING TENSILE test device for self blocking pavers
and cubes. EN 1338, 12390-6.
Technical details: see p. 314
C106 FLEXURAL TEST DEVICE for concrete beams.
EN 12390-5 | ASTM C78, C293 | AASHTO T97
Technical details: see p. 315
E170 COMPRESSION DEVICE to test cement specimens
40.1×40 mm EN 196 | ASTM C349
Technical details and other models: see p. 315
C126 BENCH to hold the compression machine. See p. 317

C104-04 CONSOLE HOUSING THE SERVO-PLUS EVOLUTION
The pump assembly lined with sound proofing material
for noise reduction and the digital system are encased to
enhance the design and look of the machine.
Technical details: see p. 314
